Olympus Concrete Deck Truck Scales with DC Digital Load Cells

$0.00

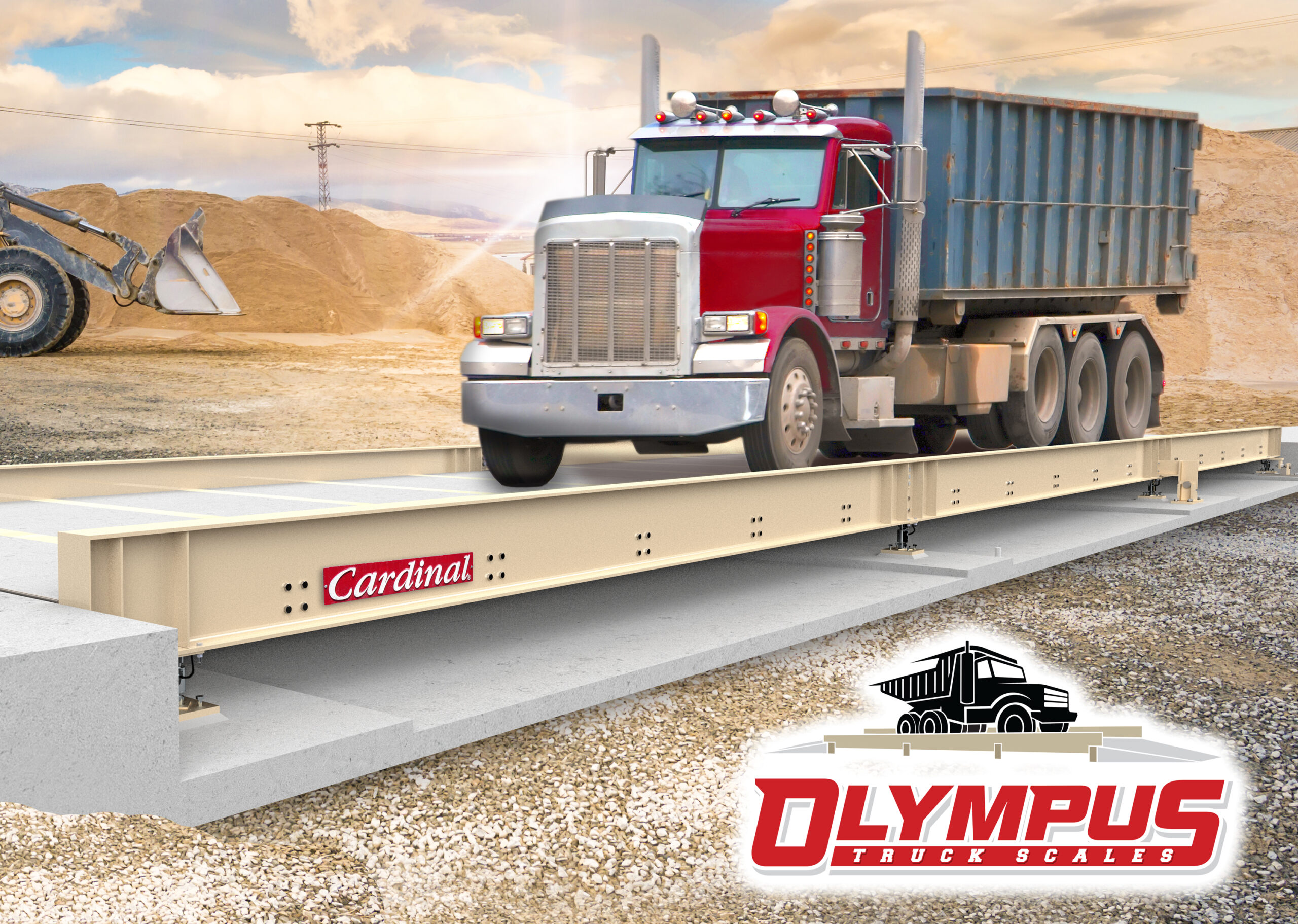

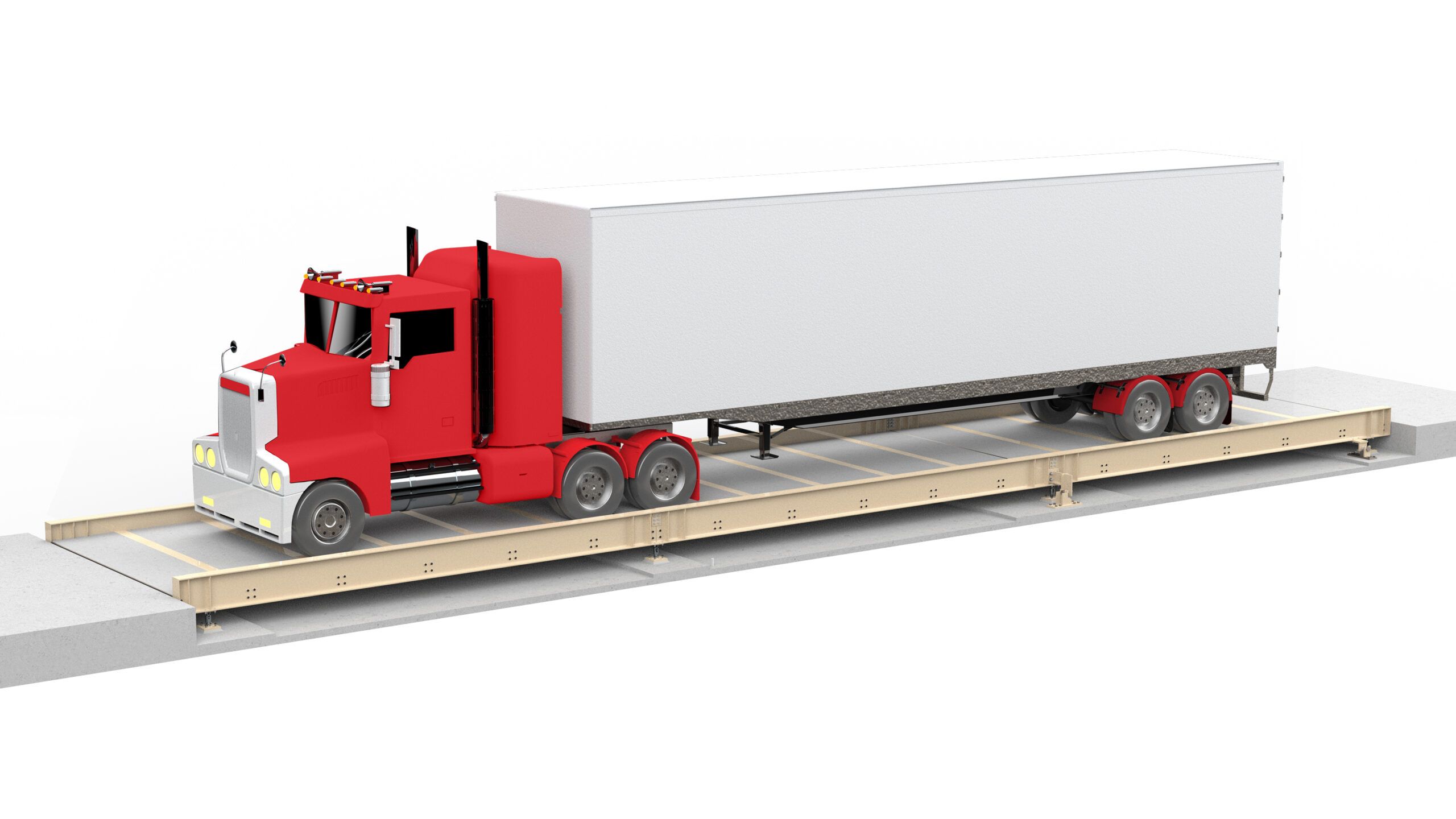

Cardinal Scale’s Olympus concrete deck low-profile side rail truck scales are engineered and manufactured for ease of shipment to job sites around the world with bolt-together installation that will provide years of reliable, accurate truckload weighing. These 28-inch/70-cm-high, low-profile side rail scales are designed to minimize costs associated with delivery to job sites. The Olympus DC series models include DC series SmartCell digital load cells, which are stainless steel compression load cells with an IP69K waterproof rating. No junction box is necessary. iSite Cloud-based remote monitoring is included.

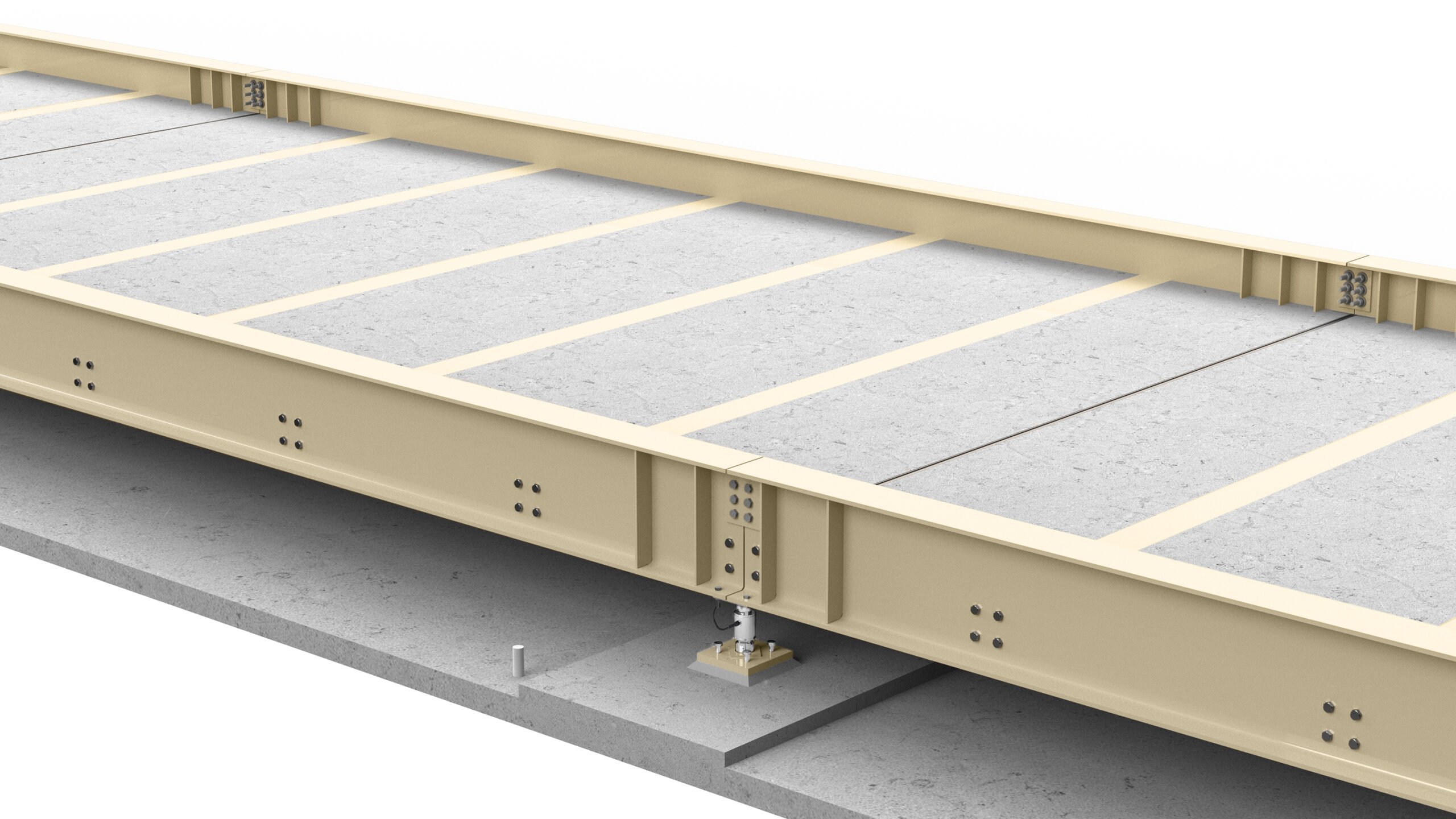

Cardinal Scale’s NTEP and OIML legal-for-trade-certified Olympus truck scales bolt together for the field pouring of concrete. The 18-inch/455-mm-high I-beam, hip-style construction features a 8-inch/200-mm concrete deck (concrete not included). Olympus truck scales stand up to heavy truck loads with their wide-flange I-beams utilized throughout the weighbridge that add rigidity to each side of the truck scale and serve as guide rails for safe truck loading.

All Cardinal truck scales go through an extensive 3-stage washing system at the factory, which washes the scale completely to remove all mill scale and surface imperfections. The weighbridges are then powder-coated with zinc-enriched anti-corrosion paint and baked in an industrial oven at 450° F degrees for two hours. This baked-on powder paint provides a weatherproof UV-protected finish due to the maximum coating adhesion preparation.

Olympus truck scales include the foundation kit, standard rodent protection, and bolt-down anchors. Anti-corrosion industrial tan powder coat paint is standard on the weighbridges. Rebar and deck sheeting is not included.​

Download product PDF
Category:

Features

  • Side Rail Guidance for Driver, Truck, and Load Safety
  • NTEP and OIML Legal-for-Trade Certified up to 14 ft. Wide
  • Bolt-Together Design for Overseas Shipments
  • Standard Platform Lengths Available from 10 ft. up to 100 ft. Long
  • Standard Widths Available: 10, 11, 12, and 14 ft. Wide
  • Four Different Load Cell Types Available to Choose From
  • Available with Your Choice of Analog, Digital or Hydraulic Load Cells
  • Overall Scale Capacities Available Ranging from 60 Tons up to 100 Tons
  • Heavyweight 30-Ton Concentrated Load Capacity (CLC)
  • Built-in I-beam Guide Rails
  • Pour-in-Place Concrete Deck Weighbridges
  • Long-Lasting Baked-On Tan Powder Coat Paint
  • SmartCell DC Series Digital Compression Load Cells for Models Listed on this Page
  • Anti-Rotation Mounting Load Cell Stands
  • IP69K Waterproof Load Cell Rating
  • Easy Access to Load Cells
  • Stainless Steel Compression Load Cells
  • iSite Cloud-Based Remote Monitoring Included
  • No Junction Box Necessary

Specifications

Overall Capacities: From 60 tons up to 100 tons standard
Concentrated Load Capacity: 30 tons
Platform Lengths: From 10 ft up to 100 ft long standard
Platform Widths: 10, 11, 12, and 14 ft widths available
Load Cells: DC series SmartCell digital compression stainless steel waterproof load cells
Paint: Baked-on, heavy-duty polyester anti-corrosion tan powder paint
Concrete: 8 in / 200 mm high pour-in-place concrete deck (concrete not included)
I-beam Guide Rail Height: 18 in / 455 mm high hip-style I-beam construction
Approvals: NTEP and OIML legal for trade certified
Includes: iSite Cloud-based remote monitoring, foundation kit, standard rodent protection, checking, and bolt-down anchors. Rebar and deck sheeting is not included.
Other Load Cells Available to Choose From: Cardinal Scale model AC, SCBD, and SST load cells
Warranty: Standard 5-year bridge-and-below warranty
Country of Origin: USA

Models

1032208 Truck Scale, Olympus, 8″ Concrete Deck, 10′ X 11′, 30 ton CLC, 60 Ton Capacity, DC Load Cells Call For Pricing
1032209 Truck Scale, Olympus, 8″ Concrete Deck, 20′ X 11′, 30 ton CLC, 60 Ton Capacity, DC Load Cells Call For Pricing
1032210 Truck Scale, Olympus, 8″ Concrete Deck, 40′ X 11′, 30 ton CLC, 90 Ton Capacity, DC Load Cells Call For Pricing
1032211 Truck Scale, Olympus, 8″ Concrete Deck, 47′ X 11′, 30 ton CLC, 90 Ton Capacity, DC Load Cells Call For Pricing
1032212 Truck Scale, Olympus, 8″ Concrete Deck, 60′ X 11′, 30 ton CLC, 100 Ton Capacity, DC Load Cells Call For Pricing
1032213 Truck Scale, Olympus, 8″ Concrete Deck, 70′ X 11′, 30 ton CLC, 100 Ton Capacity, DC Load Cells Call For Pricing
1032214 Truck Scale, Olympus, 8″ Concrete Deck, 80′ X 11′, 30 ton CLC, 100 Ton Capacity, DC Load Cells Call For Pricing
1032215 Truck Scale, Olympus, 8″ Concrete Deck, 100′ X 11′, 30 ton CLC, 100 Ton Capacity, DC Load Cells Call For Pricing
1032216 Truck Scale, Olympus, 8″ Concrete Deck, 10′ X 12′, 30 ton CLC, 60 Ton Capacity, DC Load Cells Call For Pricing
1032217 Truck Scale, Olympus, 8″ Concrete Deck, 20′ X 12′, 30 ton CLC, 60 Ton Capacity, DC Load Cells Call For Pricing
1032218 Truck Scale, Olympus, 8″ Concrete Deck, 40′ X 12′, 30 ton CLC, 90 Ton Capacity, DC Load Cells Call For Pricing
1032219 Truck Scale, Olympus, 8″ Concrete Deck, 47′ X 12′, 30 ton CLC, 90 Ton Capacity, DC Load Cells Call For Pricing
1032220 Truck Scale, Olympus, 8″ Concrete Deck, 60′ X 12′, 30 ton CLC, 100 Ton Capacity, DC Load Cells Call For Pricing
1032221 Truck Scale, Olympus, 8″ Concrete Deck, 70′ X 12′, 30 ton CLC, 100 Ton Capacity, DC Load Cells Call For Pricing
1032222 Truck Scale, Olympus, 8″ Concrete Deck, 80′ X 12′, 30 ton CLC, 100 Ton Capacity, DC Load Cells Call For Pricing
1032223 Truck Scale, Olympus, 8″ Concrete Deck, 100′ X 12′, 30 ton CLC, 100 Ton Capacity, DC Load Cells Call For Pricing
1032224 Truck Scale, Olympus, 8″ Concrete Deck, 10′ X 14′, 30 ton CLC, 60 Ton Capacity, DC Load Cells Call For Pricing
1032225 Truck Scale, Olympus, 8″ Concrete Deck, 20′ X 14′, 30 ton CLC, 60 Ton Capacity, DC Load Cells Call For Pricing
1032226 Truck Scale, Olympus, 8″ Concrete Deck, 40′ X 14′, 30 ton CLC, 90 Ton Capacity, DC Load Cells Call For Pricing
1032227 Truck Scale, Olympus, 8″ Concrete Deck, 47′ X 14′, 30 ton CLC, 90 Ton Capacity, DC Load Cells Call For Pricing
1032228 Truck Scale, Olympus, 8″ Concrete Deck, 60′ X 14′, 30 ton CLC, 100 Ton Capacity, DC Load Cells Call For Pricing
1032229 Truck Scale, Olympus, 8″ Concrete Deck, 70′ X 14′, 30 ton CLC, 100 Ton Capacity, DC Load Cells Call For Pricing
1032230 Truck Scale, Olympus, 8″ Concrete Deck, 80′ X 14′, 30 ton CLC, 100 Ton Capacity, DC Load Cells Call For Pricing
1032231 Truck Scale, Olympus, 8″ Concrete Deck, 100′ X 14′, 30 ton CLC, 100 Ton Capacity, DC Load Cells Call For Pricing
1032258 Truck Scale, Olympus, 8″ Concrete Deck, 10′ X 11′, 30 ton CLC, 60 Ton Capacity, DC Laod Cells Call For Pricing
1032259 Truck Scale, Olympus, 8″ Concrete Deck, 20′ X 11′, 30 ton CLC, 60 Ton Capacity, DC Laod Cells Call For Pricing
1032260 Truck Scale, Olympus, 8″ Concrete Deck, 40′ X 11′, 30 ton CLC, 90 Ton Capacity, DC Laod Cells Call For Pricing
1032261 Truck Scale, Olympus, 8″ Concrete Deck, 47′ X 11′, 30 ton CLC, 90 Ton Capacity, DC Laod Cells Call For Pricing
1032262 Truck Scale, Olympus, 8″ Concrete Deck, 60′ X 11′, 30 ton CLC, 100 Ton Capacity, DC Laod Cells Call For Pricing
1032263 Truck Scale, Olympus, 8″ Concrete Deck, 70′ X 11′, 30 ton CLC, 100 Ton Capacity, DC Laod Cells Call For Pricing
1032264 Truck Scale, Olympus, 8″ Concrete Deck, 80′ X 11′, 30 ton CLC, 100 Ton Capacity, DC Laod Cells Call For Pricing
1032265 Truck Scale, Olympus, 8″ Concrete Deck, 100′ X 11′, 30 ton CLC, 100 Ton Capacity, DC Laod Cells Call For Pricing
1032266 Truck Scale, Olympus, 8″ Concrete Deck, 10′ X 12′, 30 ton CLC, 60 Ton Capacity, DC Laod Cells Call For Pricing
1032267 Truck Scale, Olympus, 8″ Concrete Deck, 20′ X 12′, 30 ton CLC, 60 Ton Capacity, DC Laod Cells Call For Pricing
1032268 Truck Scale, Olympus, 8″ Concrete Deck, 40′ X 12′, 30 ton CLC, 90 Ton Capacity, DC Laod Cells Call For Pricing
1032269 Truck Scale, Olympus, 8″ Concrete Deck, 47′ X 12′, 30 ton CLC, 90 Ton Capacity, DC Laod Cells Call For Pricing
1032270 Truck Scale, Olympus, 8″ Concrete Deck, 60′ X 12′, 30 ton CLC, 100 Ton Capacity, DC Laod Cells Call For Pricing
1032271 Truck Scale, Olympus, 8″ Concrete Deck, 70′ X 12′, 30 ton CLC, 100 Ton Capacity, DC Laod Cells Call For Pricing
1032272 Truck Scale, Olympus, 8″ Concrete Deck, 80′ X 12′, 30 ton CLC, 100 Ton Capacity, DC Laod Cells Call For Pricing
1032273 Truck Scale, Olympus, 8″ Concrete Deck, 100′ X 12′, 30 ton CLC, 100 Ton Capacity, DC Laod Cells Call For Pricing
1032274 Truck Scale, Olympus, 8″ Concrete Deck, 10′ X 14′, 30 ton CLC, 60 Ton Capacity, DC Laod Cells Call For Pricing
1032275 Truck Scale, Olympus, 8″ Concrete Deck, 20′ X 14′, 30 ton CLC, 60 Ton Capacity, DC Laod Cells Call For Pricing
1032276 Truck Scale, Olympus, 8″ Concrete Deck, 40′ X 14′, 30 ton CLC, 90 Ton Capacity, DC Laod Cells Call For Pricing
1032277 Truck Scale, Olympus, 8″ Concrete Deck, 47′ X 14′, 30 ton CLC, 90 Ton Capacity, DC Laod Cells Call For Pricing
1032278 Truck Scale, Olympus, 8″ Concrete Deck, 60′ X 14′, 30 ton CLC, 100 Ton Capacity, DC Laod Cells Call For Pricing
1032279 Truck Scale, Olympus, 8″ Concrete Deck, 70′ X 14′, 30 ton CLC, 100 Ton Capacity, DC Laod Cells Call For Pricing
1032280 Truck Scale, Olympus, 8″ Concrete Deck, 80′ X 14′, 30 ton CLC, 100 Ton Capacity, DC Laod Cells Call For Pricing
1032281 Truck Scale, Olympus, 8″ Concrete Deck, 100′ X 14′, 30 ton CLC, 100 Ton Capacity, DC Laod Cells Call For Pricing
1032200 Truck Scale, Olympus, 8″ Concrete Deck, 10′ X 10′, 30 ton CLC, 60 Ton Capacity, DC Load Cells Call For Pricing
1032201 Truck Scale, Olympus, 8″ Concrete Deck, 20′ X 10′, 30 ton CLC, 60 Ton Capacity, DC Load Cells Call For Pricing
1032202 Truck Scale, Olympus, 8″ Concrete Deck, 40′ X 10′, 30 ton CLC, 90 Ton Capacity, DC Load Cells Call For Pricing
1032203 Truck Scale, Olympus, 8″ Concrete Deck, 47′ X 10′, 30 ton CLC, 90 Ton Capacity, DC Load Cells Call For Pricing
1032204 Truck Scale, Olympus, 8″ Concrete Deck, 60′ X 10′, 30 ton CLC, 100 Ton Capacity, DC Load Cells Call For Pricing
1032205 Truck Scale, Olympus, 8″ Concrete Deck, 70′ X 10′, 30 ton CLC, 100 Ton Capacity, DC Load Cells Call For Pricing
1032206 Truck Scale, Olympus, 8″ Concrete Deck, 80′ X 10′, 30 ton CLC, 100 Ton Capacity, DC Load Cells Call For Pricing
1032207 Truck Scale, Olympus, 8″ Concrete Deck, 100′ X 10′, 30 ton CLC, 100 Ton Capacity, DC Load Cells Call For Pricing
1032250 Truck Scale, Olympus, 8″ Concrete Deck, 10′ X 10′, 30 ton CLC, 60 Ton Capacity, DC Laod Cells Call For Pricing
1032251 Truck Scale, Olympus, 8″ Concrete Deck, 20′ X 10′, 30 ton CLC, 60 Ton Capacity, DC Laod Cells Call For Pricing
1032252 Truck Scale, Olympus, 8″ Concrete Deck, 40′ X 10′, 30 ton CLC, 90 Ton Capacity, DC Laod Cells Call For Pricing
1032253 Truck Scale, Olympus, 8″ Concrete Deck, 47′ X 10′, 30 ton CLC, 90 Ton Capacity, DC Laod Cells Call For Pricing
1032254 Truck Scale, Olympus, 8″ Concrete Deck, 60′ X 10′, 30 ton CLC, 100 Ton Capacity, DC Laod Cells Call For Pricing
1032255 Truck Scale, Olympus, 8″ Concrete Deck, 70′ X 10′, 30 ton CLC, 100 Ton Capacity, DC Laod Cells Call For Pricing
1032256 Truck Scale, Olympus, 8″ Concrete Deck, 80′ X 10′, 30 ton CLC, 100 Ton Capacity, DC Laod Cells Call For Pricing
1032257 Truck Scale, Olympus, 8″ Concrete Deck, 100′ X 10′, 30 ton CLC, 100 Ton Capacity, DC Laod Cells Call For Pricing
