Olympus Concrete Deck Truck Scales with SCBD Digital Load Cells

$0.00

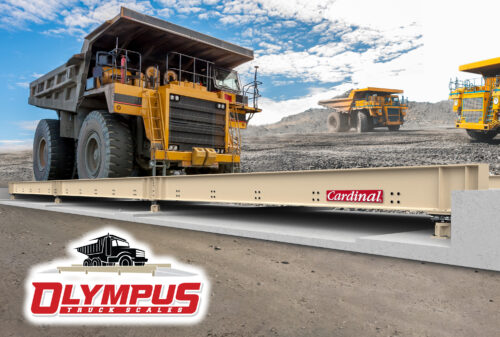

Cardinal Scale’s NTEP and OIML legal-for-trade-certified Olympus concrete deck low-profile side rail truck scales are engineered and manufactured for ease of shipment to job sites around the world with bolt-together installation that will provide years of reliable, accurate truckload weighing. These 28-inch/70-cm-high, low-profile side rail scales are designed to minimize costs associated with delivery to job sites. The Olympus SCBD series models include SCBD SmartCell digital load cells, which are stainless steel double-ended shear beam load cells with an IP69K waterproof rating and are mounted on the axis frictionless centering system. No junction box is necessary. iSite Cloud-based remote monitoring is included.

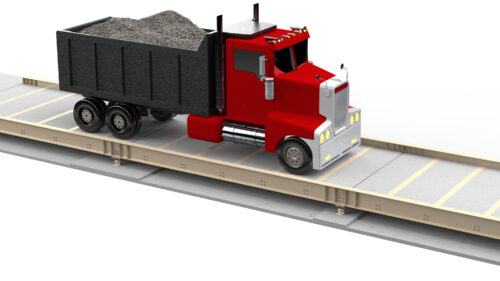

Cardinal Scale’s Olympus truck scales bolt together for the field pouring of concrete. The 18-inch/455-mm-high I-beam, hip-style construction features a 8-inch/200-mm concrete deck (concrete not included). Olympus truck scales stand up to heavy truck loads with their wide-flange I-beams utilized throughout the weighbridge that add rigidity to each side of the truck scale and serve as guide rails for safe truck loading.

All Cardinal truck scales go through an extensive 3-stage washing system at the factory, which washes the scale completely to remove all mill scale and surface imperfections. The weighbridges are then powder-coated with zinc-enriched anti-corrosion paint and baked in an industrial oven at 450° F degrees for two hours. This baked-on powder paint provides a weatherproof UV-protected finish due to the maximum coating adhesion preparation.

Olympus truck scales include the foundation kit, standard rodent protection, and bolt-down anchors. Anti-corrosion industrial tan powder coat paint is standard on the weighbridges. Rebar and deck sheeting is not included.​

Download product PDF
Category:

Features

  • Side Rail Guidance for Driver, Truck, and Load Safety
  • NTEP and OIML Legal-for-Trade Certified up to 14 ft. Wide
  • Bolt-Together Design for Overseas Shipments
  • Standard Platform Lengths Available from 10 ft. up to 100 ft. Long
  • Standard Widths Available: 10, 11, 12, and 14 ft. Wide
  • Four Different Load Cell Types Available to Choose From
  • Available with Your Choice of Analog, Digital or Hydraulic Load Cells
  • Overall Scale Capacities Available Ranging from 60 Tons up to 100 Tons
  • Heavyweight 30-Ton Concentrated Load Capacity (CLC)
  • Built-in I-beam Guide Rails
  • Pour-in-Place Concrete Deck Weighbridges
  • Long-Lasting Baked-On Tan Powder Coat Paint

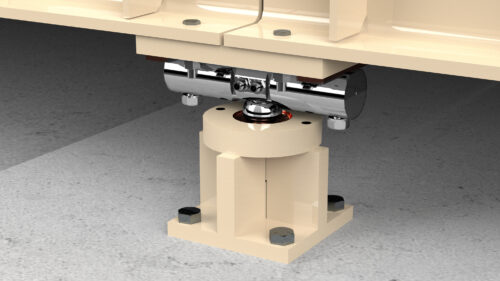

  • SmartCell SCBD Series Digital Double-Ended Shear Beam Load Cells for Models Listed on this Page
  • axis Frictionless Centering System Load Cell Stands
  • IP69K Waterproof Load Cell Rating
  • Easy Access to Load Cells
  • Stainless Steel Compression Load Cells
  • iSite Cloud-Based Remote Monitoring Included
  • No Junction Box Necessary

Specifications

Overall Capacities: From 60 tons up to 100 tons standard
Concentrated Load Capacity: 30 tons
Platform Lengths: From 10 ft up to 100 ft long standard
Platform Widths: 10, 11, 12, and 14 ft widths available
Load Cells: SCBD series SmartCell digital double-ended shear beam stainless steel waterproof load cells
Paint: Baked-on, heavy-duty polyester anti-corrosion tan powder paint
Concrete: 8 in / 200 mm high pour-in-place concrete deck (concrete not included)
I-beam Guide Rail Height: 18 in / 455 mm high hip-style I-beam construction
Approvals: NTEP and OIML legal for trade certified
Includes: iSite Cloud-based remote monitoring, foundation kit, standard rodent protection, checking, and bolt-down anchors. Rebar and deck sheeting is not included.
Other Load Cells Available to Choose From: Cardinal Scale model AC, DC, and SST load cells
Warranty: Standard 5-year bridge-and-below warranty
Country of Origin: USA

Models

1032308 Truck Scale, Olympus, 8″ Concrete Deck, 10′ X 11′, 30 ton CLC, 60 Ton Capacity, SCBD Smart Cells Call For Pricing
1032309 Truck Scale, Olympus, 8″ Concrete Deck, 20′ X 11′, 30 ton CLC, 60 Ton Capacity, SCBD Smart Cells Call For Pricing
1032310 Truck Scale, Olympus, 8″ Concrete Deck, 40′ X 11′, 30 ton CLC, 90 Ton Capacity, SCBD Smart Cells Call For Pricing
1032311 Truck Scale, Olympus, 8″ Concrete Deck, 47′ X 11′, 30 ton CLC, 90 Ton Capacity, SCBD Smart Cells Call For Pricing
1032312 Truck Scale, Olympus, 8″ Concrete Deck, 60′ X 11′, 30 ton CLC, 100 Ton Capacity, SCBD Smart Cells Call For Pricing
1032313 Truck Scale, Olympus, 8″ Concrete Deck, 70′ X 11′, 30 ton CLC, 100 Ton Capacity, SCBD Smart Cells Call For Pricing
1032314 Truck Scale, Olympus, 8″ Concrete Deck, 80′ X 11′, 30 ton CLC, 100 Ton Capacity, SCBD Smart Cells Call For Pricing
1032315 Truck Scale, Olympus, 8″ Concrete Deck, 100′ X 11′, 30 ton CLC, 100 Ton Capacity, SCBD Smart Cells Call For Pricing
1032316 Truck Scale, Olympus, 8″ Concrete Deck, 10′ X 12′, 30 ton CLC, 60 Ton Capacity, SCBD Smart Cells Call For Pricing
1032317 Truck Scale, Olympus, 8″ Concrete Deck, 20′ X 12′, 30 ton CLC, 60 Ton Capacity, SCBD Smart Cells Call For Pricing
1032318 Truck Scale, Olympus, 8″ Concrete Deck, 40′ X 12′, 30 ton CLC, 90 Ton Capacity, SCBD Smart Cells Call For Pricing
1032319 Truck Scale, Olympus, 8″ Concrete Deck, 47′ X 12′, 30 ton CLC, 90 Ton Capacity, SCBD Smart Cells Call For Pricing
1032320 Truck Scale, Olympus, 8″ Concrete Deck, 60′ X 12′, 30 ton CLC, 100 Ton Capacity, SCBD Smart Cells Call For Pricing
1032321 Truck Scale, Olympus, 8″ Concrete Deck, 70′ X 12′, 30 ton CLC, 100 Ton Capacity, SCBD Smart Cells Call For Pricing
1032322 Truck Scale, Olympus, 8″ Concrete Deck, 80′ X 12′, 30 ton CLC, 100 Ton Capacity, SCBD Smart Cells Call For Pricing
1032323 Truck Scale, Olympus, 8″ Concrete Deck, 100′ X 12′, 30 ton CLC, 100 Ton Capacity, SCBD Smart Cells Call For Pricing
1032324 Truck Scale, Olympus, 8″ Concrete Deck, 10′ X 14′, 30 ton CLC, 60 Ton Capacity, SCBD Smart Cells Call For Pricing
1032325 Truck Scale, Olympus, 8″ Concrete Deck, 20′ X 14′, 30 ton CLC, 60 Ton Capacity, SCBD Smart Cells Call For Pricing
1032326 Truck Scale, Olympus, 8″ Concrete Deck, 40′ X 14′, 30 ton CLC, 90 Ton Capacity, SCBD Smart Cells Call For Pricing
1032327 Truck Scale, Olympus, 8″ Concrete Deck, 47′ X 14′, 30 ton CLC, 90 Ton Capacity, SCBD Smart Cells Call For Pricing
1032328 Truck Scale, Olympus, 8″ Concrete Deck, 60′ X 14′, 30 ton CLC, 100 Ton Capacity, SCBD Smart Cells Call For Pricing
1032329 Truck Scale, Olympus, 8″ Concrete Deck, 70′ X 14′, 30 ton CLC, 100 Ton Capacity, SCBD Smart Cells Call For Pricing
1032330 Truck Scale, Olympus, 8″ Concrete Deck, 80′ X 14′, 30 ton CLC, 100 Ton Capacity, SCBD Smart Cells Call For Pricing
1032331 Truck Scale, Olympus, 8″ Concrete Deck, 100′ X 14′, 30 ton CLC, 100 Ton Capacity, SCBD Smart Cells Call For Pricing
1032300 Truck Scale, Olympus, 8″ Concrete Deck, 10′ X 10′, 30 ton CLC, 60 Ton Capacity, SCBD Smart Cells Call For Pricing
1032301 Truck Scale, Olympus, 8″ Concrete Deck, 20′ X 10′, 30 ton CLC, 60 Ton Capacity, SCBD Smart Cells Call For Pricing
1032302 Truck Scale, Olympus, 8″ Concrete Deck, 40′ X 10′, 30 ton CLC, 90 Ton Capacity, SCBD Smart Cells Call For Pricing
1032303 Truck Scale, Olympus, 8″ Concrete Deck, 47′ X 10′, 30 ton CLC, 90 Ton Capacity, SCBD Smart Cells Call For Pricing
1032304 Truck Scale, Olympus, 8″ Concrete Deck, 60′ X 10′, 30 ton CLC, 100 Ton Capacity, SCBD Smart Cells Call For Pricing
1032305 Truck Scale, Olympus, 8″ Concrete Deck, 70′ X 10′, 30 ton CLC, 100 Ton Capacity, SCBD Smart Cells Call For Pricing
1032306 Truck Scale, Olympus, 8″ Concrete Deck, 80′ X 10′, 30 ton CLC, 100 Ton Capacity, SCBD Smart Cells Call For Pricing
1032307 Truck Scale, Olympus, 8″ Concrete Deck, 100′ X 10′, 30 ton CLC, 100 Ton Capacity, SCBD Smart Cells Call For Pricing
