Olympus Concrete Deck Truck Scales with SST Hydraulic Load Cells

$0.00

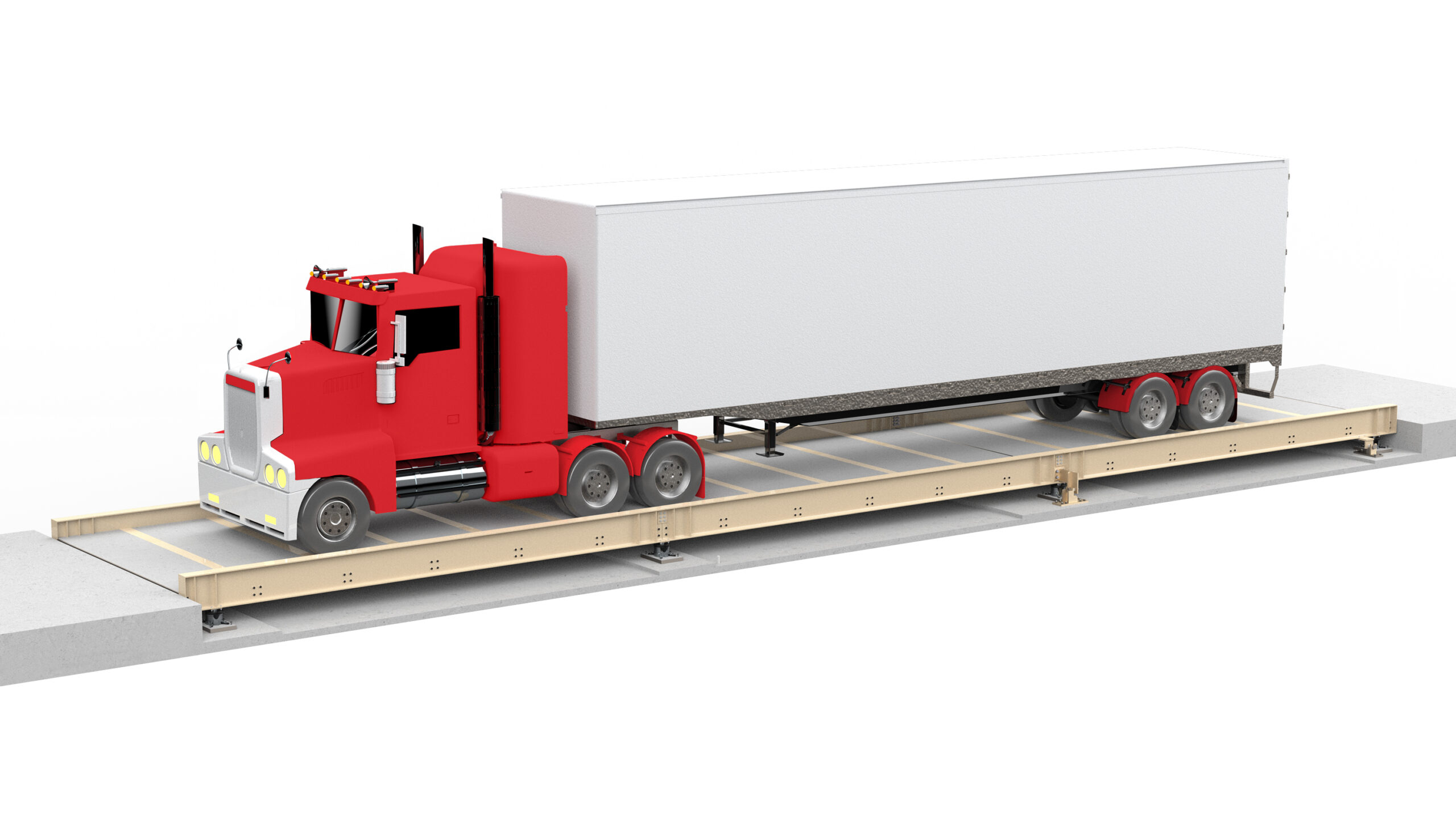

Cardinal Scale’s NTEP-legal-for-trade-certified Olympus SST series concrete deck low-profile side rail truck scales come with Guardian hydraulic load cells which are impervious against lightning strikes and water damage and come with a lifetime load cell warranty. Olympus vehicle scales are engineered and manufactured for ease of shipment to job sites around the world with bolt-together installation that will provide years of reliable, accurate truckload weighing. These 28-inch/70-cm-high, low-profile side rail scales are designed to minimize costs associated with delivery to job sites. Guardian hydraulic SST load cells are severe-duty rated for protection against electrical surges, lightning, and water damage.

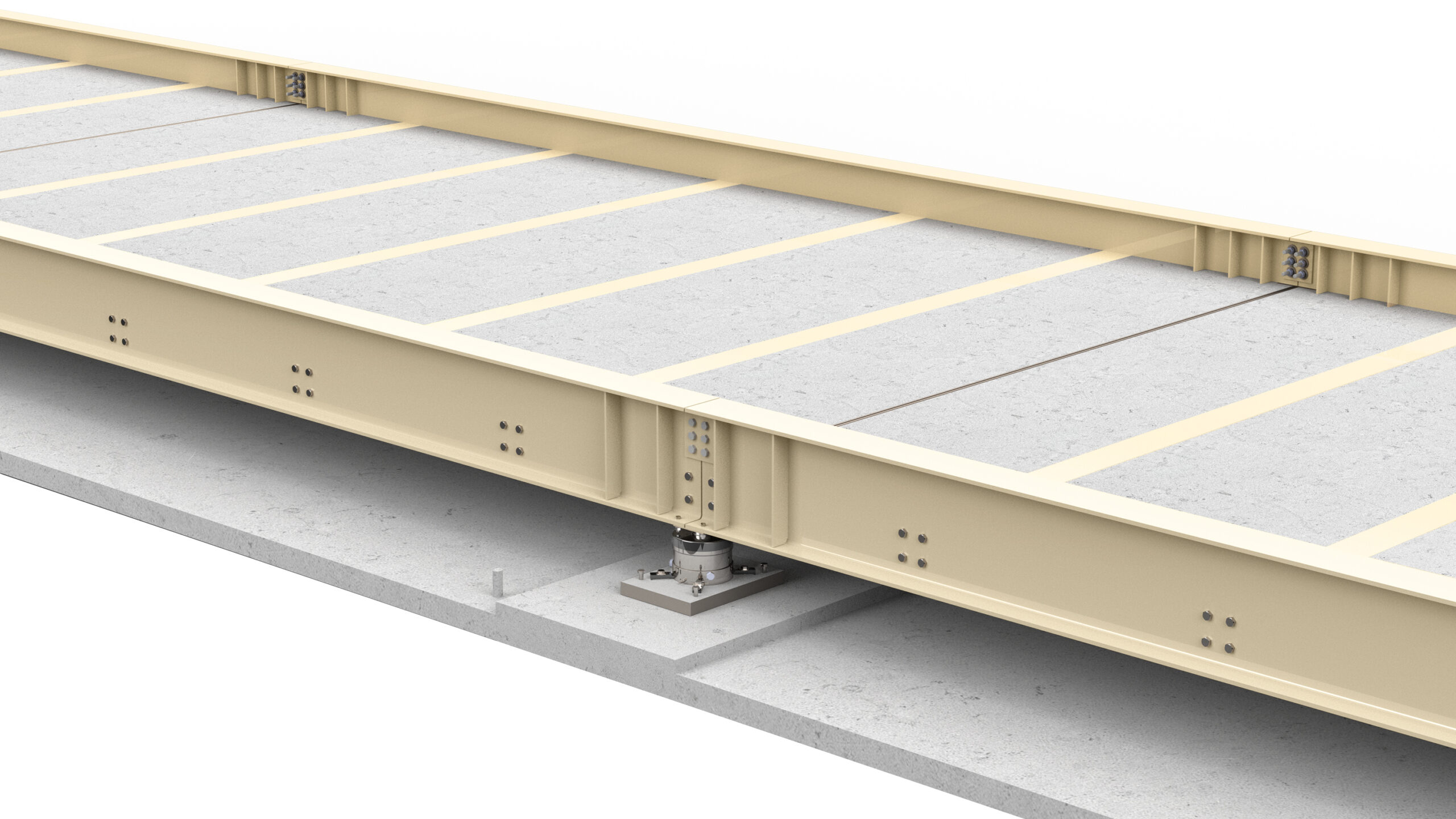

Cardinal Scale’s Olympus truck scales bolt together for the field pouring of concrete. The 18-inch/455-mm-high I-beam, hip-style construction features a 8-inch/200-mm concrete deck (concrete not included). Olympus truck scales stand up to heavy truck loads with their wide-flange I-beams utilized throughout the weighbridge that add rigidity to each side of the truck scale and serve as guide rails for safe truck loading.

All Cardinal truck scales go through an extensive 3-stage washing system at the factory, which washes the scale completely to remove all mill scale and surface imperfections. The weighbridges are then powder-coated with zinc-enriched anti-corrosion paint and baked in an industrial oven at 450° F degrees for two hours. This baked-on powder paint provides a weatherproof UV-protected finish due to the maximum coating adhesion preparation.

Olympus truck scales include the foundation kit, standard rodent protection, and bolt-down anchors. Anti-corrosion industrial tan powder coat paint is standard on the weighbridges. Rebar and deck sheeting is not included.

Download product PDF
Category:

Features

  • Side Rail Guidance for Driver, Truck, and Load Safety
  • NTEP Legal-for-Trade Certified up to 14 ft. Wide
  • Bolt-Together Design for Overseas Shipments
  • Standard Platform Lengths Available from 10 ft. up to 100 ft. Long
  • Standard Widths Available: 10, 11, 12, and 14 ft. Wide
  • Four Different Load Cell Types Available to Choose From
  • Available with Your Choice of Analog, Digital or Hydraulic Load Cells
  • Overall Scale Capacities Available Ranging from 60 Tons up to 100 Tons
  • Heavyweight 30-Ton Concentrated Load Capacity (CLC)
  • Built-in I-beam Guide Rails
  • Pour-in-Place Concrete Deck Weighbridges
  • Long-Lasting Baked-On Tan Powder Coat Paint
  • Guardian Hydraulic SST Series Load Cells for Models Listed on this Page
  • Hydraulic Load Cells are Impervious Against Lightning Strikes, Water Damage, and Electrical Surges
  • Lifetime Load Cell Warranty
  • IP68 Waterproof Load Cell Rating
  • Easy Access to Load Cells
  • Stainless Steel Compression Load Cells

Specifications

Overall Capacities: From 60 tons up to 100 tons standard
Concentrated Load Capacity: 30 tons
Platform Lengths: From 10 ft up to 100 ft long standard
Platform Widths: 10, 11, 12, and 14 ft widths available
Load Cells: Guardian hydraulic SST series compression stainless steel waterproof load cells
Load Cell Warranty: Lifetime
Paint: Baked-on, heavy-duty polyester anti-corrosion tan powder paint
Concrete: 8 in / 200 mm high pour-in-place concrete deck (concrete not included)
I-beam Guide Rail Height: 18 in / 455 mm high hip-style I-beam construction
Approvals: NTEP legal for trade certified
Includes: Foundation kit, standard rodent protection, checking, and bolt-down anchors. Rebar and deck sheeting is not included.
Other Load Cells Available to Choose From: Cardinal Scale model AC, DC, and SCBD load cells
Truck Scale Warranty: Standard 5-year bridge-and-below warranty
Country of Origin: USA

Models

1032350 Truck Scale, Olympus, 8″ Concrete Deck, 10′ X 10′, 30 ton CLC, 60 Ton Capacity, SST Hyd. Load Cells Call For Pricing
1032351 Truck Scale, Olympus, 8″ Concrete Deck, 20′ X 10′, 30 ton CLC, 60 Ton Capacity, SST Hyd. Load Cells Call For Pricing
1032352 Truck Scale, Olympus, 8″ Concrete Deck, 40′ X 10′, 30 ton CLC, 90 Ton Capacity, SST Hyd. Load Cells Call For Pricing
1032353 Truck Scale, Olympus, 8″ Concrete Deck, 47′ X 10′, 30 ton CLC, 90 Ton Capacity, SST Hyd. Load Cells Call For Pricing
1032354 Truck Scale, Olympus, 8″ Concrete Deck, 60′ X 10′, 30 ton CLC, 100 Ton Capacity, SST Hyd. Load Cells Call For Pricing
1032355 Truck Scale, Olympus, 8″ Concrete Deck, 70′ X 10′, 30 ton CLC, 100 Ton Capacity, SST Hyd. Load Cells Call For Pricing
1032356 Truck Scale, Olympus, 8″ Concrete Deck, 80′ X 10′, 30 ton CLC, 100 Ton Capacity, SST Hyd. Load Cells Call For Pricing
1032357 Truck Scale, Olympus, 8″ Concrete Deck, 100′ X 10′, 30 ton CLC, 100 Ton Capacity, SST Load Cells Call For Pricing
1032358 Truck Scale, Olympus, 8″ Concrete Deck, 10′ X 11′, 30 ton CLC, 60 Ton Capacity, SST Hyd. Load Cells Call For Pricing
1032359 Truck Scale, Olympus, 8″ Concrete Deck, 20′ X 11′, 30 ton CLC, 60 Ton Capacity, SST Hyd. Load Cells Call For Pricing
1032360 Truck Scale, Olympus, 8″ Concrete Deck, 40′ X 11′, 30 ton CLC, 90 Ton Capacity, SST Hyd. Load Cells Call For Pricing
1032361 Truck Scale, Olympus, 8″ Concrete Deck, 47′ X 11′, 30 ton CLC, 90 Ton Capacity, SST Hyd. Load Cells Call For Pricing
1032362 Truck Scale, Olympus, 8″ Concrete Deck, 60′ X 11′, 30 ton CLC, 100 Ton Capacity, SST Hyd. Load Cells Call For Pricing
1032363 Truck Scale, Olympus, 8″ Concrete Deck, 70′ X 11′, 30 ton CLC, 100 Ton Capacity, SST Hyd. Load Cells Call For Pricing
1032364 Truck Scale, Olympus, 8″ Concrete Deck, 80′ X 11′, 30 ton CLC, 100 Ton Capacity, SST Hyd. Load Cells Call For Pricing
1032365 Truck Scale, Olympus, 8″ Concrete Deck, 100′ X 11′, 30 ton CLC, 100 Ton Capacity, SST Load Cells Call For Pricing
1032366 Truck Scale, Olympus, 8″ Concrete Deck, 10′ X 12′, 30 ton CLC, 60 Ton Capacity, SST Hyd. Load Cells Call For Pricing
1032367 Truck Scale, Olympus, 8″ Concrete Deck, 20′ X 12′, 30 ton CLC, 60 Ton Capacity, SST Hyd. Load Cells Call For Pricing
1032368 Truck Scale, Olympus, 8″ Concrete Deck, 40′ X 12′, 30 ton CLC, 90 Ton Capacity, SST Hyd. Load Cells Call For Pricing
1032369 Truck Scale, Olympus, 8″ Concrete Deck, 47′ X 12′, 30 ton CLC, 90 Ton Capacity, SST Hyd. Load Cells Call For Pricing
1032370 Truck Scale, Olympus, 8″ Concrete Deck, 60′ X 12′, 30 ton CLC, 100 Ton Capacity, SST Hyd. Load Cells Call For Pricing
1032371 Truck Scale, Olympus, 8″ Concrete Deck, 70′ X 12′, 30 ton CLC, 100 Ton Capacity, SST Hyd. Load Cells Call For Pricing
1032372 Truck Scale, Olympus, 8″ Concrete Deck, 80′ X 12′, 30 ton CLC, 100 Ton Capacity, SST Hyd. Load Cells Call For Pricing
1032373 Truck Scale, Olympus, 8″ Concrete Deck, 100′ X 12′, 30 ton CLC, 100 Ton Capacity, SST Load Cells Call For Pricing
1032374 Truck Scale, Olympus, 8″ Concrete Deck, 10′ X 14′, 30 ton CLC, 60 Ton Capacity, SST Hyd. Load Cells Call For Pricing
1032375 Truck Scale, Olympus, 8″ Concrete Deck, 20′ X 14′, 30 ton CLC, 60 Ton Capacity, SST Hyd. Load Cells Call For Pricing
1032376 Truck Scale, Olympus, 8″ Concrete Deck, 40′ X 14′, 30 ton CLC, 90 Ton Capacity, SST Hyd. Load Cells Call For Pricing
1032377 Truck Scale, Olympus, 8″ Concrete Deck, 47′ X 14′, 30 ton CLC, 90 Ton Capacity, SST Hyd. Load Cells Call For Pricing
1032378 Truck Scale, Olympus, 8″ Concrete Deck, 60′ X 14′, 30 ton CLC, 100 Ton Capacity, SST Hyd. Load Cells Call For Pricing
1032379 Truck Scale, Olympus, 8″ Concrete Deck, 70′ X 14′, 30 ton CLC, 100 Ton Capacity, SST Hyd. Load Cells Call For Pricing
1032380 Truck Scale, Olympus, 8″ Concrete Deck, 80′ X 14′, 30 ton CLC, 100 Ton Capacity, SST Hyd. Load Cells Call For Pricing
1032381 Truck Scale, Olympus, 8″ Concrete Deck, 100′ X 14′, 30 ton CLC, 100 Ton Capacity, SST Load Cells Call For Pricing
