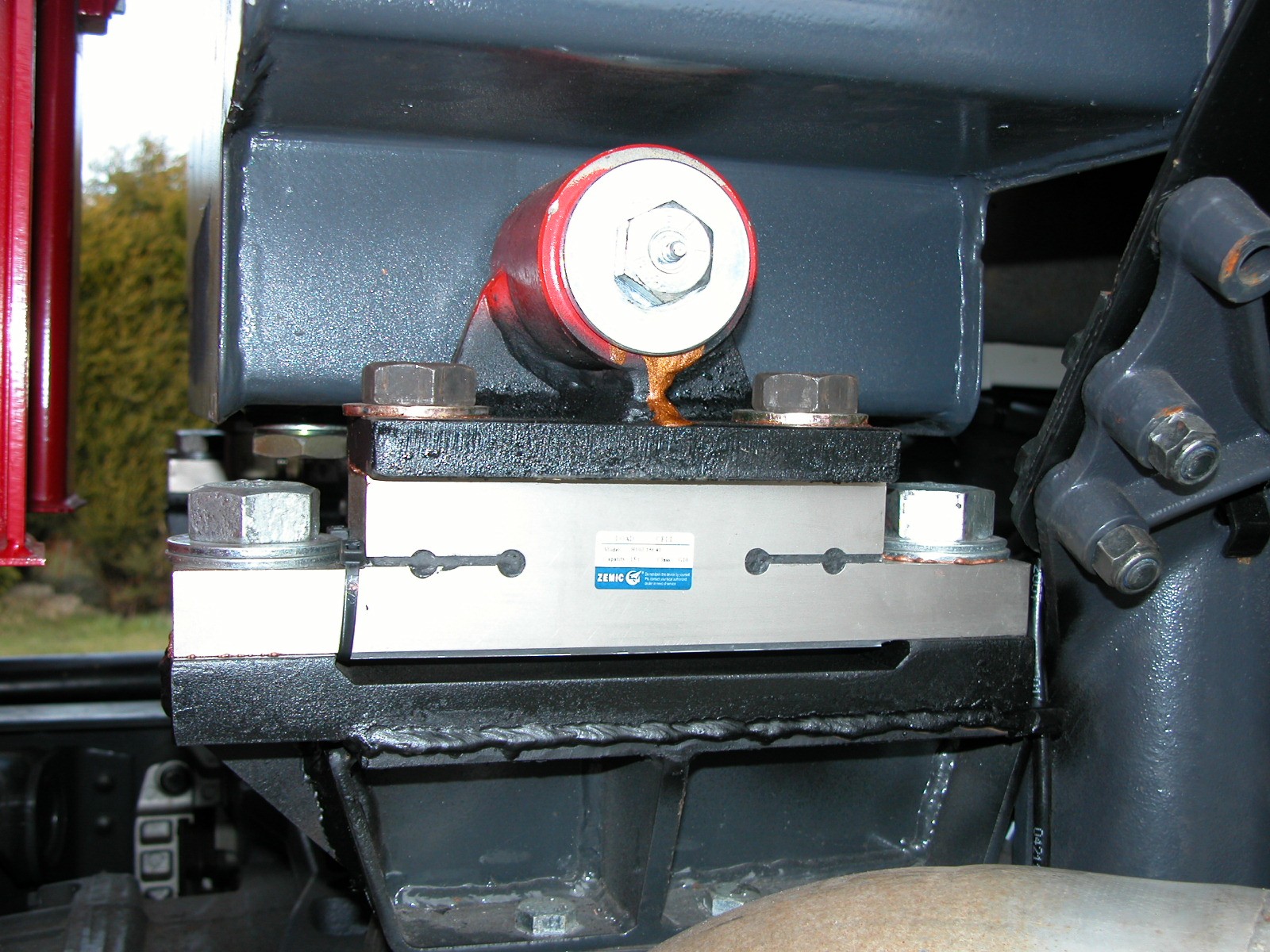

On Board Load Cells

$0.00

Rinstrum Onboard Indicator (R400 Series K491)

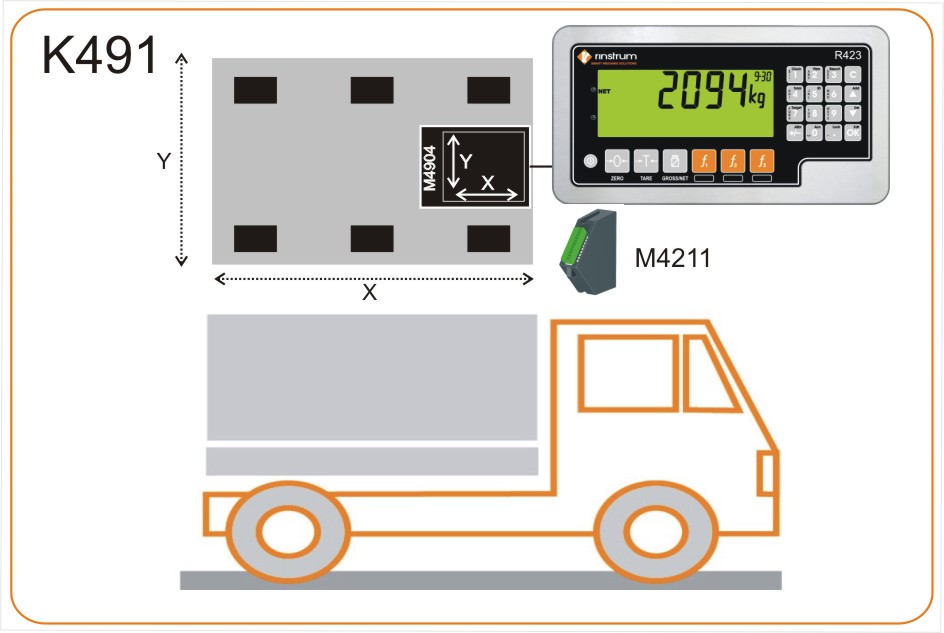

Rinstrum R400 Series indicator with K491 firmware  incorporates tilt compensation that adjust the weight reading according to the angle using an input from a tile sensor.

  • Tilt Module (M4211) on the R420-K491 indicator
  • Rinstrum tilt sensor suitable for +/- 15 degree or +/-15 degrees (The tilt sensor must be correctly mounted given the axes that are providing data.)
Download product PDF
Category:

Features

Smart Weighing

Simple three stage calibration

1. Zero Calibration (at 0 angle)

  • Performed on level surface
  • Tilt sensor is automatically set to 0
  • Calibrates out any inaccuracies

2. Span Calibration (at 0 angle)
3. Tilt Calibration – this generates four tilt parameters that are used to correct the reading.
