Ontrak Enterprise Truck Data Management Software

$0.00

OnTrak software is an effective data management tool for truck scale operations that use Rice Lake Automated Ticketing Kiosk (ATK) systems.

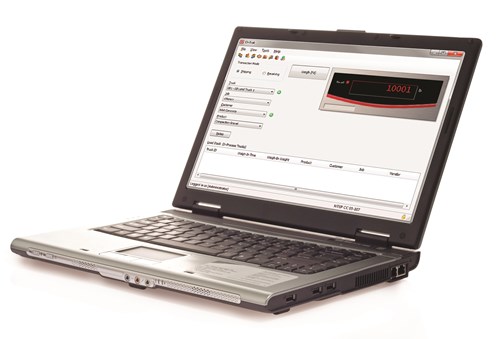

OnTrak, installed on a PC, uses information from your ATK system for more detailed reporting functions. Quickly view, print, or export weight data as XML files for use in spreadsheets and more.

Apply OnTrak’s reporting features to a wide range of industries. OnTrak is incredibly easy to use, and can be installed and configured without the need for additional support staff.

Download product PDF
Category:

Features

  • Supports systems using Windows® 10 and newer
  • Microsoft SQL Server Express client/server database (free edition)
  • Comprehensive report filters
  • User and administrator roles
  • Back up and restore via SQL Server Management Studio freely available through Microsoft
  • Unlimited charge/discount per product
  • Ship or Receive mode for each transaction
  • Exclusive database for: customer, hauler, truck, product, job, price/discount, tax, transaction
  • Ethernet TCP/IP or RS-232 connectivity
  • Supports VIRTUi/VIRTUi2® or Rice Lake weight indicators
  • CSV transaction file export
  • Supports one or two scales

Optional Features

  • Image capture with Ethernet camera TCP/IP (requires SQL Server Standard or better through Microsoft)
  • Interface to non-Rice Lake weight indicators
  • Custom reports
  • Database configuration
  • Field installation and training
  • Factory phone support



Specifications

System Requirements:
Windows® 10 and newer (x64 systems)Databases:
10 GB max database size when using included Micosoft SQL Server Express
Unlimited database size when using a purchased edition (contact Microsoft for details on purchasing a licensed edition of SQL Server)Communications:
Support for multiple printers
Supports all Rice Lake indicator interfaces
Supports VIRTUi/VIRTUi2 interface
920i based Automated Ticketing Kiosks
Optional drivers available for non-Rice Lake weight indicators

Transaction Ticket:
User defined ticket formatting

Reports:
Comprehensive report filters
Optional custom reports

Export Data:
File transfer via XML transaction; exported reports can be saved as PDF/XLS; configurable transaction data export in CSV file format



 Transaction Calculations:
Unlimited product prices and discounts
Tax calculations (does not integrate directly to financial software)Software Support:
Database configuration, field installation and training available
Phone support packages available
Contact Rice Lake for further optionsApprovals:
NTEP 05-107

Options

104789 OnTrak Phone Support 1HR 1 Hour OnTrak Phone Support

101003 LIT,Manual OnTrak OnTrak Truck Scale Data Management Software

Consult Non-Rice Lake indicator interface
Consult Custom reports
Consult Database configuration
FLD-INSTALL Field Installation
