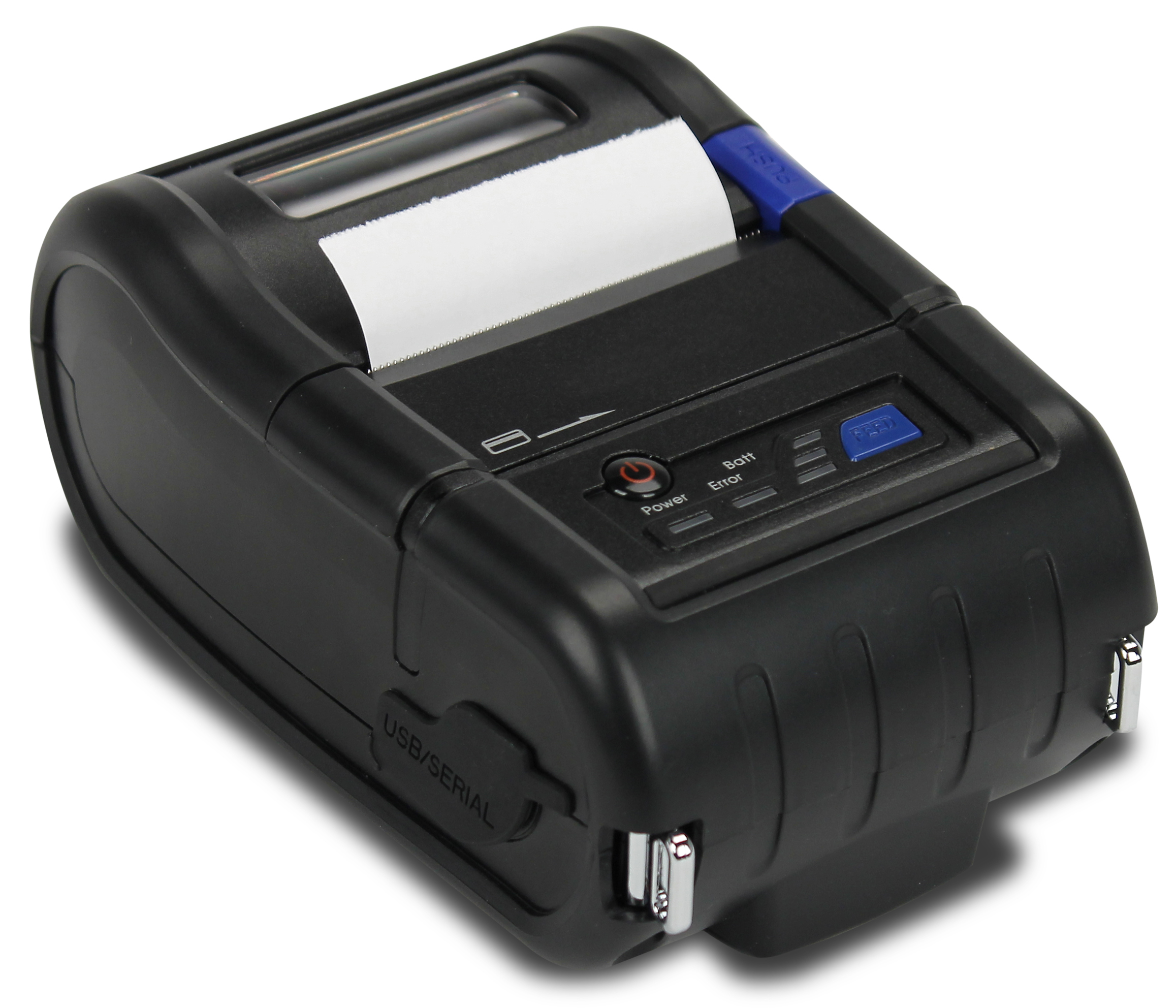

Cardinal’s P150 mobile high-speed direct line thermal printer is rechargeable lithium-ion battery (included) powered for use with portable scales. The P150 is compact and robust with a long-life printing head and high reliability. It features easy paper handling due to its paper drop-in style, 3.15-in/80-mm per second printing speed, 203 DPI x 203 DPI resolution, and serial and USB connectivity. There are three LEDs to indicate battery status. Charging time is 2 hours for 90 minutes of continuous use. The overall dimensions are 3.7 W x 5.3 D x 2.2 H inches (96 W x 136 D x 58 H mm). Print width is 1.89 in/48 mm, 384 dot. Standard serial printer cable provided.
Printing Method: Direct line thermal printing Printing Speed: Max. 3.15 in / 80 mm per second Resolution: 203 DPI x 203 DPI Print Width: 1.89 in / 48 mm, 384 dot Character: ALPHA NUMERIC Character, Extension Character Font: Font A (12 x 24 dot), Font B (9 x 17 dot) Number of Columns: 32 (Font A) 42 (Font B) Barcode: EAN-8, EAN-13, CODE 39, ITF, UPC-A, Codabar, Code93, Code128, PDF417(2D) Emulation: ESC/POS Driver: Window CE 4.2&5.0, Window Mobile 5.0 Sensor: Paper End Sensor, Gap Sensor, Cover open Sensor Paper Type: Thermal Paper Width: 3.5 in / 88 mm Battery: Continuous printing for 90 min. Standby for 24 hours Communications: Serial (RS232C), USB, Wireless Lan 802.11b/g (CMP-20WF) Battery Charger Input: AC100-240V, 50/60 Hz Battery Charger Output: 8.4V, 1200 mA Battery Type: Lithium Ion Battery Output Type: 7.4V, 1800mAh Battery Charging Time: 2 hours Overall Dimensions: 3.7 W x 5.3 D x 2.2 H inches (96 W x 136 D x 58 H mm) Temperature (Operation): 41-104˚F / 5-40˚C Temperature (Storage): 14-122˚F / -10-50˚C Humidity (Operation): 35 – 95 % Humidity (Storage): 10 – 95 %
