The Paramounts tank weighing system consists of one fixed-pin mount which allows only the top plate to rotate, one side-stop mount which allows the top plate to slide along the cell only, and one or more free-sliding mount(s) which allow the top plate to slide freely in all directions. This system provides self-checking while maintaining unparalleled system accuracy.

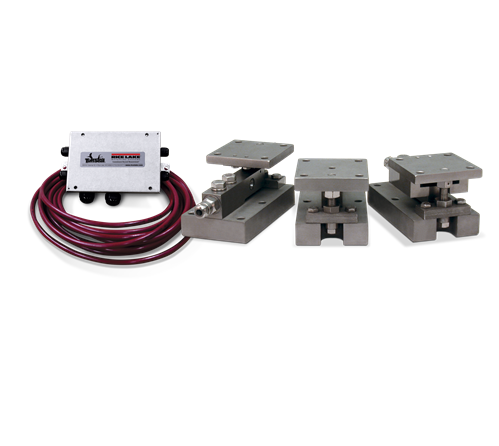

One fixed-pin module, one side-stop module, and one or two free-sliding assemblies. Each module is complete with a Flintec SB4 NTEP Certified, stainless steel, hermetically sealed load cell.
One JB4SS NEMA Type 4X stainless steel signal trim junction box
25 ft of hostile environment EL147HE SURVIVOR® load cell cable
Standard Features
Capacities (per module): 5 kN to 100 kN
Unique design allows for thermal expansion/contraction
Jacking screw allows empty vessel to be lifted clear of load cell for maintenance
Unique blind load hole eliminates unwanted side and eccentric loads
Vessel is free to slide laterally on PTFE-coated surfaces
Load cell outputs are matched to ±.0.07% allowing replacement without further calibration
Specifications
VESSEL ARRANGEMENT
When arranged as illustrated, the vessel is fixed at one corner
but is able to slide freely as indicated. This ensures there
is minimal side loading on the cells and at the same time the
vessel is self-checking. The unique, patented blind load hole
technology used in these mounts introduces the load at the
neutral axis of the load cell which helps minimize the effects
of side loads.
