PIN7000/PIN7010 Pneumatic Pressure Intensifier

$0.00

Pump up your system with the PIN7000 or PIN7010 pneumatic pressure intensifier. Both the PIN7000 and PIN7010 pneumatic pressure intensifier operate using any clean dry air or gaseous nitrogen. Containing an automatic precision intensifying system, these models generate up to 10 times the input pressure.

This easy-to-operate pressure intensifier system provides fingertip control with the exclusive micro-metering valve for pressure adjustment and venting. Monitoring has never been easier with three gauges that account for regulated pressure, accumulated pressure and output pressure. These units are completely equipped with quick-disconnect fittings and hoses for rapid input and output pressure.

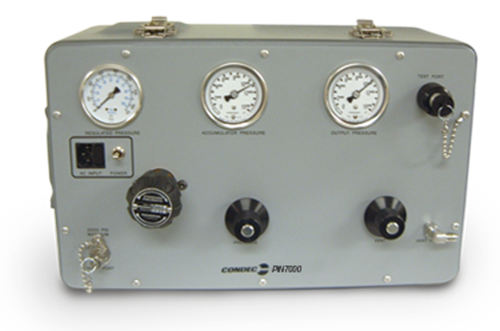

These pressure intensifying systems were designed for custom use. The compact PIN7000 pressure intensifier incorporates a portable configuration for on-the-go operation. The rugged PIN7010 is a rack-mount model, ideal for frequent in-house use.

Download product PDF
Categories: , ,

Features

  • Available in self-contained enclosure with carrying handles (PIN7000)
  • Internal precision pressure intensifier generates up to 10 times input pressure
  • Electronically controlled intensifier system
  • Precision regulator to adjust input pressure
  • Three gauges to monitor regulated pressure, accumulated pressure, and output pressure
  • Patented micro-metering valves for pressure adjustment and venting
  • Quick-disconnect fittings and hoses supplied for input and output pressure
  • Easy to operate, training can be accomplished in 10 minutes
  • Available in self-contained enclosure with carrying handles (PIN7000) or 19-inch, rack-mount version (PIN7010)

Applications

  • High pressure supply, up to 10,000 psi, for test equipment
  • Ideal for fluid-free high pressure calibration
  • Works with all major manufacturer’s electronic pressure calibrators

Options

63258 LIT,Manual PIN7000 PIN7010 Operating
151017 Fitting Kit, Output Port Quick Disconnect Fitting Male Coupling Body, other end 1/4-18 NPT Female SST with 40 Micron Filter, 11000 PSI Working Pressure, for PIN8000 PIN8010 UPC5200 UPC5210 PIN7000 PIN7010 UPS3110 DLR3110 – NOTE: May be used to connect DPDG Gauge to Output Port.
55280 Hose Kit,Test Port Output UPC5200, PIN7000, PIN8000 5 Foot Long with Quick Disconnect SST Plug on One End and 1/4 inch 37 Degree Female AN Swivel Tube Coupling on Opposite End, 3/16 in Hose ID, 10,000 PSI (690 BAR) Working Pressure
131096 Hose Kit,Test Port Output 10 ft. test hose for UPC5200, UPS3110, DLR3110, PIN7000 & PIN8000 (5000 psi and above) Quick Disconnect SST Plug on One End and 1/4 inch 37 Degree Female AN Swivel Tube Coupling on Opposite End
78939 Hose ASSY,Pneumatic 5 ft Fill Port One End of Hose 7/16-20 JIC 37 Degree Female AN-4 Swivel Other End CGA-580 Type Nipple for Source 3000 65315 or 98917 or 131385
55366 Hose Kit,Fill Port Input UPC5200 10 Foot Long with CGA-580 Male Nipple on One End and 1/4 inch 37 Degree Female AN Swivel Tube Coupling on Opposite End
55369 Hose Kit,Fill Port Input UPC5200 15 Foot Long with CGA-580 Male Nipple on One End and 1/4 inch 37 Degree Female AN Swivel Tube Coupling on Opposite End
162561 Hose Assy,Pneumatic 20 ft Fill Port One End of Hose 7/16-20 JIC 37 Degree Female AN-4 Swivel Other End CGA-580 Type Nipple, for Source 3000 PNs 65315, 98917, 131385
150613 Hose ASSY, Pneumatic 5 ft 0-3000 PSI Working Pressure CGA-580 Type Male Nipple Both Ends Used For Filling External Pressure Cylinder PN 59533 – UPC5200, PIN7000, PIN8000
