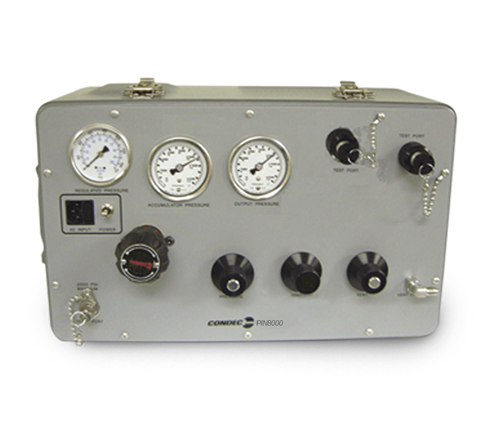

PIN8000/PIN8010 Pneumatic HI Source Pressure Intensifier

$0.00

Although, similar in design to the PIN7000, the PIN8000 pneumatic pressure intensifier features two output ports and our patented Orion 3A valve, with vernier for finger-tip adjustments. Do calibrations utilizing the PIN8000 or PIN8010 pneumatic pressure intensifier. Both the PIN8000 and PIN8010 (19-inch rack-mount) pressure intensifiers operate using any clean dry air or gaseous nitrogen.

Containing an automatic precision intensifying system, these models generate up to 10 times the input pressure. This easy-to-operate system provides fingertip control within the exclusive patented precision Orion 3A valve. By utilizing the soft-seal micro-metering valves for pressure adjustment and venting, in conjunction with the vernier, user gains finite control to obtain exact pressure readings.

By properly setting the included Condec REG 1000 regulator, units under test are protected from permanent damage due to overpressure. PIN8000 eliminates the inconvenience and physical stress of hand pumps. It has two output (test) ports for connecting to a measuring device and virtually any electronic calibrator. For added convenience, the removable cover allows PIN8000 to be positioned at different angles for easy operation in tight spaces.

Download product PDF
Categories: ,

Features

  • Available in self-contained enclosure with carrying handles (PIN8000)
  • Internal precision pressure intensifier generates up to 10 times input pressure
  • Electronically controlled intensifier system
  • Two output (test) ports, for connecting to Device-Under-Test as well as a precision calibration standard (works with all major brand pressure calibrators, digital gauges or indicators)
  • Precision Condec REG1000 (regulator) to adjust input pressure
  • Three gauges to monitor regulated pressure, accumulated pressure, and output pressure
  • Patented micro-metering valves with vernier for precision (.0005 psi) for pressure adjustment and venting
  • Quick-disconnect fittings and hoses supplied for input and output pressure
  • Easy to operate, training can be accomplished in 10 minutes
  • Different technicians can operate the system and get identical results
  • Pneumatic only; no hydraulics or distilled water messes

Applications

  • High pressure supply, up to 10,000 psi, for test equipment
  • Ideal for fluid-free high pressure calibration
  • Works with all major manufacturer’s electronic pressure calibrators

Specifications

Temperature range:
Operating: 40°F to 140°F (4°C to 60°C)
Storage: 0°F to 185°F (-17°C to 85°C)
Relative humidity: 95%, non-condensingPressure Media:
Clean dry gaseous nitrogen or clean dry air

Regulated Pressure Gauge:
Size: Two and one half-inch diameter
Range: 0-1500 psi

Accumulator and Output Pressure Gauges:
Size: Two and one half-inch diameter
Range: 0-15,000 psi

Control valves:
Type: Micro-metering with positive shut off, adjustable stop and replaceable seat, non destructible
Vernier mechanical rotation: 16 turns, nominal
Adjustable sensitivity: 0.0005 psi, minimum
Vernier torque: Finger tip adjust to 10,000 psi
Material: 300 series stainless steel outer body

 Internal piping:
Tubing: 1/4 in. O.D. and 1/8 in. O.D. 300 series stainless steel, seamless
Couplings: 300 series stainless steel Swagelok®Output test ports:
Style: Quick-disconnect type
Pressure rating: 10,000 psig minimum, connected or disconnected
Quantity supplied: 2 output Quick Disconnects (one, p/o output pressure hose mentioned below)

Pressure Hoses:
Quantity supplied: 2; one input and one output
Length: 4 ft., nominal each hose

Booster Pump solenoid valve:
Type: Three-way, normally closed, electronically controlled
Pressure rating: 1500 psig
Power Requirements:
115 VAC, 50 Hz, 10 watts
Note: 220 VAC also available

 Input Pressure Condec REG 1000 Regulator:
Pressure rating: 3000 psi maximum
Output pressure range: 0-1000 psi
Construction: Self-relieving, single stage regulatorExternal housing:
PIN8000: Deep drawn aluminum case with cover and handles
PIN8010: Sheet aluminum enclosure

External Finish:
PIN8000: Grey polyurethane baked-enamel paint, textured finish

Weight:
Approximately 40 lb (18.1 kg), nominal including all fitting, hoses and power cord

Options

63258 LIT,Manual PIN7000 PIN7010 Operating
58478 Pressure Trap,UPC5200 All Ranges, PIN7000 PIN7010 PIN8000 PIN8010 All, UPS3110 and DLR3110 Ranges 5000 PSI and Above Operation
55542 Fitting Kit,Test Port Standard quick-disconnect test port (output) fitting SST male plug on one end and 7/16-20 37 DEG AN-4 JIC male on opposite end w/ internal 40 micron filter, 11000 PSI working pressure, Requires, included, one Cheat Seal 54854 for UPC5200 UPC5210 PIN7000 PIN7010 PIN8000 PIN8010 UPS3110 DLR3110
151017 Fitting Kit, Output Port Quick Disconnect Fitting Male Coupling Body, other end 1/4-18 NPT Female SST with 40 Micron Filter, 11000 PSI Working Pressure, for PIN8000 PIN8010 UPC5200 UPC5210 PIN7000 PIN7010 UPS3110 DLR3110 – NOTE: May be used to connect DPDG Gauge to Output Port.
55280 Hose Kit,Test Port Output UPC5200, PIN7000, PIN8000 5 Foot Long with Quick Disconnect SST Plug on One End and 1/4 inch 37 Degree Female AN Swivel Tube Coupling on Opposite End, 3/16 in Hose ID, 10,000 PSI (690 BAR) Working Pressure
131096 Hose Kit,Test Port Output 10 ft. test hose for UPC5200, UPS3110, DLR3110, PIN7000 & PIN8000 (5000 psi and above) Quick Disconnect SST Plug on One End and 1/4 inch 37 Degree Female AN Swivel Tube Coupling on Opposite End
78939 Hose ASSY,Pneumatic 5 ft Fill Port One End of Hose 7/16-20 JIC 37 Degree Female AN-4 Swivel Other End CGA-580 Type Nipple for Source 3000 65315 or 98917 or 131385
55366 Hose Kit,Fill Port Input UPC5200 10 Foot Long with CGA-580 Male Nipple on One End and 1/4 inch 37 Degree Female AN Swivel Tube Coupling on Opposite End
55369 Hose Kit,Fill Port Input UPC5200 15 Foot Long with CGA-580 Male Nipple on One End and 1/4 inch 37 Degree Female AN Swivel Tube Coupling on Opposite End
162561 Hose Assy,Pneumatic 20 ft Fill Port One End of Hose 7/16-20 JIC 37 Degree Female AN-4 Swivel Other End CGA-580 Type Nipple, for Source 3000 PNs 65315, 98917, 131385
120462 Fitting, Quick-Disconnect Test Port adjustable adapter assembly, Finger Tighten 1/8 NPT Male to 1/4-37 Deg AN-4 Female other end, 5000 PSI, Temp Range 40 Deg F to 200 Deg F, for hands-free display reading when used between Orion 2C Cased Unit Test Port or PIN8000 Quick-Connect 55542 and Hand-Held or Digital Gauge with 1/8 NPT Female thread, requires (included) one Cheat Seal 54854
159683 Fitting, Quick-Disconnect Test Port adjustable adapter assembly, Finger Tighten 1/4 NPT Female to 7/16-20, 37 Degree AN-4 Swivel other end, Working Pressure 5000 PSI, for hands-free display viewing when used between PIN8000 Test Port 55542 and Device with 1/4 NPT Male, Requires (included) One Cheat Seal 54854
150613 Hose ASSY, Pneumatic 5 ft 0-3000 PSI Working Pressure CGA-580 Type Male Nipple Both Ends Used For Filling External Pressure Cylinder PN 59533 – UPC5200, PIN7000, PIN8000
