PL Series

$0.00

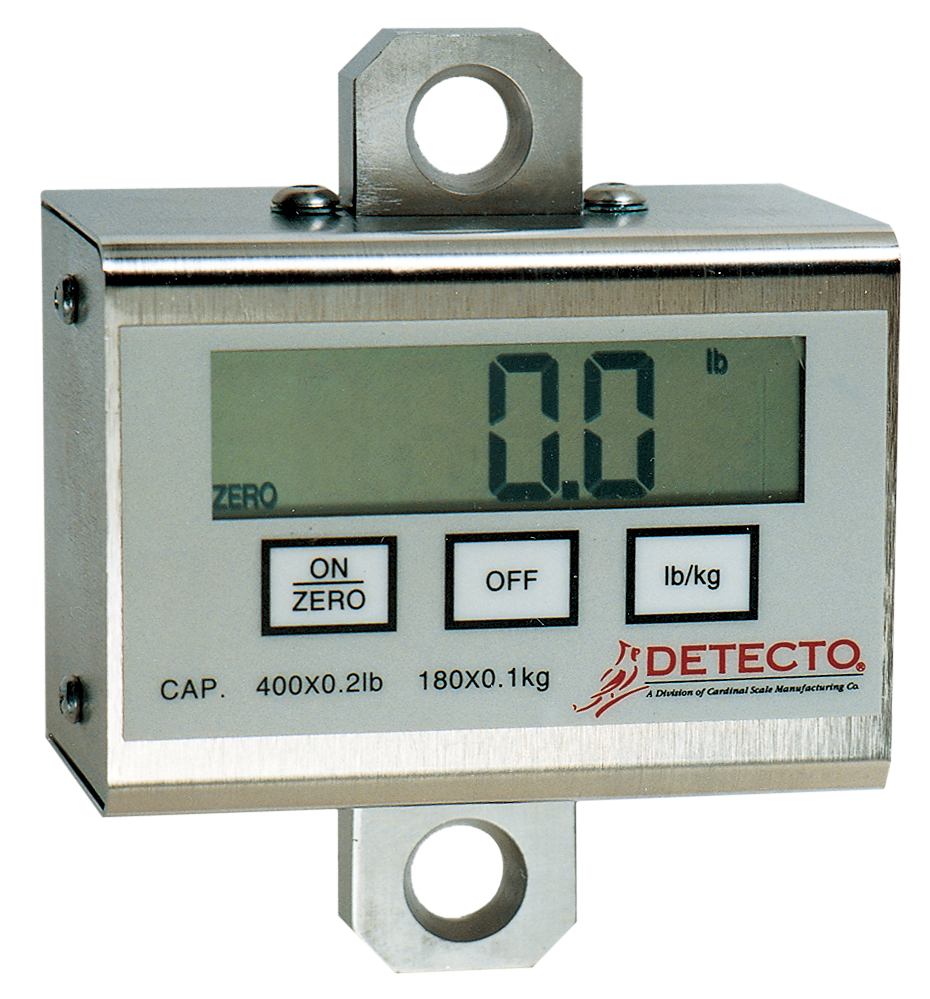

Detecto’s Patient Lift Scale weighs a person suspended from a portable patient lift mechanism. It operates on only one (1) 9V battery (not included) with an automatic shut-off feature. The scale also has a membrane keypad with only three (3) keys: ON/ZERO, OFF and LB/KG and features 0.75 in (19 mm) high readouts. It’s so easy to setup and operate; the procedure is quickly learned. The lock-in weight feature stores the last reading when the unit is turned off. 400 and 600 lb (180 and 270 kg) capacities available. Supplied with two spring “O” rings.

Download product PDF
Category:

Features

  • .75-in-high LCD
  • 400 or 600 lb Capacities
  • Battery Operated
  • Lock-in Weight Option
  • Suspended Weighing

Specifications

PL400: 400 lb x 0.2 lb / 180 kg x 0.1 kg
PL600: 600 lb x 0.2 lb / 270 kg x 0.1 kg
Temperature Range: 50 to 104°F (10 to 40.5°C)
Display: LCD digital
Power: 9V battery (not included)
Dimensions: 4.175 W x 2.175 D x 5 H inch
Mounting Holes: 0.5 inch diameter, 4 inch to center
Shipping Weight: 2 lb

Options

PL-HLKIT CONNECTING LINK KIT PLXXX TO HOYER YOKE Call For Pricing
PL-ICKIT ADAPTER KIT FOR PLXXX TO INVCR LIFT/YOKE Call For Pricing

Models

PL400 Patient Lift Scale, 400 lb/180 kg Capacity, Battery Operated Call For Pricing
PL600 Patient Lift Scale, 600 lb/270 kg Capacity, Battery Operated Call For Pricing
