PL9000-26 Alloy Steel, Hermetically Sealed Load Cell

$0.00

Download product PDF
Category:

Features

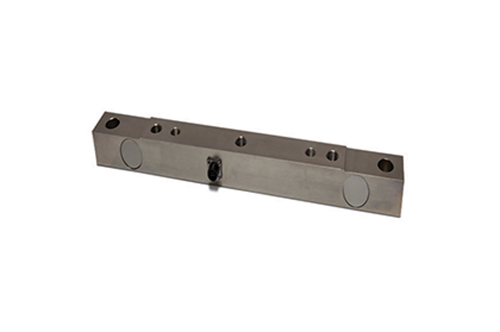

The PL9000-26 is a heavy duty, shear beam load cell designed for kingpin plates and underbody mounts.
Available with either a single bearing plate or two separate bearing plates, the PL9000-26 has a 2.3 inch profile and is 26 inches long.

Specifications

Output:
0.725 mV/V at 12,500 lb

Output Resistance:
350 (nominal)

Input Resistance:
350 (nominal)

Material/Finish:
Alloy steel

Temperature:
14 °F to 104 °F (-10 °C to 40 °C)

 Rated Excitation:
15 VDC (5 to 10 V recommended)

Non-linearity:
±0.1% full scale

Insulation Resistance:
500 megohms at 50 VDC

Seal Type:
Hermetically sealed, IP68

 Connector Type:
Conxall, 4-pin (male)

Connection Pin Out:
A – Excitation +
B – Signal +
C – Signal –
D – Excitation –

Warranty:
One-year limited

Options

114325 Load Cell,Heavy Duty Underbody Bunk 26 Inch PL9000-26 0.74 mV/V@12,500 LB 350 Ohm
