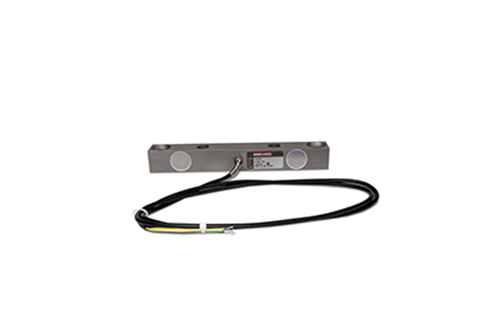

PL9100-5K Stainless Steel, Environmentally Sealed Load Cell
$0.00
Download product PDF
Specifications
Full Scale Output
2.0 mV/V
Output Resistance:
700 (nominal)
Input Resistance:
736 (nominal)
Material/Finish:
Stainless steel
Temperature:
14° F to 104° F (-10° C to 40° C) |
Rated Excitation:
5-15 VDC
Non-linearity:
±0.03% full scale
Insulation Resistance:
5 gigohms at 50 VDC
Seal Type:
Environmentally sealed, IP67
Cable Length:
60 in |
Wire Color Code:
Red – Excitation +
Green – Signal +
Black – Excitation –
White – Signal –
Yellow – Shield
Warranty:
One-year limited warranty |
Options
| 204610 |
Load Cell,PL9110-2K Double Ended Shear Beam, 2.0 mV/V, SST Element, IP69, OBW, 25 ft, 22 AWG 4 conductor PVC cable |
|
|
| 204611 |
Load Cell,PL9110-5K Double Ended Shear Beam, 2.0 mV/V, SST Element, IP69, OBW, 25 ft, 22 AWG 4 conductor PVC cable |
|
|
| 204612 |
Load Cell,PL9110-10K Double Ended Shear Beam, 2.0 mV/V, SST Element, IP69, OBW, 25 ft, 22 AWG 4 conductor PVC cable |
|
|
| 204613 |
Load Cell,PL9110-20K Double Ended Shear Beam, 2.0 mV/V, SST Element, IP68, OBW, 25 ft, 22 AWG 4 conductor PVC cable |
|
|
