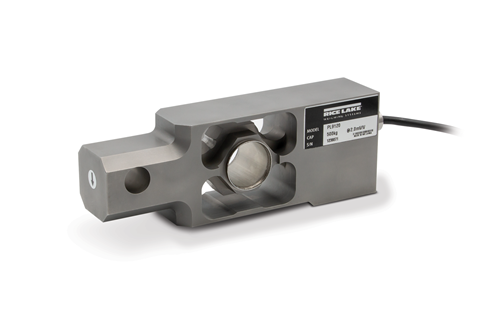

PL9120 Stainless Steel, Hermetically Sealed Load Cell

The PL9120 is designed for a mounting assembly that can be attached to a vertical surface. This perpendicular
mounting design may be a solution where typical compression or tension mounts are not suited.

Download product PDF
Categories: ,

Specifications

Full Scale Output:
2.0 mV/V

Output Resistance:
350 (nominal)

Input Resistance:
385 (nominal)

Material/Finish:
Stainless steel

Temperature:
14 °F to 104 °F (-10 °C to 40 °C)



Rated Excitation:
5 to 15 VDC

Non-linearity:
±0.03% full scale

Insulation Resistance:
5 mega ohms at 50 VDC

Seal Type:
Hermetically sealed, IP69



 Cable Length:
25 ft

Wire Color Code:
Red +Excitation
Green +Signal
Black -Excitation
White -Signal
Yellow Shield

Warranty:
One-year limited
