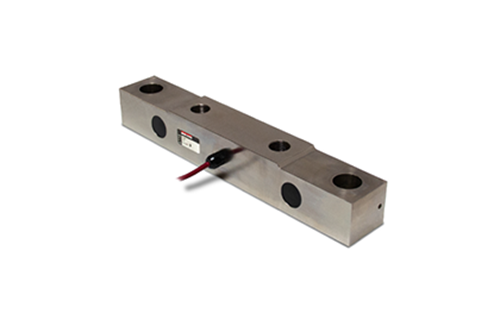

PLSB-125K Alloy Steel, Environmentally Sealed Load Cell
$0.00
Download product PDF
Specifications
Full Scale Output:
1.75 mV/V
Output Resistance:
700 (nominal)
Input Resistance:
700 (nominal)
Material/Finish:
Alloy steel
Temperature:
14° F to 104° F (-10° C to 40° C) |
Rated Excitation:
15 VDC (5-10 V recommended)
Non-linearity:
±0.25% full scale
Insulation Resistance:
2,000 megohms at 50 VDC
Seal Type:
Environmentally sealed, IP66
Cable Length:
25 ft |
Wire Color Code:
Red – Excitation +
Green – Signal +
White – Signal –
Black – Excitation
Drain Wire – Shield
Warranty:
One-year limited warranty |
