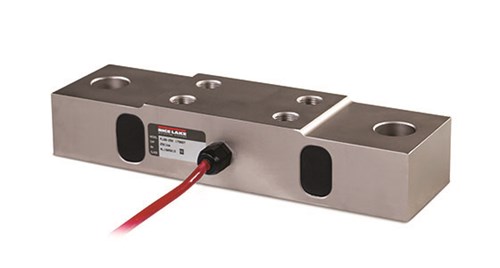

PLSB-25K Alloy Steel, Environmentally Sealed Load Cell

$0.00

Download product PDF
Category:

Features

The PLSB-25K is used in Rice Lake’s twist-lock and stacking cone mount assemblies. This rigid mount, double-ended shear beam load cell is used when a series of mounts are not fixed to a frame at all times. The PLSB-25K can also be used in applications with dynamic forces.

Specifications

Output Resistance:
722 ohm (nominal)

Input Resistance:
700 ohm (nominal)

Material/Finish:
Alloy steel

Temperature:
14 °F to 104 °F (-10 °C to 40 °C)

 Rated Excitation:
15 VDC (5 to 10 V recommended)

Non-linearity:
±0.25% full scale

Insulation Resistance:
2,000 megohm at 50 VDC

Seal Type:
Environmentally sealed, IP66

 Cable Length:
20 ft: PN 179827
50 ft: PN 191898

Wire Color Code:
Green +Signal
White  -Signal
Black Excitation
Drain Wire – Shield

Warranty:
One-year limited

Options

179827 Load Cell,PLSB-25K Clamp 25,000lb 2-5/32 x 3-3/8 x 12 Alloy Steel Gauged 20ft 4 Conductor 20ft Long Cable For OnBoard Weighing
191898 Load Cell,PLSB-25K Clamp 25,000lb 2-5/32 x 3-3/8 x 12 Alloy Steel Gauged 50ft 4 Conductor 50ft Long Cable For OnBoard Weighing
