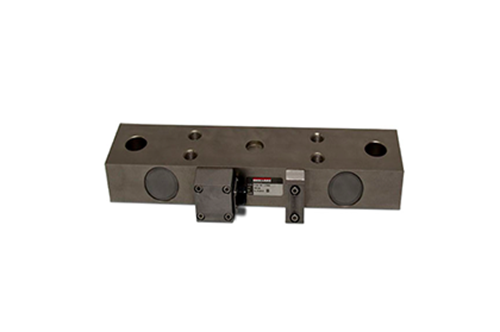

PLSB-40K Alloy Steel, Hermetically Sealed Load Cell
$0.00
Download product PDF
Features
The PLSB-40K alloy steel load cell is hermetically sealed with an IP68 rating and has a 0.75 mV/V output at 12,500 lb
Specifications
Full Scale Output:
1.75 mV/V
Output Resistance:
722 (nominal)
Input Resistance:
700 (nominal)
Material/Finish:
Alloy steel
Temperature:
14° F to 104° F (-10°C to 40°C) |
Rated Excitation:
15VDC (5-10V recommended)
Non-linearity:
±0.25% full scale
Insulation Resistance:
2,000 megohms at 50VDC
Seal Type:
Hermetically sealed, IP68 |
Cable Length:
20 ft or 50 ft
Wire Color Code:
Red – Excitation +
Green – Signal +
White – Signal –
Black – Excitation
Drain Wire – Shield
Warranty:
One-year limited warranty |
Options
| 117666 |
Load Cell,PLSB-40K Clamp 40,000lb 2-1/8×3-3/8×16-1/4 Alloy Steel, Gauged, 4 Pin CONN, .74mV/V at 12500lbs 350 Ohms |
|
|
