Product PDF Rice Lake Repair Parts for Pipe Lever Scale Type I, 25K & 30K
Features

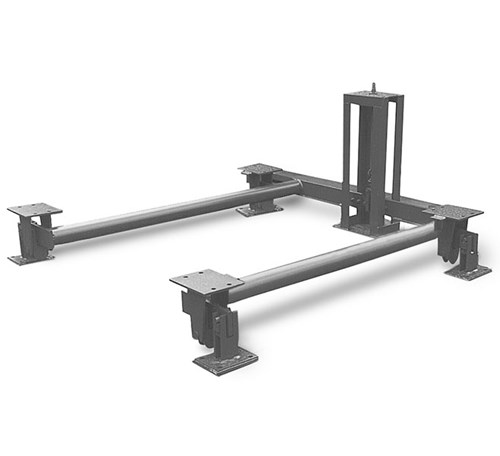

Pipe Lever Scale Type I, 25K/30K
Options
| 14697 |
Nut, Lock, Nylon Insert, Hex, 3/4-10NC, Width Across Flats = 1-1/16, Thickness = 57/64, Grade 2 Steel, Clear Zinc Plated |
|
|
| 15177 |
Washer,Plain 5/8 Type A Series N Steel Zinc Plated ID=.649-.686 OD=1.305-1.342 Thickness= .074-.121 |
|
|
| 15179 |
Washer,Plain 3/4 Type A Series N Steel Zinc Plated ID=.805-.842 OD=1.462-1.499 Thickness= .108-.160 |
|
|
| 15244 |
Pin,Cotter 5/32×1 Extended Prong Steel Zinc Plated |
|
|
| 17899 |
Mount,ITCM 5,000 lb Mild Steel Zinc Plated Tension Clevis THD 3/4-10NC Rod End THD 3/4-16 NF No Cell |
|
|
| 22102 |
Pin,Clevis 1/2×2-3/4 Steel Zinc Plated |
|
|
| 26344 |
Screw,Cap 5/8-11NC x 2-1/2 Hex Head Partially Threaded Zinc Plated Steel |
|
|
| 39101 |
Screw,Drive 5/16 DIA Shank Round Head Type U x 1/2 Long Steel Zinc Plated |
|
|
| 39963 |
Shackle Block,Center Connection 20k 25k And 30k Pipe Lever |
|
|
| 39969 |
Shackle ASSY,20k 25k And 30k Nose Iron Connection |
|
|
| 39970 |
Small Center Connection Shackle Loop,20k 25k And 30k Pipe Lever |
|
|
| 39971 |
Large Center Connection Shackle Loop,20k 25k And 30k Pipe Lever |
|
|
| 39972 |
Left Nose Iron ASSY,20k 25k And 30k Pipe Lever |
|
|
| 39975 |
Right Nose Iron ASSY,20k 25k And 30k Pipe Lever |
|
|
| 39988 |
Loop ASSY,20k 25k And 30k Pipe Lever |
|
|
| 39989 |
Side Plate,Loop ASSY 20k 25k And 30k Pipe Lever |
|
|
| 39990 |
Bearing,1-3/4x2x2-1/2 |
|
|
| 39991 |
Spool,1-3/4Dia x 1-7/8 |
|
|
| 39993 |
Pin,Trunion 1-5/8Dia x 8-3/8 |
|
|
| 40174 |
Bolt,3/4-10NCx4 HEX Head Partially Threaded Grade 2 Steel Zinc Plated |
|
|
| 40181 |
Nut,Lock 5/8-11NC Hex Nylon Insert Steel Zinc Plated Width Across Flats=15/16 Thickness=49/64 |
|
|
| 39978 |
Girder Chair,20k 25k And 30k Pipe Lever |
|
|
| 39982 |
Fulcrum Stand ASSY,20k 25k And 30k Pipe Lever |
|
|
| CM764 |
Bearing,3/4×3/4×1 1/4- 20UNC W/Friction Plates |
|
|
| 0525-0056 |
Pivot,1/2×3/4×2-5/8 |
|
|
| 39964 |
Load Cell Support Stand, 10x11x34 WLDT Painted |
|
|
| 14686 |
Nut,Jam 3/4-10NC HEX Steel Zinc Plated Width Across Flats=1-1/8 Thickness=27/64 |
|
|
| 39962 |
Adapter,Threaded 3/4-10NC x 6 |
|
|
| 39961 |
Adapter,Threaded 3/4-10NC x 3 |
|
|
| 126994 |
Nut,Hex 3/4-10 Grade 8 Clear Zinc Plated |
|
|
| 21443 |
Load Cell,SBM RL20000I-5K 5000lb 20ft 3mv/v 350 Ohm NTEP III 5S/IIIL 10S WW FM IP67 |
|
|
| Part # |
Description |
List Price |
Cart |
| 40378 |
Scale,25,000lb Pipe Lever 48×48 NTEP Class III 5000 Steel Painted |
|
|
| 40379 |
Scale,25,000lb Pipe Lever 60×60 NTEP Class III 5000 Steel Painted |
|
|
| 40380 |
Scale,25,000lb Pipe Lever 72×72 NTEP Class III 5000 Steel Painted |
|
|
| 40381 |
Scale,25,000lb Pipe Lever 84×84 NTEP Class III 5000 Steel Painted |
|
|
| 40382 |
Scale,25,000lb Pipe Lever 96×96 NTEP Class III 5000 Steel Painted |
|
|
| 40383 |
Scale,25,000lb Pipe Lever 108×108 NTEP Class III 5000 Steel Painted |
|
|
| 40384 |
Scale,25,000lb Pipe Lever 120×120 NTEP Class III 5000 Steel Painted |
|
|
| Part # |
Description |
List Price |
Cart |
| 39935 |
Scale,30,000lb Pipe Lever 60×60 NTEP Class III 5000 Steel Painted |
|
|
| 39936 |
Scale,30,000lb Pipe Lever 72×72 NTEP Class III 5000 Steel Painted |
|
|
| 39937 |
Scale,30,000lb Pipe Lever 84×84 NTEP Class III 5000 Steel Painted |
|
|
| 39938 |
Scale,30,000lb Pipe Lever 96×96 NTEP Class III 5000 Steel Painted |
|
|
| 39939 |
Scale,30,000lb Pipe Lever 108×108 NTEP Class III 5000 Steel Painted |
|
|
| 39940 |
Scale,30,000lb Pipe Lever 120×120 NTEP Class III 5000 Steel Painted |
|
