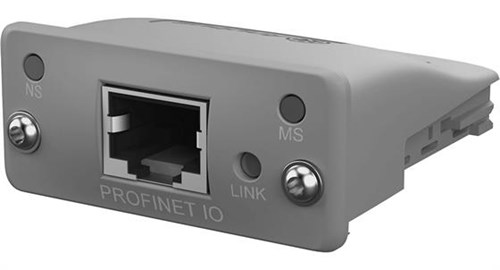

PROFINET Interface 880.882D/882IS/1280
$0.00
Download product PDF
Features
- PROFINET communication adapter
- Onboard diagnostic LEDs
- 100 Mbps baud rate
- Works as an I/O device on the PROFINET network
- PROFIenergy compliant
Specifications
Power:
3.3 VDC, 250 mAConfiguration:
GSDML file
Connector Type:
RJ-45 (Consult for dual-port version) |
Diagnostic LEDs:
Module status and network statusIP Address Range:
Full IP address range DHCP |
Dimensions:
2.00 × 1.90 × 0.75 in
(52 × 49 × 19 mm)Temperature Range:
-40 °F to 158 °F (-40 °C to 70 °C) |
Options
| 179160 |
Ind Opt,Profinet Model 880 Indicator |
|
|
| 165794 |
1280 Opt,ProfiNet CompactCom Option |
|
|
| 205567 |
Ind Opt,Profinet Dual Port, Model 880 Indicator |
|
|
| 190532 |
882 Opt,ProfiNet CompactCom Option |
|
|
