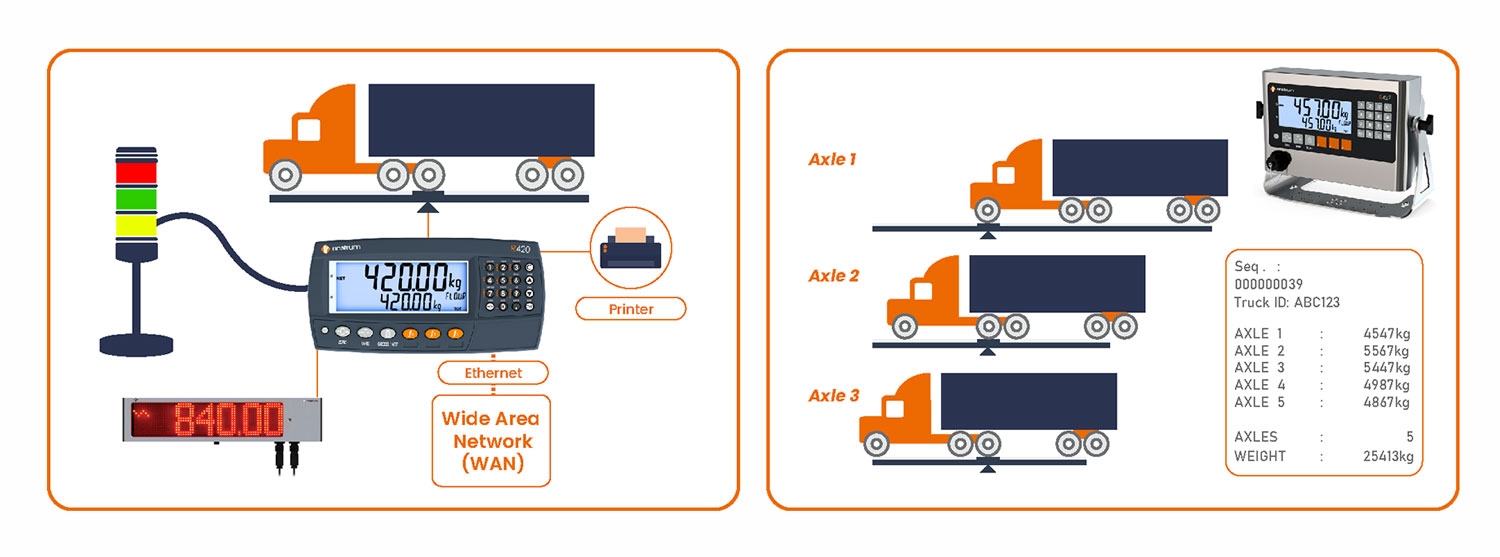

The K405 builds on the K404 standard truck weighing application to support static axle weighing rather than a full weigh bridge. There is automatic print on no motion for each axle.
Like the K404, the K405 allows for a range of operational scenarios all in one setup, from weigh-in/weigh-out to stored truck ids. The alpha-numeric keypad allows for easy entry of tare weight and Truck IDs. With 250 Truck IDs available it is suitable for applications with truck fleets of up to 250.
The following operational scenarios can all be handled on the one setup:
Weigh a truck in a single pass using its tare weight
Weigh a known truck with a stored Truck ID and preset tare and accumulate the statistics on that truck ID.
Two pass weighing with a weigh in followed by a weigh out. The ticket will show time/date weigh-in, weigh-out and net weights.
Automatic temporary Truck ID to simplify weigh-in/weigh-out for fast weighing throughput. The temporary Truck ID is removed once the weigh-out is complete.
R400 Indicators are ideal for weigh bridges and axle scales:
Isolated communication modules for excellent protection against lightning
All accessory modules, including the power supply, can be swapped without recalibration.
Indicator configuration and setup can be reused and easily uploaded using the opto-link on the front panel.
Pre-calibration using mV/V saving time on full calibration
