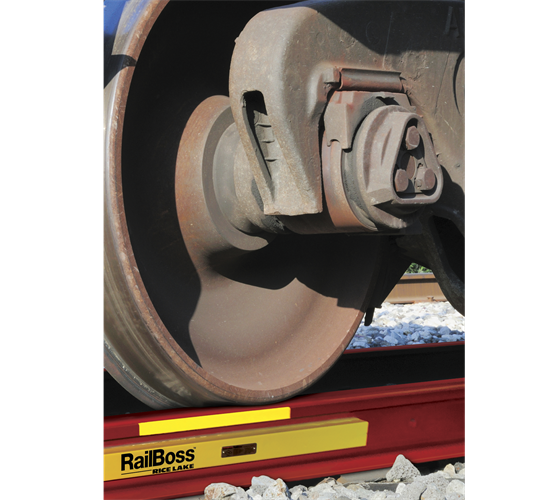

Features
? 80,000lb axle capacity
? 320,000lb full scale capacity
? 40,000lb rail section capacity
? 90RA, 115RE or 132RE rail sections

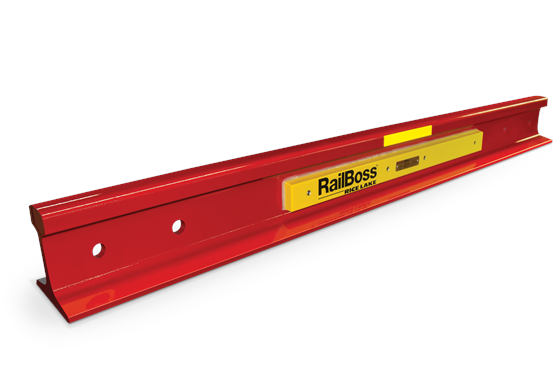

? 5ft 10in rail sections, pre-drilled for joint bars
? Quick-disconnect cable connection with MS style connector
Full Draft Package Includes:
? (8) 5ft 10in rail sections
? 30ft of connecting cable per rail section
? Pre-drilled joint bars with connection hardware
? (2) Rice Lake junction boxes with transient protection
? 30ft of homerun cable
Double Draft Package Includes:
? (4) 5ft 10in rail sections
? 30ft of connecting cable per rail section
? Pre-drilled joint bars with connection hardware
? (1) Rice Lake junction box with transient protection
? 30ft of homerun cable
Specifications
Load Cells:
40,000 lb
Accuracy:
? 0.25% error typical, interchangeable with other gaged rail products
Full Scale Capacity:
320,000 lb
Axle Capacity:
80,000 lb
Warranty:
Two-year limited warranty
Intrinsic Safety
FM/cFM
Class I, II, III, Division 1, Groups ABCDEFG
T4
Options
? Custom rail sizes are available
? 1280 Enterprise? Series indicator with RailBoss software for full-draft or double-draft applications*
? 920i indicator with RailBoss software for full-draft or double-draft applications*
? Custom cable lengths*Non Legal for Trade
Models
Kits
164748 RailBoss assembly kit, full draft, 90RA rail V2 2,280 lb Consult
164749 RailBoss assembly kit, double draft, 90RA rail V2 1,150 lb Consult
162515 RailBoss assembly kit, full draft, 115RE rail V2 2,550 lb Consult
162516 RailBoss assembly kit, double draft, 115RE rail V2 1,275 lb Consult
164752 RailBoss assembly kit, full draft, 132RE rail V2 2,800 lb Consult
164753 RailBoss assembly kit, double draft, 132RE rail V2 1,400 lb Consult
Single Rail Gauge Assemblies
164750 RailBoss 90 lb gauge assembly V2 (does not include cable) 290 lb Consult
162517 RailBoss 115 lb gauge assembly V2 (does not include cable) 320 lb Consult
164754 RailBoss 132 lb gauge assembly V2 (does not include cable) 350 lb Consult
Instrumentation
119073 Single-channel 920i indicator double draft with RailBoss software 10 lb Consult
119072 Dual-channel 920i indicator full draft with RailBoss software 10 lb Consult
126304 Three-channel 920i indicator full draft with RailBoss software 10 lb Consult
190949 Single-channel 1280 indicator double draft with RailBoss software 11 lb Consult
190951 Dual-channel 1280 indicator full draft with RailBoss software 11 lb Consult
190952 Three-channel 1280 indicator full draft with RailBoss software 11 lb Consult
Hardware
126391 90RA 24 in short toe joint bar set, 4 sets required (2 bars with bolts and nuts) 40 lb Consult
126389 115 RE 24 in short toe joint bar set, 4 sets required (2 bars with bolts and nuts) 50 lb Consult
126390 132 RE 24 in short toe joint bar set, 4 sets required (2 bars with bolts and nuts) 60 lb Consult
126111 90RA isolation joint bar set, 4 sets required (2 bars with bolts and nuts) 40 lb Consult
112702 115RE isolation joint bar set, 4 sets required (2 bars with bolts and nuts) 50 lb Consult
119771 132RE isolation joint bar set, 4 sets required (2 bars with bolts and nuts) 60 lb Consult

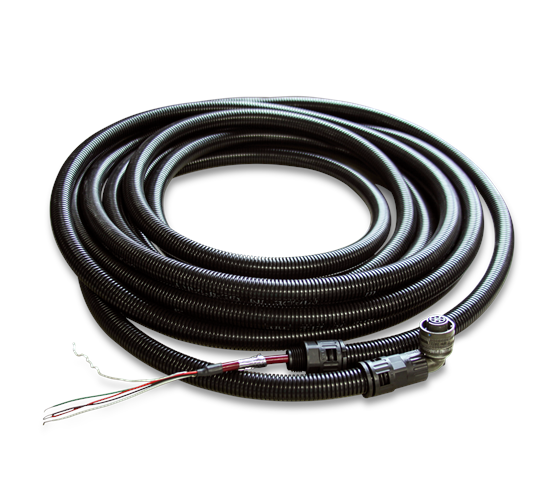

163004 30 ft interface cable – Consult
164873 60 ft interface cable – Consult
164874 100 ft interface cable – Consult
188909 Adaptor cable from AWT Weighline to Rice Lake RailBoss – Consult
Calibration Equipment
115564 RailBoss calibration/test unit 300 lb Consult
119068 Railboss calibration/test until rental 300 lb
