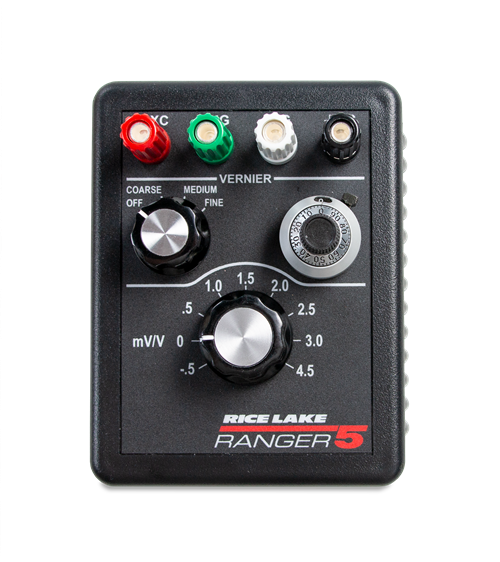

Ranger 5 Variable Range Simulator
$0.00
The Ranger 5 variable range simulator is a full-functioning simulator, well suited for more advanced troubleshooting and calibration needs.
Download product PDF
Features
- ABS plastic case, weighs less than 1 lb
- Fixed rotary switch, -0.5 mV/V to 4.5 mV/V in nine steps of 0.5 mV/V per step
- 10-turn vernier knob with locking graduated dial
- Vernier selection of four ranges: Off, Fine, Medium and Coarse
- Ideal tool for calibrating indicator A/D offset and gain setting
- A/D calibration steps for -0.5 mV/V for offset and 4.5 mV/V for gain
- Used in testing, troubleshooting and calibrating digital weight indicator
Options
| 68031 |
Simulator,Ranger 5 Selectable .5 MV Steps w/ Vernier |
