Ranger 7000

$0.00

Simplifying Even the Most Complex Industrial Applications.

Ten advanced modes simplify complex applications and minimize the need for manual calculation while controlling peripheral devices and/or a scale platform with option kit. With one second stabilization time, up to 350,000d display resolution and Legal for Trade certifications, Ranger 7000’s precision cannot be matched by any scale in its class.

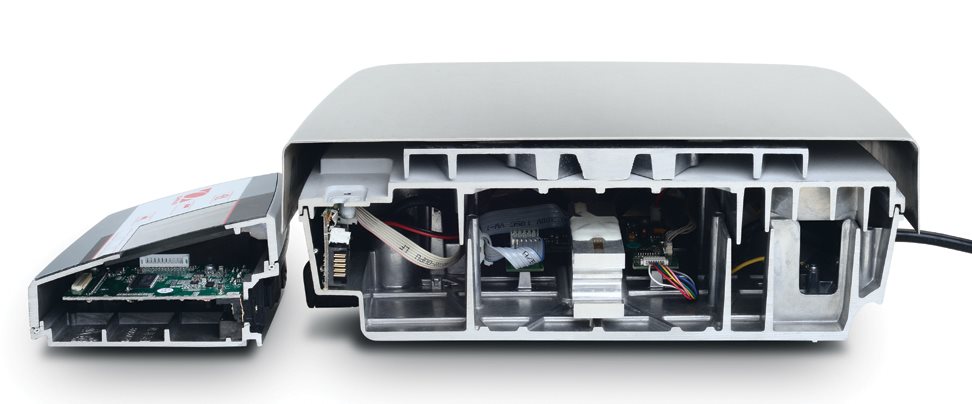

  • Ranger 7000 was developed to thrive in rugged and harsh industrial environments. This modular scale was built with IP54 metal housing and sealed metal indicator to ensure durability.
  • Download product PDF

    Features

    • Applications? Weighing, Parts Counting with Auto Optimization, Percent Weighing, Advanced Checkweighing, Animal/Dynamic Weighing, Display Hold, Filling, Formulation, Differential Weighing, Density Determination, Sieve Analysis
    • Display? 4.3″ (109 mm) Full-color WQVGA graphic display with user-controlled brightness
    • Operation? AC power (included) or rechargeable battery (accessory sold separately)
    • Communication? Easy access communication port including standard USB and RS232 (included) and an optional third port of RS232 or Ethernet (accessories sold separately). GLP/GMP Data Output with Real Time Clock. Data Transfer Function.
    • Construction? Modular design, die-cast housing, removable stainless steel platform, integral weigh below hook, menu lock switch, level indicator
    • Design Features? Checkweighing lights with selectable operation and audible signal settings, several selectable operating languages, selectable environmental and autoprint settings, stability indicator, overload/underload indicators, selectable brightness settings, auto-dim, auto-sleep, auto tare, chain tare

    Options

    Alibi Memory Kit? 80500503
    RS232 Kit? 30037448
    Painted Column Kit? 30095408
    Discrete I/O Kit? 30097591
    Ethernet Kit? 30037447
    Cable Extension Kit, 9m? 30101495
    Remote Base Kit? 30097590
    Rechargeable Battery? 30041295
    SF40A Impact Printer? 30064203
    In Use Cover? 30135320
    RS232 cable for reference balance? 30057595
    Auxiliary Display? 30472064

    Models

    • Model #:? R71MHD3? Maximum Capacity? 6 lb (3 kg)? Readability? 0.00002 lb (0.01 g)? Readability (Certified)? 0.0002 lb (0.1 g)
    • Model #:? R71MD3? Maximum Capacity? 6 lb (3 kg)? Readability? 0.0001 lb (0.05 g)? Readability (Certified)? 0.001 lb (0.5 g)
    • Model #:? R71MHD6? Maximum Capacity? 15 lb (6 kg)? Readability? 0.00005 lb (0.02 g)? Readability (Certified)? 0.0005 lb (0.2 g)
    • Model #:? R71MD6? Maximum Capacity? 15 lb (6 kg)? Readability? 0.0002 lb (0.1 g)? Readability (Certified)? 0.002 lb (1 g)
    • Model #:? R71MHD15? Maximum Capacity? 30 lb (15 kg)? Readability? 0.0002 lb (0.1 g)? Readability (Certified)? 0.002 lb (1 g)
    • Model #:? R71MD15? Maximum Capacity? 30 lb (15 kg)? Readability? 0.0005 lb (0.2 g)? Readability (Certified)? 0.005 lb (2 g)
    • Model #:? R71MHD35? Maximum Capacity? 70 lb (35 kg)? Readability? 0.0002 lb (0.1 g)? Readability (Certified)? 0.002 lb (1 g)
    • Model #:? R71MD35? Maximum Capacity? 70 lb (35 kg)? Readability? 0.001 lb (0.5 g)? Readability (Certified)? 0.01 lb (5 g)
    • Model #:? R71MD60? Maximum Capacity? 150 lb (60 kg)? Readability? 0.002 lb (1 g)? Readability (Certified)? 0.02 lb (10 g
