RD-232 Remote Display

$0.00

For displaying weight data separately from your indicator/controller, the RD-232 is a highly readable choice for both indoor and outdoor applications.

Download product PDF
Category:

Features

  • NEMA Type 4X Fiberglass-Reinforced Polyester (FRP) wall-mount enclosure
  • Optional NEMA Type 4X stainless steel wall-mount enclosure or NEMA Type 12?panel-mount version
  • Easy-to-read 6-digit 0.8 in (20.3 mm) LED red (standard intensity) or green (sunlight visible)
  • AC or DC operation
  • Four status annunciators
  • Full floating decimal point
  • RS-232 or 20 mA current loop active or passive interface
  • Compatible with a variety of digital weighing indicators; DIP switch selectable intuitive data receiver interprets serial strings

Specifications

Display:
6-digit, 7-segment, 0.8 in (20.32 mm) Light Emitting Diode (LED)
Red (standard intensity)
Green (sunlight visible)

Status Annunciators:
lb, kg, gross, net

Operating Voltage:
115 VAC, ?10% 60 Hz,
DC Voltage Range: 6.2-18 VDC
230 VAC available

Input Interface:
RS-232, 20 mA active or passive current loop, standard
ASCII compatible

Baud Rate:
Selectable: 300, 600, 1200, 2400, 4800, 9600, 19200

Operating Temperature:
-13?F to 104?F (-25?C to 40?C)

Rating/Material:
NEMA Type 4X FRP or optional stainless steel

Weight:
Approximately 5 lb (2.3 kg)
Stainless steel unit, approximately 6 lb (2.7 kg)

Warranty:
One-year limited warranty

Models

Green LED

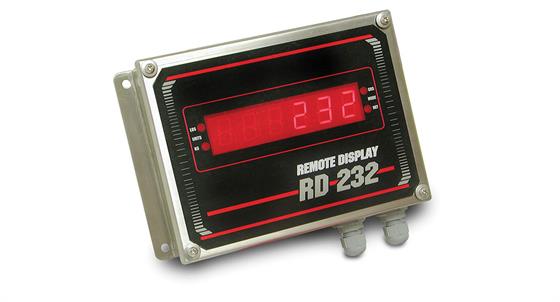

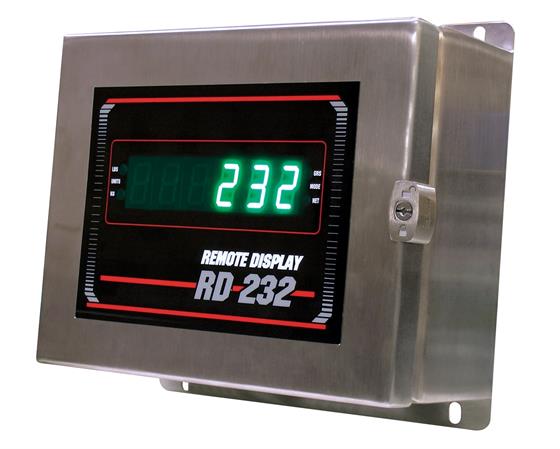

Part #?178168 Product DescriptionDSPL,Remote Wall RD-232 G Green .8in LED 117VAC/12VDC Serial FRP NEMA 4X

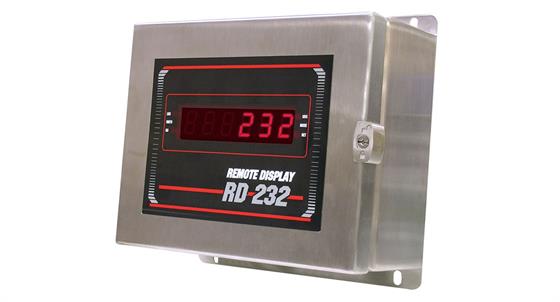

Part #?178169 Product DescriptionDSPL,Remote Wall RD-232 G Green .8 LED 117 VAC/12 VDC Serial SST Compact Enclosure
Part #?178170 Product DescriptionDSPL,Remote Wall RD-232 G Green .8 LED 117VAC/12VDC Serial SST NEMA 4
Part #?178171 Product DescriptionDSPL,Remote Wall RD-232 G Green .8 in. LED 220 VAC Serial FRP NEMA 4x

Red LED

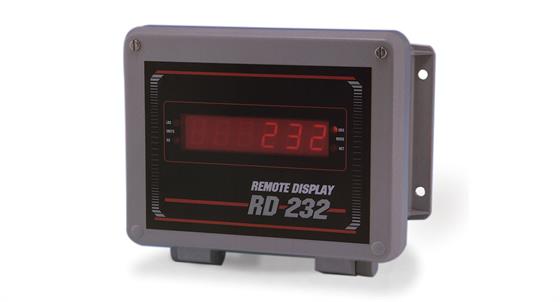

Part #?32716 Product DescriptionDSPL,Remote Wall RD-232 .8in LED 117VAC/12VDC Serial FRP NEMA 4X
Part #?68786 Product DescriptionDisplay,Remote Wall RD232 .8 LED 117 VAC/12 VDC Serial SST Compact Enclosure
Part #?32717 Product DescriptionDSPL,Remote Wall RD-232 .8 LED 117VAC/12VDC Serial SST NEMA 4
Part #?32727 Product DescriptionDSPL,Remote RD-232 .8in LED 117VAC/12VDC Serial SST Panel Mount
Part #?34748 Product DescriptionDSPL,Remote Wall RD232 8 in. LED 220 VAC Serial FRP NEMA 4x
