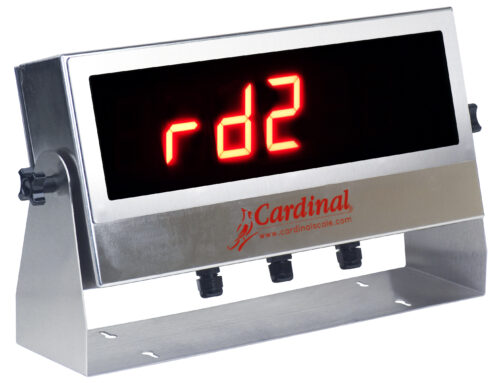

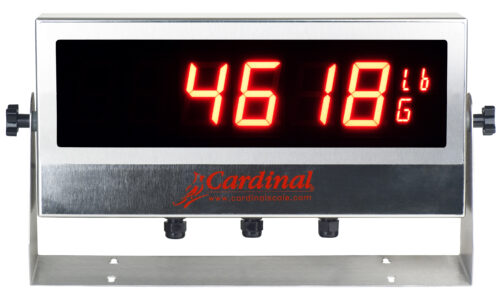

RD2 – 2.25-in LED

$0.00

The RD2 has a rugged IP66 stainless steel enclosure that offers protection from water and dust inherent in industrial environments and a 2.25-inch/57 mm high, 6-digit, 7-segment LED display with 10 levels of brightness that makes measurements highly visible for easy viewing up to 150 feet. A bi-directional RS232 serial port, versatile mounting bracket, and compact overall size round out the remaining features for this remote display that is ideal for mid-range weight viewing applications.

Download product PDF
Category:

Features

  • 1 RS232 Serial Port
  • 10 Levels of Brightness
  • 150-ft Viewing Range
  • 2.25-in-high LED Digits
  • Auto-Learn Selects Input Protocol
  • Giant Display Readouts – Compact Overall Size
  • Versatile Mounting Bracket

Specifications

Power Requirements: 94 to 264 VAC, 47/63 Hz Universal Input
Protection Rating: IP66
Operating Environment: -10 to 120º F (-23 to +49º C)
Display: Six-digit, seven-segment, 2.25 in / 57 mm high LED
Interface: 20mA current loop, RS-232
Annunciators: lb, kg, T, t, G, N
Display Capacity: -99999 to 999999
Enclosure: Stainless Steel
Viewing Range: 150
Shipping Weight: 16 lb / 7.3 kg

Models

RD2 Remote Display, 2.25″ LED, 6 Digit, Numeric, Stainless Steel Call For Pricing
