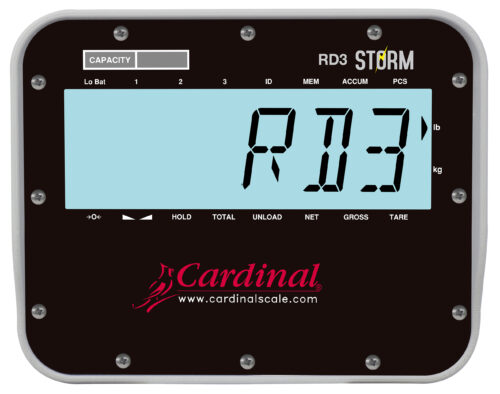

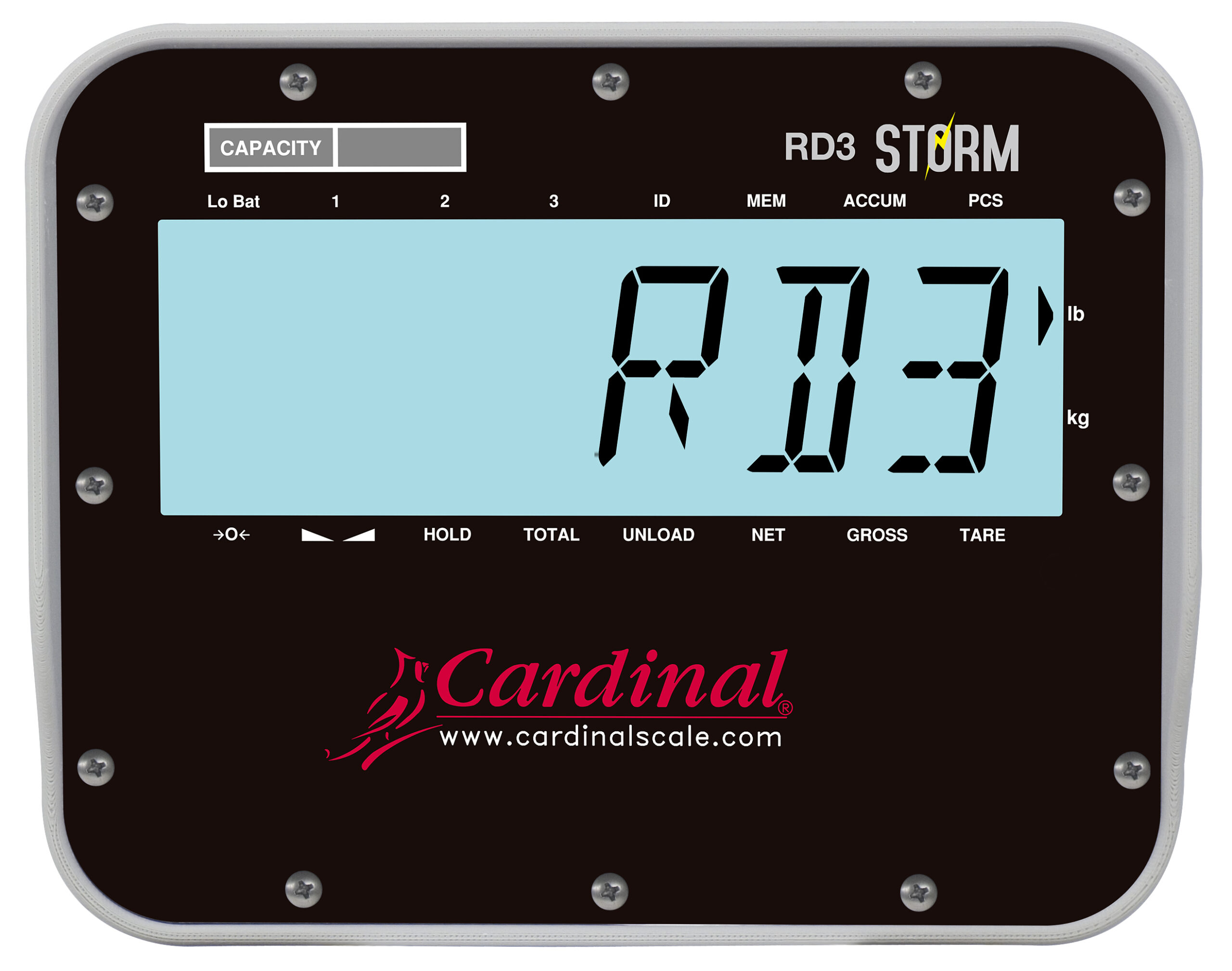

RD3 – 2-in LCD

$0.00

With a tough polycarbonate shell and 2-inch/50 mm high back-lit LCD display, the RD3 offers optimum visibility across a broad range of weighing applications and suited well for outdoor conditions. A serial port configurable with auto-detection and multiple display ability, the RD3 is one of Cardinal’s most economical remote display offered.

Download product PDF
Category:

Features

  • 1 Serial Port Configurable with Auto-Detection
  • 150-ft Viewing Range
  • 2-in-high Backlit LCD
  • Rugged Polycarbonate Enclosure

Specifications

Character Height: 2 in (51 mm)
Viewing Range: 150 feet
Viewing Angle: Viewable in direct sunlight with a angle of +/- 70 degrees
Number of Characters: Six digit, 14 segment, 2 in high (display)
Display Type: 2 in backlit LCD
Weigh Units: lb, kg
Enclosure Type: IP66 Thermoplastic
Dimensions: 9.0 in H x 11.2 in W x 4.3 in D (229 mm H x 284 mm W x 109 mm D)
Weight: 8 lb / 3.6 kg
Data Input: RS-232 and 20mA Current Loop
Power Requirements: 100 to 240 VAC, 47/63 Hz Universal Input
Power Fuse: 1A (located on power supply)
Operating Temperature: -10 to 120 °F (-23 to 49 °C)

Models

RD3 Remote Display, 2″ LCD, Poly Carbonate Call For Pricing
