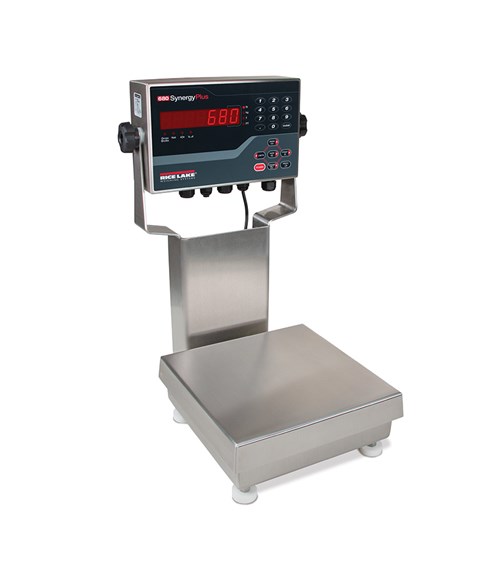

Ready-n-Weigh Bench Scale System CW-90B Scale Base 680 Indicator

$0.00

The CW-90B Ready-n-Weigh Bench Scale System is a complete bench scale, indicator, and column package. Match the CW-90B light-capacity industrial bench scale base with one of Rice Lake’s indicators to fit your application. Available in a range of low- to mid-size dimensions and capacities up to 100 pounds.  Each scale package arrives factory calibrated for quick setup.

Download product PDF
Categories: ,

Features

  • Package includes scale with IP67 aluminum environmentally sealed load cell
    with an indicator and 12-inch column
  • Factory calibrated with indicator setup and configured for 5,000 divisions
  • Scale includes rubber feet to provide exceptional traction and avoid scratching surfaces along with removable top cover for ease of cleaning
  • AC power 100 to 240 VAC
  • LCD backlit indicator display for a variety of environments
  • Battery backed time and date
  • Standard RS-232 serial ports for connecting to a variety of peripherals
  • Ethernet TCP/IP comes standard

Specifications

Load Cell, NTEP Certified:
IP67 aluminum and environmentally sealed

Scale Construction:
304 stainless steel

Maximum Overload:
180% to 200% depending on capacity

Overload Protection:
Five-point, independently adjusted

 Scale Frame:
AISI304L, straight line finish, Ra = 45 +/- 10Scale Cover:
AISI304L, straight line finish, Ra = 45 +/- 10

Cable Length:
34 in



Compensated Temperature Range:
14 °F to 104 °F (-10 °C to 40 °C)

Approvals:
NTEP 95-072, Class III 5,000 d
Measurement Canada AM-5082
CE
cULus

Warranty:
Two-year limited
Communication Ports:
Two RS-232 (three-wire)
RS-485/422 (two-wire or four-wire)
Micro USB (device)
Ethernet TCP/IP (10/100)



Display:
Seven 0.8-inch tall, seven-segment digits

 Status Annunciators:
Eight LED annunciators

Keys/Buttons:
Flat membrane panel, tactile feel
(18 buttons plus ON/OFF)

Rating/Material:
Rating: IP69K (IP66 with RJ45)
Material: AISI 304 Stainless Steel

 Approvals:
NTEP 19-021
Measurement Canada AM-6121C
cULus Listed
CE Marked

Warranty:
Two-year limited

Options

201308 Scale PKG,CW-90B-680 US 10×10 5 lb/2.5 kg with 12 inch column 115-230VAC SST US power cord
201309 Scale PKG,CW-90B-680 US 10×10 10 lb/5 kg with 12 inch column 115-230VAC SST US power cord
201310 Scale PKG,CW-90B-680 US 10×10 25 lb/10 kg with 12 inch column 115-230VAC SST US power cord
201311 Scale PKG,CW-90B-680 US 12×12 25 lb/10 kg with 12 inch column 115-230VAC SST US power cord
201312 Scale PKG,CW-90B-680 US 12×12 50 lb/25 kg with 12 inch column 115-230VAC SST US power cord
201313 Scale PKG,CW-90B-680 US 12×12 100 lb/50 kg with 12 inch column 115-230VAC SST US power cord
