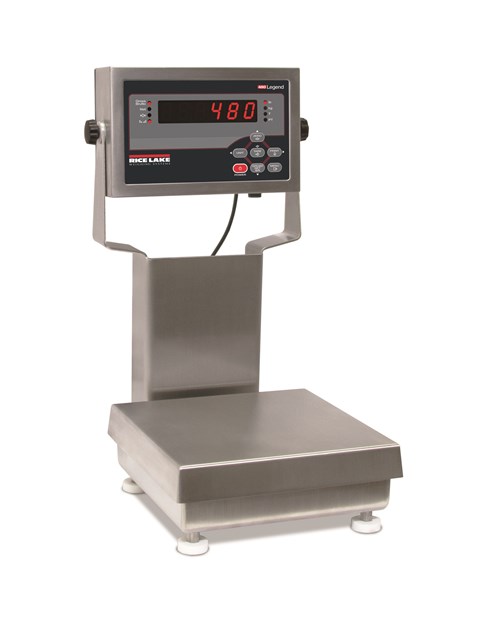

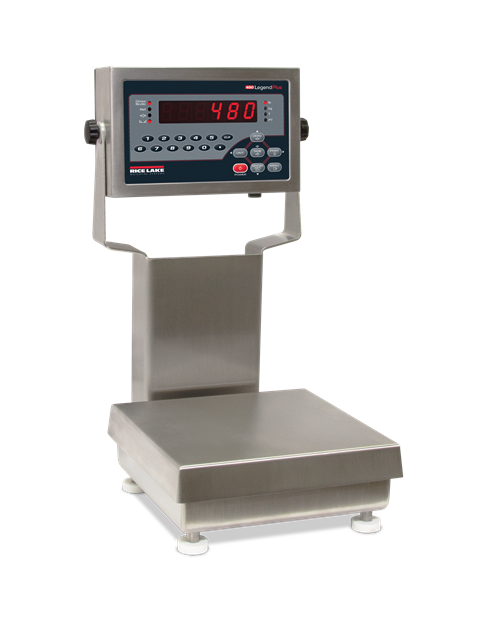

Ready-n-Weigh Bench Scale System CW-90B Scale Base and 480/480 Plus Indicator

$0.00

The CW-90XB Ready-n-Weigh Bench Scale System is a complete bench scale, indicator, and column package. Match the CW-90XB light-capacity industrial bench scale base with one of Rice Lake’s indicators to fit your application. Available in a range of low- to mid-size dimensions and capacities up to 100 pounds.  Each scale package arrives factory calibrated for quick setup.

Download product PDF
Categories: ,

Features

  • Package includes scale with IP69K stainless steel hermetically sealed load cell with an indicator and 12-inch column
  • Factory calibrated with indicator setup and configured for 5,000 divisions
  • Scale includes rubber feet to provide exceptional traction and avoid scratching surfaces along with removable top cover for ease of cleaning
  • AC power 100 to 240 VAC
  • Numeric keypad (480 plus)
  • Battery backed time and date
  • Standard RS-232 serial ports for connecting to peripherals

Specifications

Load Cell, NTEP Certified:
IP69K stainless steel and hermetically sealedScale Construction:
304 stainless steel

Maximum Overload:
180% to 200% depending on capacity

Overload Protection:
Five-point, independently adjusted

 Scale Frame:
AISI304L, straight line finish, Ra = 45 +/- 10Scale Cover:
AISI304L, straight line finish, Ra = 45 +/- 10

Cable Length:
34 in



 Compensated Temperature Range:
14 °F to 104 °F (-10 °C to 40 °C)CW-90XB Approvals:
NTEP CC 95-072, Class III 5,000 d
Measurement Canada AM-5082
Load cell is FM approved

Warranty:
Three-year limited (includes water ingress)
Communication Ports:
Com 1: RS-232 full duplex
Com 2: RS-232 full duplex or 20 mA simplex, continuous
Both ports 1200, 2400, 4800, 9600, 19200, 38400 baud seven or eight data bits, even, odd or no parity		 Display:
LED display 0.8 in (20 mm), six-digit, seven-segmentStatus Annunciators:
Gross, net, center of zero, standstill, lb, kg, tare, preset tare

Keys/Buttons:
Flat membrane panel, embossed keys, tactile feel

 Rating/Material:
Enclosure: NEMA Type 4X/IP66, heavy-gauge stainless steelApprovals:
NTEP 12-123
Measurement Canada AM-5892C
CE Marked
cULus Listed

Warranty:
Two-year limited

Options

201241 Scale PKG, CW-90XB-480 10×10 5 lb/2.5 kg with 12 inch column 115VAC SST
201242 Scale PKG, CW-90XB-480 10×10 10 lb/5 kg with 12 inch column 115VAC SST
201243 Scale PKG, CW-90XB-480 10×10 25 lb/10 kg with 12 inch column 115VAC SST
201244 Scale PKG, CW-90XB-480 12×12 25 lb/10 kg with 12 inch column 115VAC SST
201245 Scale PKG, CW-90XB-480 12×12 50 lb/25 kg with 12 inch column 115VAC SST
201246 Scale PKG, CW-90XB-480 12×12 100 lb/50 kg with 12 inch column 115VAC SST
201247 Scale PKG,CW-90XB-480Plus 10×10 5 lb/2.5 kg with 12 inch column 115VAC SST
201248 Scale PKG,CW-90XB-480Plus 10×10 10 lb/5 kg with 12 inch column 115VAC SST
201249 Scale PKG,CW-90XB-480Plus 10×10 25 lb/10 kg with 12 inch column 115VAC SST
201250 Scale PKG,CW-90XB-480Plus 12×12 25 lb/10 kg with 12 inch column 115VAC SST
201251 201251
201253 201253
