Home / Platform Scales / Bench Scales / Ready-n-Weigh Bench Scale System CW-90XB Scale Base 480/480 Plus Indicator

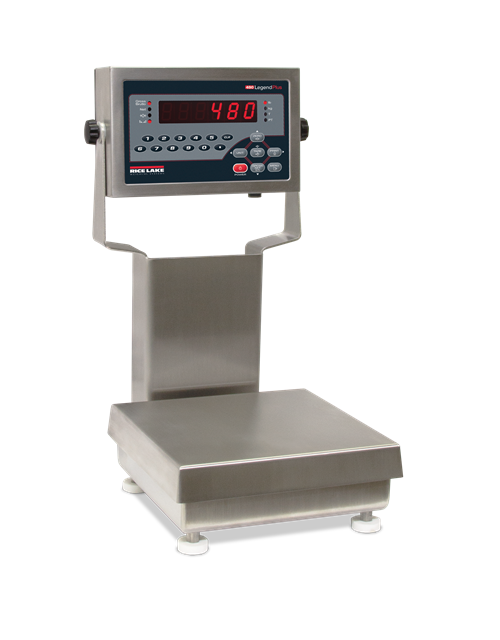

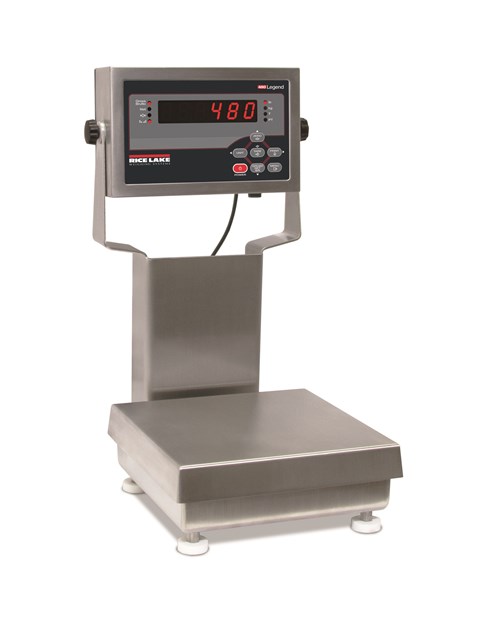

Ready-n-Weigh Bench Scale System CW-90XB Scale Base 480/480 Plus Indicator $ 0.00
The CW-90XB Ready-n-Weigh Bench Scale System is a complete bench scale, indicator, and column package. Match the CW-90XB light-capacity industrial bench scale base with one of Rice Lake’s indicators to fit your application. Available in a range of low- to mid-size dimensions and capacities up to 100 pounds. Each scale package arrives factory calibrated for quick setup
Download product PDF
Features
Package includes scale with IP69K stainless steel hermetically sealed load cell with an indicator and 12-inch column
Factory calibrated with indicator setup and configured for 5,000 divisions
Scale includes rubber feet to provide exceptional traction and avoid scratching surfaces along with removable top cover for ease of cleaning
AC power 100 to 240 VAC
Numeric keypad (480 plus)
Battery backed time and date
Standard RS-232 serial ports for connecting to peripherals
Specifications
Load Cell, NTEP Certified:
IP69K stainless steel and hermetically sealed
Scale Construction:
304 stainless steel
Maximum Overload:
180% to 200% depending on capacity
Overload Protection:
Five-point, independently adjusted
Scale Frame:
AISI304L, straight line finish, Ra = 45 +/- 10
Scale Cover:
AISI304L, straight line finish, Ra = 45 +/- 10
Cable Length:
34 in
Compensated Temperature Range:
14 °F to 104 °F (-10 °C to 40 °C)
CW-90XB Approvals:
NTEP CC 95-072, Class III 5,000 d
Measurement Canada AM-5082
Load cell is FM approved
Warranty:
Three-year limited (includes water ingress)
Communication Ports:
Com 1: RS-232 full duplex
Com 2: RS-232 full duplex or 20 mA simplex, continuous
Both ports 1200, 2400, 4800, 9600, 19200, 38400 baud seven or eight data bits, even, odd or no parity
Display:
LED display 0.8 in (20 mm), six-digit, seven-segment
Status Annunciators:
Gross, net, center of zero, standstill, lb, kg, tare, preset tare
Keys/Buttons:
Flat membrane panel, embossed keys, tactile feel
Rating/Material:
Enclosure: NEMA Type 4X/IP66, heavy-gauge stainless steel
Approvals:
NTEP 12-123
Measurement Canada AM-5892C
CE Marked
cULus Listed
Warranty:
Two-year limited
Options
201241
Scale PKG, CW-90XB-480 10×10 5 lb/2.5 kg with 12 inch column 115VAC SST
201242
Scale PKG, CW-90XB-480 10×10 10 lb/5 kg with 12 inch column 115VAC SST
201243
Scale PKG, CW-90XB-480 10×10 25 lb/10 kg with 12 inch column 115VAC SST
201244
Scale PKG, CW-90XB-480 12×12 25 lb/10 kg with 12 inch column 115VAC SST
201245
Scale PKG, CW-90XB-480 12×12 50 lb/25 kg with 12 inch column 115VAC SST
201246
Scale PKG, CW-90XB-480 12×12 100 lb/50 kg with 12 inch column 115VAC SST
201247
Scale PKG,CW-90XB-480Plus 10×10 5 lb/2.5 kg with 12 inch column 115VAC SST
201248
Scale PKG,CW-90XB-480Plus 10×10 10 lb/5 kg with 12 inch column 115VAC SST
201249
Scale PKG,CW-90XB-480Plus 10×10 25 lb/10 kg with 12 inch column 115VAC SST
201250
Scale PKG,CW-90XB-480Plus 12×12 25 lb/10 kg with 12 inch column 115VAC SST
201251
201251
201253
201253
