Rice Lake Farm Bars with 380 Indicator

$0.00

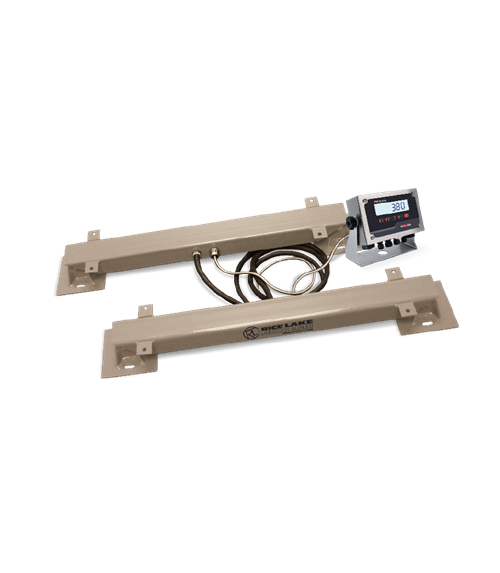

Durable and Versatile Livestock Weigh Bars

Farm Bar animal scales are available in three capacities and cover a variety of weighing applications. These heavy-duty, electronic load cell scales can be mounted under most cattle squeeze chutes, hog crates, feed hoppers and custom platforms.

Download product PDF
Category:

Features

  • Indicator cable length 12 ft
  • 3 ft ArmorGuard cable included
  • Kit includes 380 Synergy Series digital weight indicator powered by 4 C-cell batteries (not included)
  • Factory calibrated when sold with instrumentation
  • Capacities from 2,500 to 10,000 lb
  • Non-Legal for Trade

Specifications

Safe Overload:
150%

Full Scale Output:
3mv/V nominal
Output is standardized for each model of load bar, consult factory for details

Maximum Excitation:
15 VDC

 Nonlinearity:
0.02% full scale

Hysteresis:
0.02% full scale

Bridge Resistance:
350 ohm



 Temperature Range:
-40 °F to 111 °F (-40 °C to 44 °C)

Cable Configuration:
8 ft between bars and 12 ft for the indicator

Warranty:
Two-year limited
Power:
Batteries: 4 alkaline C-cell (not included)
Optional: 115/230 VAC to 12 VDC adapter

Battery Life:
100 hours with 1 × 350 ohm load cell, no backlight

 Communication Ports:
One RS-232 (three-wire)
One USB 2.0

Annunciators:
g, lb, t, tn, kg, oz, battery level, PT, LT, gross, zero, unstable, net

Display:
Six 1 in (25 mm) tall, LCD digits

 Keys/Buttons:
5 tactile buttons

Rating/Material:
IP66
Stainless steel

Approvals:
NTEP 21-051
Measurement Canada AM-6184
CE
cULus
