Rice Lake RL1010 Aluminum, Potted & Unpotted Single Point Load Cell

$0.00

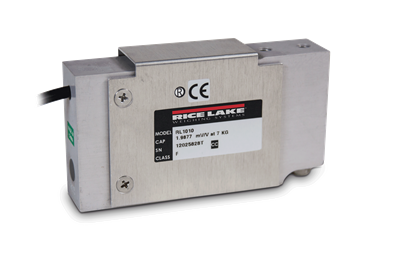

The Rice Lake RL1010 potted and unpotted single-point, aluminum load cell is an off-center loading load cell designed for direct mounting of the weighing platform and simplifying construction of platform scales.

Download product PDF
Categories: ,

Specifications

Full Scale Output:
2.0 mV/V

Output Resistance:
350 (? 3) ohms, nominal

Input Resistance:
415 (? 15) ohm

Material/Finish:
Anodized aluminum

Temperature:
Compensated range
14?F to 104?F/-10?C to 40?C
Operating range
0? F to 150? F/-18? C to 65? C

Safe Overload:
150% at center of loading point, full scale

Rated Excitation:
5-10 VDC (15 V maximum)

Total Error:
0.02% Full scale

Insulation Resistance:
5,000 megohms

Deflection at Capacity:
3 kg-90 kg=0.015 in (0.4 mm)

Seal Type:
Potted, IP67
Unpotted, IP65

Cable Length:
Potted 3.1 m (10 ft)
Unpotted 0.9 m (3 ft)

Cable Diameter:
0.200/PVC jacket

Cable Color Code:
Green………………….+ Excitation
Black…………………..? Excitation
Blue…………………….+ Sense
Brown…………………..? Sense
Red………………………+ Signal
White……………………? Signal

Max Platform Size:
15.75 in x 15.75 in

Warranty:
Two-year limited warranty

Approvals:
cFMus
NTEP

Models

50819 Load Cell,SPT RL1010-10kg 10kg 10ft 2mV/V 350 OHM NTEP III 5 S FM AL Potted IP65
50820 Load Cell,SPT RL1010-15kg 15kg 10ft 2mV/V 350 OHM NTEP III 5 S FM AL Potted IP65
50821 Load Cell,SPT RL1010-20kg -00-0001 20kg 10ft 2mV/V 350 OHM NTEP III 5 S FM AL Potted IP65
50822 Load Cell,SPT RL1010-30kg 30kg 10ft 2mV/V 350 OHM NTEP III 5 S FM AL Potted IP65
50823 Load Cell,SPT RL1010-50kg -00-0001 50kg 10ft 2mV/V 350 OHM NTEP III 5 S FM AL Potted IP65
