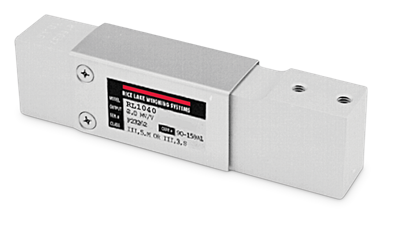

Rice Lake RL1040 Aluminum, Potted and Unpotted Single Point Load Cell
$0.00
The Rice Lake RL1040 Aluminum, Potted and Unpotted Single Point Load Cell is designed for direct mounting of a weighing platform, hanging scales and other low-capacity beam applications.
Temperature:
Compensated range
14?F to 104?F/-10?C to 40?C
Operating range
0? F to 150? F/-18? C to 65? C
Safe Overload:
200% at center loading point, full scale
Rated Excitation:
5-10 VDC (15 V maximum)
Total Error:
0.02% Full scale
Insulation Resistance:
2,000 megohms
Deflection at Capacity:
3 kg-100 kg=0.4 mm (0.015 in)
Seal Type:
Potted, IP67
Unpotted, IP65
Cable Length:
3.1 m (10 ft)
Cable Diameter:
0.20/PVC jacket
Cable Color Code:
Green………………….+ Excitation
Black…………………..? Excitation
Blue …………………….+ Sense
Brown ………………….? Sense
Red ……………………..+ Signal
White ………………….? Signal
Max Platform Size:
15.75 in x 15.75 in
Warranty:
Two-year limited warranty
Approvals:
cFMus
NTEP
Models
32860
Load Cell,SPT RL1040-N5- 7kg 7kg 10ft 2mV/V 350 OHM NTEP III 5 S AL Potted FM IP65
32861
Load Cell,SPT RL1040-N5- 10kg 10kg 10ft 2mV/V 350 OHM NTEP III 5 S Al Potted FM IP65
32862
Load Cell,SPT RL1040-N5- 15kg 15kg 10ft 2mV/V 350 OHM NTEP III 5 S Al Potted FM IP65
32863
Load Cell,SPT RL1040-N5- 20kg 20kg 10ft 2mV/V 350 OHM NTEP III 5 S Al Potted FM IP65
32864
Load Cell,SPT RL1040-N5- 30kg 30kg 10ft 2mV/V 350 OHM NTEP III 5 S Al Potted FM IP65
32865
Load Cell,SPT RL1040-N5- 50kg 50kg 10ft 2mV/V 350 OHM NTEP III 5 S Al Potted FM IP65
32866
Load Cell,SPT RL1040-N5- 100kg 100kg 10ft 2mV/V 350 OHM NTEP III 5 S Al Potted FM IP65
