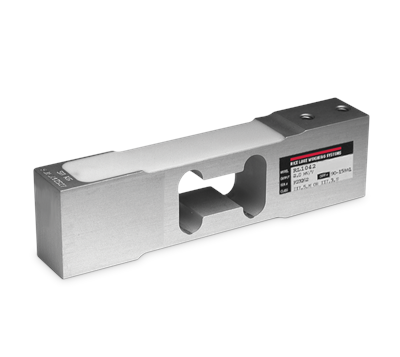

Rice Lake RL1042 Aluminum, Single-Point Load Cell

The Rice Lake RL1042 is a low-profile, single-point load cell for platform weighing offering high immunity to side forces with special coating to provide humidity resistance.

Unfortunately this product has been DISCONTINUED. For similar products click here.
Categories: ,

Specifications

Full Scale Output:
2.0 mV/V

Output Resistance:
350 (? 3) ohm

Input Resistance:
415 (? 15) ohm

Material/Finish:
Aluminum

Temperature:
Compensated range
14?F to 104?F (-10?C to 40?C)
Operating range
0?F to 150?F (-18?C to 65?C)

Safe Overload:
150% full scale
Over-center loading point

Rated Excitation:
5-10 VDC (15 V maximum)

Total Error:
0.02% full scale

Deflection at Capacity:
1 kg-100 kg=0.015 in (0.4 mm)

Insulation Resistance:
2,000 megohms

Seal Type:
Environmentally sealed, IP66

Cable Length:
10 ft (3.1 m)

Cable Diameter:
0.200 PVC jacket

Cable Color Code:
Green………………….+ Excitation
Black…………………..? Excitation
Blue …………………….+ Sense
Brown ………………….? Sense
Red ……………………..+ Signal
White ………………….? Signal

Platform Size:
16 in x 16 in

Warranty:
Two-year limited warranty

Approvals:
FM
NTEP
OIML (Available upon request)

Models



40955 Load Cell,SPT RL1042-1kg 10ft 2mV/V 350 OHM NTEP III 5 S FM Al Class I
40956 Load Cell,SPT RL1042-3kg 10ft 2mV/V 350 OHM NTEP III 5 S FM Al Class I
40957 Load Cell,SPT RL1042-5kg 10ft 2mV/V 350 OHM NTEP III 5 S FM Al Class I
40958 Load Cell,SPT RL1042-10kg 10ft 2mV/V 350 OHM NTEP III 5 S FM Al Class I
40959 Load Cell,SPT RL1042-15kg 10ft 2mV/V 350 OHM NTEP III 5 S Al Class I
40960 Load Cell,SPT RL1042-20kg 10ft 2mV/V 350 OHM NTEP III 5 S FM Al Class I
40961 Load Cell,SPT RL1042-30kg 10ft 2mV/V 350 OHM NTEP III 5 S FM Al Class I
40962 Load Cell,SPT RL1042-50kg 10ft 2mV/V 350 OHM NTEP III 5 S FM Al Class I
40963 Load Cell,SPT RL1042-75kg 10ft 2mV/V 350 OHM NTEP III 5 S FM Al Class I
40964 Load Cell,SPT RL1042- 100kg 10ft 2mV/V 350 OHM NTEP III 5 S FM Al Class I
