Rice Lake RL1140 Stainless Steel, Potted Single Point Load Cell

$0.00

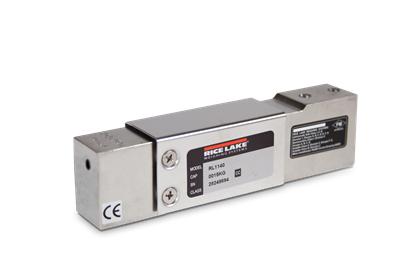

The Rice Lake RL1140 potted, single-point load cell is constructed of stainless steel and designed to perform in harsh, high shock-load environments such as packaging and process weighing equipment.
Download product PDF
Categories: ,

Specifications

Full Scale Output:
2.0 mV/V

Output Resistance:
350 (? 3) ohm, nominal

Input Resistance:
415 (? 15) ohm

Material/Finish:
Stainless steel

Temperature:
Operating range
0? F to 150? F/-18? C to 65? C

Safe Overload:
200% at center loading point,
full scale

Rated Excitation:
5-10 VDC (15 V maximum)

Total Error:
0.02% Full scale

Insulation Resistance:
2,000 megohms

Deflection at Capacity:
15 kg-150 kg=0.4 mm (0.015 in)

Seal Type:
Environmentally sealed, IP67

Cable Length:
3.1 m (10 ft)

Cable Diameter:
0.20/PVC jacket

Cable Color Code:
Green………………….+ Excitation
Black…………………..? Excitation
Blue …………………….+ Sense
Brown ………………….? Sense
Red …………………….+ Signal
White ………………….? Signal

Max Platform Size:
15.75 in x 15.75 in

Warranty:
Two-year limited warranty

Approvals:
cFMus

Models

17544 Load Cell,SPT RL1140-15kg 15kg 10ft 2mv/v 350 Ohm FM IP65 SST Class F Potted
17545 Load Cell,SPT RL1140-30kg 30kg 10ft 2mv/v 350 Ohm FM IP65 SST Class F Potted
17546 Load Cell,SPT RL1140-50kg 50kg 10ft 2mv/v 350 Ohm FM IP65 SST Class F Potted
17547 Load Cell,SPT RL1140-75kg 75kg 10ft 2mv/v 350 Ohm FM IP65 SST Class F Potted
17548 Load Cell,SPT RL1140- 100kg 10ft 2mv/v 350 Ohm FM IP65 SST Class F Potted
36467 Load Cell,SPT RL1140- 150kg 150kg 10ft 2mV/V 350 OHM SST Potted FM IP65
