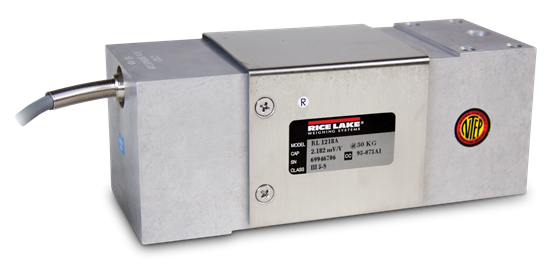

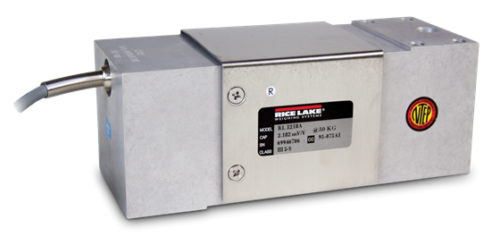

Rice Lake RL1218A Aluminum, Single Point Load Cell

$0.00

The Rice Lake RL1218A Aluminum, Single Point Load Cell is a single point high-capacity, off-center-loading load cell. It weighs loads from 110.2 to 2,204.6 pounds (50 to 1,000 kilograms). These load cells with potted cavities offer excellent performance in damp environments.

Download product PDF
Categories: ,

Specifications

Full Scale Output:
2.0 mV/V nominal

Output Resistance:
350 (? 3) ohm

Input Resistance:
415 (? 15) ohm

Material/Finish:
Anodized aluminum

Temperature:
Compensated range
14?F to 104?F (-10?C to 40?C)
Operating range
0? F to 150? F (-18? C to 65? C)

Seal Type:
Environmentally sealed, IP67

Safe Overload:
150% full scale

Rated Excitation:
5-10 VDC (15 VDC Max)

Insulation Resistance:
>5,000 megohms

Cable Length:
10 ft (3.1 m)

Cable Color Code:
Green +Excitation
Black ?Excitation

Red +Signal

White ?Signal
Blue +Sense

Yellow ?Sense

Warranty:
Two-year limited warranty

Approvals:
cFMusus
NTEP

Models

191096 Load Cell, SPT RL1218A- 50kg 10ft 2mv/v 350 Ohm AL NTEP III 5 S FM IP67
191097 Load Cell, SPT RL1218A- 75kg 10ft 2mv/v 350 Ohm AL NTEP III 5 S FM IP67
191098 Load Cell, SPT RL1218A- 100kg 10ft 2mv/v 350 Ohm AL NTEP III 5 S FM IP67
191099 Load Cell, SPT RL1218A- 150kg 10ft 2mv/v 350 Ohm AL NTEP III 5 S FM IP67
191100 Load Cell, SPT RL1218A- 200kg 10ft 2mv/v 350 Ohm AL NTEP III 5 S FM IP67
191101 Load Cell, SPT RL1218A- 250kg 10ft 2mv/v 350 Ohm AL NTEP III 5 S FM IP67
191102 Load Cell, SPT RL1218A- 300kg 10ft 2mv/v 350 Ohm AL NTEP III 5 S FM IP67
191103 Load Cell, SPT RL1218A- 500kg 10ft 2mv/v 350 Ohm AL NTEP III 5 S FM IP67
191104 Load Cell, SPT RL1218A- 635kg 10ft 2mv/v 350 Ohm AL NTEP III 5 S FM IP67
191105 Load Cell, SPT RL1218A- 1000kg 10ft 2mv/v 350 Ohm AL NTEP III 5 S FM IP67
