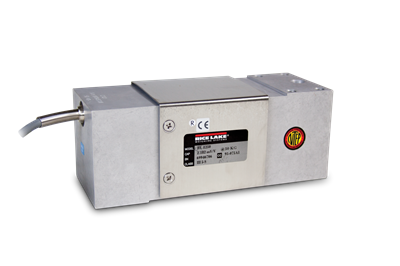

Rice Lake RL1250 Aluminum, Single-Point Load Cell

The Rice Lake RL1250 Aluminum, Single-Point Load Cell accurately weighs loads from 110.2?pounds to 2204.6?pounds (50?kilograms to 1000?kilograms) while maintaining long-term stability and durability.

Unfortunately this product has been DISCONTINUED. For similar products click here.
Categories: ,

Specifications

Full Scale Output:
2.0 mV/V

Output Resistance:
350 (? 3) ohm

Input Resistance:
415 (? 15) ohm

Material/Finish:
Anodized aluminum

Temperature:
Compensated range
14?F to 104?F/-10?C to 40?C
Operating range
0? F to 150? F/-18? C to 65? C

Safe Overload:
150% of full scale at center
loading point

Rated Excitation:
5-10 VAC/DC (15 V maximum)

Total Error:
.02% full scale

Insulation Resistance:
5,000 megohms

Deflection at Capacity:
50 kg-1,000 kg=0.4 mm (0.015 in)

Seal Type:
Environmentally sealed, IP67

Cable Length:
3.1 m (10 ft)

Cable Diameter:
0.220 polyurethane jacket

Cable Color Code:
Green………………….+ Excitation
Black…………………..? Excitation
Blue …………………….+ Sense
Brown ………………….? Sense
Red …………………….+ Signal
White ………………….? Signal

Max Platform Size:
24 in x 24 in

Warranty:
Two-year limited warranty

Approvals:
cFMus
NTEP

Models



32849 Load Cell,SPT RL1250-N5- 50kg 50kg 10ft 2mV/V 350 OHM NTEP III 5 S Al Potted FM
32856 Load Cell,SPT RL1250-N5- 75kg 75kg 10ft 2mV/V 350 OHM NTEP III 5 S Al Potted FM
32855 Load Cell,SPT RL1250-N5- 100kg 100kg 10ft 2mV/V 350 OHM NTEP III 5 S Al Potted FM
32854 Load Cell,SPT RL1250-N5- 150kg 150kg 10ft 2mV/V 350 OHM NTEP III 5 S Al Potted FM
32853 Load Cell,SPT RL1250-N5- 200kg 200kg 10ft 2mV/V 350 OHM NTEP III 5 S Al Potted FM
32852 Load Cell,SPT RL1250-N5- 250kg 250kg 10ft 2mV/V 350 OHM NTEP III 5 S Al Potted FM
32851 Load Cell,SPT RL1250-N5- 300kg 300kg 10ft 2mV/V 350 OHM NTEP III 5 S Al Potted FM
32850 Load Cell,SPT RL1250-N5- 500kg 500kg 10ft 2mV/V 350 OHM NTEP III 5 S Al Potted FM
32857 Load Cell,SPT RL1250-N5- 635kg 635kg 10ft 2mV/V 350 OHM NTEP III 5 S Al Potted FM
32858 Load Cell,SPT RL1250-N5- 1000kg 1000kg 10ft 2mV/V 350 OHM Al Potted NTEP III 5 S FM
