DISCONTINUED

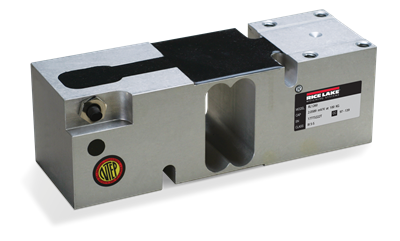

Rice Lake RL1260 Aluminum, Single-Point Load Cell

The Rice Lake RL1260 Aluminum, Single-Point Load Cell is of the two-beam design and is specially coated to assure durability in harsh environments.

Unfortunately this product has been DISCONTINUED. For similar products click here.
Categories: ,

Specifications

Full Scale Output:
2.0 mV/V

Output Resistance:
350 (? 3) ohm

Input Resistance:
415 (? 15) ohm

Material/Finish:
Anodized aluminum

Temperature:
Compensated range
14?F to 104?F/-10?C to 40?C
Operating range
0? F to 150? F/-18? C to 65? C

Safe Overload:
150% of full scale at center loading point

Rated Excitation:
5-10 VDC (15 V maximum)

Total Error:
0.02% full scale

Insulation Resistance:
5,000 megohms

Seal Type:
Environmentally sealed, IP67

Cable Length:
3.1 m (10 ft)

Cable Diameter:
0.220 polyurethane jacket

Cable Color Code:
Green………………….+ Excitation
Black…………………..? Excitation
Blue …………………….+ Sense
Brown ………………….? Sense
Red …………………….+ Signal
White ………………….? Signal

Max Platform Size:
24 in x 24 in

Warranty:
Two-year limited warranty

Approvals:
cFMus
NTEP

Models

41020 Load Cell,SPT RL1260-50kg 10ft 2mV/V 350 OHM NTEP III 5 S FM Al IP66
41021 Load Cell,SPT RL1260-75kg 10ft 2mV/V 350 OHM NTEP III 5 S FM Al IP66
41022 Load Cell,SPT RL1260- 100kg 10ft 2mV/V 350 OHM NTEP III 5 S FM Al IP66
158469 Load Cell, SPT RL1260- 150kg 10ft 2mv/v 350 Ohm NTEP III 5 S FM AL
41023 Load Cell,SPT RL1260- 200kg 10ft 2mV/V 350 OHM NTEP III 5 S FM Al IP66
41024 Load Cell,SPT RL1260- 250kg 10ft 2mV/V 350 OHM NTEP III 5 S FM Al IP66
41025 Load Cell,SPT RL1260- 300kg 10ft 2mV/V 350 OHM NTEP III 5 S FM Al IP66
41026 Load Cell,SPT RL1260- 500kg 10ft 2mV/V 350 OHM NTEP III 5 S FM Al IP66
41027 Load Cell,SPT RL1260- 635kg 10ft 2mV/V 350 OHM NTEP III 5 S FM Al IP66
