Rice Lake RL1380 Stainless Steel, Single-Point Load Cell

$0.00

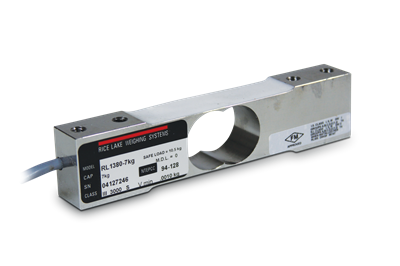

The Rice Lake RL1380 single-point load cell is constructed of stainless steel, and is designed for high performance in harsh environments.

Download product PDF
Categories: ,

Specifications

Full Scale Output:
2.0mV/V

Output Resistance:
350 (? 3) ohm

Input Resistance:
350 ohm

Material/Finish:
Stainless steel

Temperature:
Compensated range
14?F to 104?F/-10?C to 40?C
Operating range
0? F to 150? F/-18? C to 65? C

Safe Overload:
150% Full scale

Rated Excitation:
5-10 VDC (15 V maximum)

Combined Error:
0.03% Full scale

Insulation Resistance:
1,000 megohms

Seal Type:
Environmentally sealed, IP67

Cable Length:
3.1 m (10 ft)

Cable Diameter:
0.190 polyurethane jacket

Cable Color Code:
Green………………….+ Excitation
Black…………………..? Excitation
White …………………+ Signal
Red ……………………? Signal
Yellow ……………….. Shield

Deflection:
<0.4mm FS

Max Platform Size:
15.75in x 15.75in

Warranty:
Two-year limited warranty

Approvals:
FM
NTEP

Models

30783 Load Cell,SPT RL1380-7kg 7kg 10ft 2mV/V 350 OHM EW NTEP III 3 S SST IP67
30782 Load Cell,SPT RL1380-10kg 10kg 10ft 2mV/V 350 OHM EW NTEP III 3 S SST IP67
30781 Load Cell,SPT RL1380-15kg 15kg 10ft 2mV/V 350 OHM EW NTEP III 3 S SST IP67
30780 Load Cell,SPT RL1380-30kg 30kg 10ft 2mV/V 350 OHM EW NTEP III 3 S IP67
30779 Load Cell,SPT RL1380-60kg 60kg 10ft 2mV/V 350 OHM EW NTEP III 3S SST IP67
