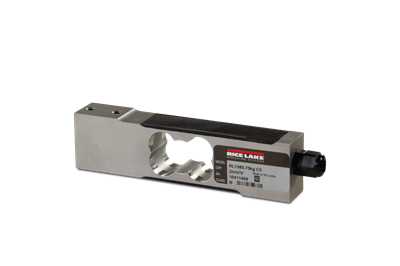

Rice Lake RL1385 Stainless Steel, Single-Point Load Cell

$0.00

The Rice Lake RL1385 Stainless Steel, Single-Point Load Cell is designed for direct mounting of a weighing platform, hanging scales and other low-capacity beam applications.

Download product PDF
Categories: ,

Specifications

Full Scale Output:
2.0 mV/V

Output Resistance:
330 ? 25 ohm

Input Resistance:
390 ? 20 ohm

Material/Finish:
Stainless steel

Temperature:
Operating range
0? F to 150? F/-18? C to 65? C

Safe Overload:
200% full scale

Rated Excitation:
5 VDC (15 V maximum)

Combined Error:
0.02% Full scale

Insulation Resistance:
5,000 megohms

Seal Type:
Environmentally sealed, IP67

Cable Length:
3.1 m (10 ft)

Cable Diameter:
0.196 polyurethane jacket

Cable Color Code:
Green………………….+ Excitation
Black…………………..? Excitation
White …………………..+ Signal
Red ……………………..? Signal
Yellow …………………. Shield

Max Platform Size:
18 in x 18 in

Warranty:
Two-year limited warranty

Approvals:
FM
NTEP

Models

41405 Load Cell,SPT RL1385- 10kg 3M 2mV/V 350 OHM NTEP III 3 S SST IP67
41233 Load Cell,SPT RL1385-15kg 3M 2mV/V 350 OHM NTEP III 3 S SST IP67
41234 Load Cell,SPT RL1385-30kg 3M 2mV/V 350 OHM NTEP III 3 S SST IP67
41235 Load Cell,SPT RL1385-50kg 3M 2mV/V 350 OHM NTEP III 3 S SST IP67
41236 Load Cell,SPT RL1385-75kg 3M 2mV/V 350 OHM NTEP III 3 S SST IP67
