Rice Lake RL1521A Aluminum, Single-Point Load Cell

$0.00

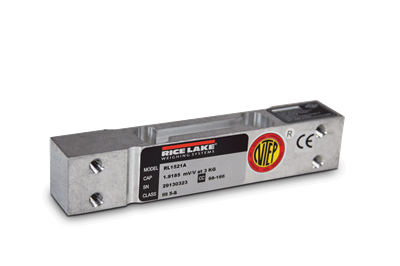

The Rice Lake RL1521A is a very low-profile, single-point load cell designed for electronic bench scales and platform scales where only one load cell is used.

Download product PDF
Categories: ,

Specifications

Full Scale Output:
2.0 mV/V

Output Resistance:
350 (? 3) ohm

Input Resistance:
410 (? 15) ohm

Material/Finish:
Aluminum

Temperature:
Compensated range
14?F to 104?F/-10?C to 40?C
Operating range
0? F to 150? F/-18? C to 65? C

Safe Overload:
150% full scale

Rated Excitation:
5-10 VDC (15 V maximum)

Total Error:
0.03% full scale

Insulation Resistance:
2,000 megohms

Seal Type:
Environmentally sealed, IP66

Cable Length:
1.50 ft (0.5 m)
10 ft (3.1 m)

Cable Diameter:
0.14 PVC jacket

Cable Color Code:
Green………………….+ Excitation
Black…………………..? Excitation
Red……………………..+ Signal
White……………………? Signal

Max Platform Size:
13.75 in x 13.75 in

Warranty:
Two-year limited warranty

Approvals:
cFMus
NTEP

Models

50620 Load Cell,SPT RL1521A-3kg 3 KG 1.5ft 2mV/V 350 OHM NTEP III 5S AL IP66 FM
50619 Load Cell,SPT RL1521A-5kg 5 KG 1.5ft 2mV/V 350 OHM NTEP III 5S AL IP66 FM
50621 Load Cell,SPT RL1521A-7KG 7 KG 1.5ft 2mV/V 350 OHM NTEP III 5S AL IP66 FM
50622 Load Cell,SPT RL1521A- 10KG 10KG 1.5ft 2mV/V 350 OHM NTEP III 5S AL IP66 FM
50623 Load Cell,SPT RL1521A- 15KG 15KG 1.5ft 2mV/V 350 OHM NTEP III 5S AL IP66 FM
50624 Load Cell,SPT RL1521A- 20KG 20KG 1.5ft 2mV/V 350 OHM NTEP III 5S AL IP66 FM
50625 Load Cell,SPT RL1521A- 30KG 30KG 1.5ft 2mV/V 350 OHM NTEP III 5S AL IP66 FM
50626 Load Cell,SPT RL1521A- 35KG 1.5ft 2mV/V 350 OHM NTEP III 5S AL IP66 FM
