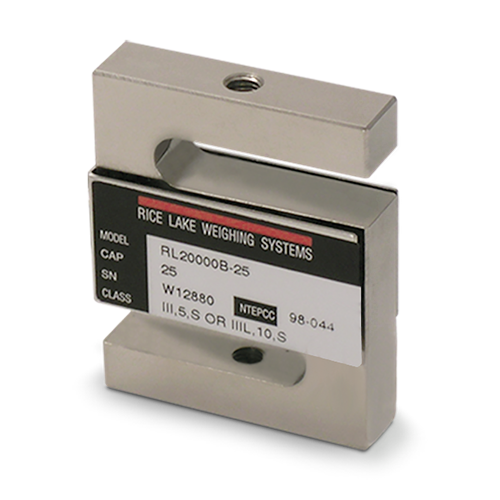

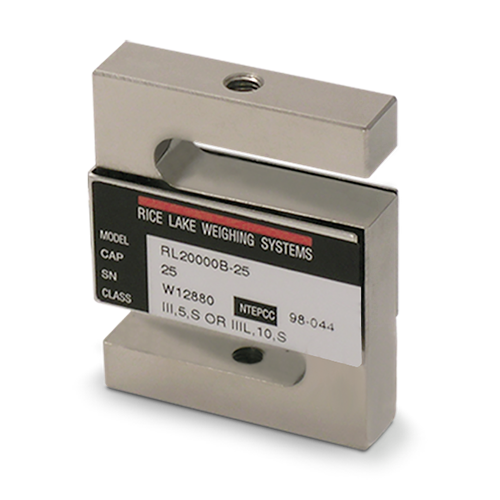

Rice Lake RL20000I Alloy Steel, S-Beam Load Cell
$0.00
The alloy steel, Rice Lake RL20000I S-beam load cell is ideally suited for scale conversions and general purpose weighing.
Download product PDF
Specifications
Full Scale Output:
3.0 mV/V
Output Resistance:
350 (? 3) ohm
Input Resistance:
385 (? 5) ohm
Material/Finish:
High-alloy steel, nickel plated
Temperature:
Compensated range:
14? F to 104? F/-10? C to 40? C
Operating range:
0? F to 150? F/-18? C to 65? C
Seal Type:
Environmentally sealed, IP67
Safe Overload:
150% full scale
Rated Excitation:
5-10 VDC (15 V maximum)
Combined Error:
0.02%
full scale
Insulation Resistance:
5,000 megohms
Cable Length:
20 ft (6.1 m)
Cable Diameter:
0.200 polyurethane jacket
Cable Color Code:
Red………………….+ Excitation
Black…………………..? Excitation
Green …………………….+ Signal
White ………………….? Signal
Warranty:
Two-year limited warranty
Approvals:
cFMus
us
NTEP Certified
Models
21428 |
Load Cell,SBM RL20000I-25 25lb 20ft 3mv/v 350 Ohm NTEP III 5S/IIIL 10S WW FM IP67 |
|
|
21429 |
Load Cell,SBM RL20000I-50 50lb 20ft 3mv/v 350 Ohm NTEP III 5S/IIIL 10S WW FM IP67 |
|
|
21430 |
Load Cell,SBM RL20000I-75 75lb 20ft 3mv/v 350 Ohm NTEP III 5S/IIIL 10S WW FM IP67 |
|
|
21431 |
Load Cell,SBM RL20000I- 100 100lb 20ft 3mv/v 350 Ohm NTEP III 5S/IIIL 10S WW FM IP67 |
|
|
21432 |
Load Cell,SBM RL20000I- 150 150lb 20ft 3mv/v 350 Ohm NTEP III 5S/IIIL 10S WW FM IP67 |
|
|
21433 |
Load Cell,SBM RL20000I- 200 200lb 20ft 3mv/v 350 Ohm NTEP III 5S/IIIL 10S WW FM IP67 |
|
|
21434 |
Load Cell,SBM RL20000I- 250 250lb 20ft 3mv/v 350 Ohm NTEP III 5S/IIIL 10S WW FM IP67 |
|
|
21435 |
Load Cell,SBM RL20000I- 300 300lb 20ft 3mv/v 350 Ohm NTEP III 5S/IIIL 10S WW FM IP67 |
|
|
21436 |
Load Cell,SBM RL20000I- 500 500lb 20ft 3mv/v 350 Ohm NTEP III 5S/IIIL 10S WW FM IP67 |
|
|
21437 |
Load Cell,SBM RL20000I- 750 750lb 20ft 3mv/v 350 Ohm NTEP III 5S/IIIL 10S WW FM IP67 |
|
|
21438 |
Load Cell,SBM RL20000I-1K 1000lb 20ft 3mv/v 350 Ohm NTEP III 5S/IIIL 10S WW FM IP67 |
|
|
21439 |
Load Cell,SBM RL20000I- 1.5K 1500lb 20ft 3mv/v 350 Ohm NTEP III 5S/IIIL 10S WW FM IP67 |
|
|
21440 |
Load Cell,SBM RL20000I-2K 2000lb 20ft 3mv/v 350 Ohm NTEP III 5S/IIIL 10S WW FM IP67 |
|
|
21441 |
Load Cell,SBM RL20000I- 2.5K 2500lb 20ft 3mv/v 350 Ohm NTEP III 5S/IIIL 10S WW FM IP67 |
|
|
21442 |
Load Cell,SBM RL20000I-3K 3000lb 20ft 3mv/v 350 Ohm NTEP III 5S/IIIL 10S WW FM IP67 |
|
|
21443 |
Load Cell,SBM RL20000I-5K 5000lb 20ft 3mv/v 350 Ohm NTEP III 5S/IIIL 10S WW FM IP67 |
|
|
21444 |
Load Cell,SBM RL20000I- 10K 10,000lb 20ft 3mv/v 350 Ohm NTEP III 5S/IIIL 10S WW FM IP67 |
|
|
21445 |
Load Cell,SBM RL20000I- 15K 15,000lb 20ft 3mv/v 350 Ohm NTEP III 5S/IIIL 10S WW FM IP67 |
|
|
|
Load Cell,SBM RL20000I- 20K 20,000lb 20ft 3mv/v 350 Ohm NTEP III 5S/IIIL 10S WW FM IP67 |
