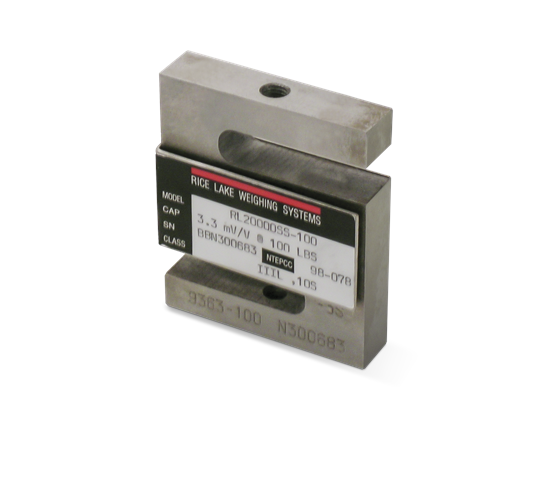

Rice Lake RL20000SS Stainless Steel, S-Beam Load Cell

$0.00

For suspended applications or mechanical scale conversions, the Rice Lake RL20000SS stainless steel S-beam load cell provides the additional protection of stainless necessary in dry, corrosive environments.



Download product PDF
Categories: ,

Specifications

Full Scale Output:
3.0(? 0.008) mV/V

Output Resistance:
350 (? 3.5) ohm

Input Resistance:
390 (? 15) ohm

Material/Finish:
Stainless steel

Temperature:
Compensated range
14?F to 104?F/-10?C to 40?C
Operating range
0?F to 150?F/-18?C to 65?C

Seal Type:
Environmentally sealed, IP67

Safe Overload:
150% full scale

Rated Excitation:
5-10 VDC (15 V maximum)

Nonlinearity:?0.03% full scale

Hysteresis:
0.03% full scale

Insulation Resistance:
5,000 megohms

Cable Length:
20ft (6.1m)

Cable Color Code:
Red………………….+ Excitation
Black………………..? Excitation
Green ……………….+ Signal
White ……………? Signal

Warranty:
Two-year limited warranty

Approvals:
cFMus
us
NTEP Certified

Models

46511 Load Cell,SBM RL20000SS- 100lb 20ft 3mV/V 350 OHM WW SST NTEP IIIL 10S IP67
46503 Load Cell,SBM RL20000SS- 250lb 250lb 20ft 3mV/V 350 OHM WW SST NTEP IIIL 10S IP67
181826 Load Cell, SBM RL20000SS 300lb 20ft 3mv/v 350 Ohm WW SST NTEP IIIL 10S IP67
46504 Load Cell,SBM RL20000SS- 500lb 20ft 3mV/V 350 OHM WW SST NTEP IIIL 10S IP67
46505 Load Cell,SBM RL20000SS- 750lb 20ft 3mV/V 350 OHM WW SST NTEP IIIL 10S IP67
46506 Load Cell,SBM RL20000SS- 1K 1000lb 20ft 3mV/V 350 OHM WW SST NTEP IIIL 10S IP67
46507 Load Cell,SBM RL20000SS- 2.5K 2500lb 20ft 3mV/V 350 OHM WW SST NTEP IIIL 10S IP67
46508 Load Cell,SBM RL20000SS- 3K 3000lb 20ft 3mV/V 350 OHM WW SST NTEP IIIL 10S IP67
46509 Load Cell,SBM RL20000SS- 5K 5000lb 20ft 3mV/V 350 OHM WW SST NTEP IIIL 10S IP67
46510 Load Cell,SBM RL20000SS- 10K 10000lb 20ft 3mV/V 350 OHM WW SST NTEP IIIL 10S IP67
