Home / Load Cells / Search By Type of Load Cell / S Type / Rice Lake RL20000ST Stainless Steel S-Beam Load Cell

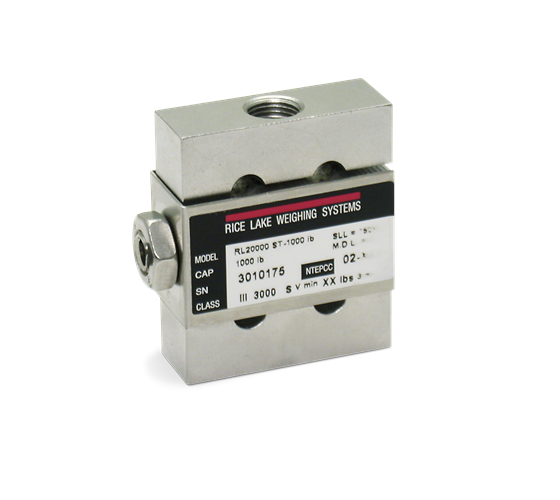

Rice Lake RL20000ST Stainless Steel S-Beam Load Cell $ 0.00
For suspended applications or mechanical scale conversions, the Rice Lake RL20000 ST S-beam stainless steel load cell provides the additional protection of stainless necessary in dry, corrosive environments.
Download product PDF
Specifications
Full Scale Output:
3.0 mV/V
Output Resistance:
350 (?3.5) ohm
Input Resistance:
430 (? 60) ohm
Material/Finish:
Stainless steel
Seal Type:
Environmentally sealed, IP67
Safe Overload:
150% full scale
Rated Excitation:
5-10 VDC (15 V maximum)
Nonlinearity:
0.03% full scale
Hysteresis:
0.03% full scale
Insulation Resistance:
5,000 megohms
Temperature:
Compensated range
14? F to 104? F/-10? C to 40? C
Operating range
0? F to 150? F/-18? C to 65? C
Cable Length:
20 ft (6.1 m)
Cable Diameter:
0.190 polyurethane jacket
Cable Color Code:
Red ……………. + Excitation
Black ……………. ? Excitation
Green ……………. + Signal
White ……………. ? Signal
Warranty:
Two-year limited warranty
Approvals:
cFMusus
NTEP
Models
72741
Load Cell,SBM RL20000ST 50lb 20ft 3mV/v 350 OHM WW SST NTEP IIIL 10S FM IP67
72742
Load Cell,SBM RL20000ST 100lb 20ft 3mV/v 350 OHM WW SST NTEP IIIL 10S FM IP67
72743
Load Cell,SBM RL20000ST 200lb 20ft 3mV/v 350 OHM WW SST NTEP IIIL 10S FM IP67
72744
Load Cell,SBM RL20000ST 250lb 20ft 3mV/v 350 OHM WW SST NTEP IIIL 10S FM IP67
72745
Load Cell,SBM RL20000ST 300lb 20ft 3mV/v 350 OHM WW SST NTEP IIIL 10S FM IP67
72746
Load Cell,SBM RL20000ST 500lb 20ft 3mV/v 350 OHM WW SST NTEP IIIL 10S FM IP67
72747
Load Cell,SBM RL20000ST 750lb 20ft 3mV/v 350 OHM WW SST NTEP IIIL 10S FM IP67
72748
Load Cell,SBM RL20000ST 1,000lb 20ft 3mV/v 350 OHM WW SST NTEP IIIL 10S FM IP67
72749
Load Cell,SBM RL20000ST 1,500lb 20ft 3mV/v 350 OHM WW SST NTEP IIIL 10S FM IP67
72750
Load Cell,SBM RL20000ST 2,000lb 20ft 3mV/v 350 OHM WW SST NTEP IIIL 10S FM IP67
72751
Load Cell,SBM RL20000ST 2,500lb 20ft 3mV/v 350 OHM WW SST NTEP IIIL 10S FM IP67
72752
Load Cell,SBM RL20000ST 3,000lb 20ft 3mV/v 350 OHM WW SST NTEP IIIL 10S FM IP67
72753
Load Cell,SBM RL20000ST 5,000lb 20ft 3mV/v 350 OHM WW SST NTEP IIIL 10S FM IP67
