Rice Lake RL20001I Alloy Steel, S-Beam Load Cell

$0.00

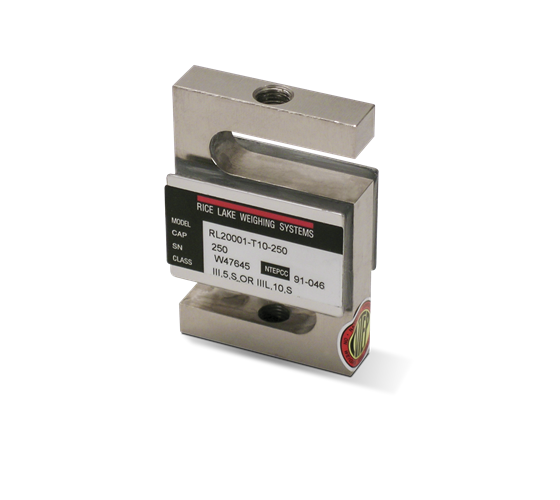

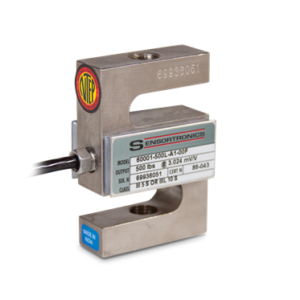

The Rice Lake RL20001I Alloy Steel, S-Beam Load Cell is an alloy steel, S-beam load cell. Capacities range from 250 to 20,000 pounds.

Download product PDF
Categories: ,

Specifications

Full Scale Output:
3.0 mV/V

Output Resistance:
350 (? 3) ohm

Input Resistance:
385 (? 5) ohm

Material/Finish:
High-alloy steel, nickel plated

Temperature:
Compensated range
14? F to 104? F/-10? C to 40? C
Operating range
0? F to 150? F/-18? C to 65? C

Seal Type:
Environmentally sealed, IP67

Safe Overload:
150% full scale

Rated Excitation:
5-10 VAC/DC (15 V maximum)

Nonlinearity:
0.03% full scale

Hysteresis:
0.02% Full scale

Insulation Resistance:
5,000 megohms

Cable Length:
20 ft (6.1 m)

Cable Diameter:?? ?
200 polyurethane jacket

Cable Color Code:
Red…………………….+ Excitation
Black…………………..? Excitation
Green …………………+ Signal
White ………………….? Signal

Warranty:
Two-year limited warranty

Approvals:
cFMusus
NTEP

Models

21402 Load Cell,SBM RL20001-T10 -250 250lb 20ft 3mv/v 350 Ohm NTEP III 5S/IIIL 10S FM WW IP67
21403 Load Cell,SBM RL20001-T10 -500 500lb 20ft 3mv/v 350 Ohm NTEP III 5S/IIIL 10S FM WW IP67
21404 Load Cell,SBM RL20001-T10 -750 750lb 20ft 3mv/v 350 Ohm NTEP III 5S/IIIL 10S FM WW IP67
21405 Load Cell,SBM RL20001-T10 -1K 1000lb 20ft 3mv/v 350 Ohm NTEP III 5S/IIIL 10S FM WW IP67
21406 Load Cell,SBM RL20001-T10 -1.5K 1500lb 20ft 3mv/v 350 Ohm NTEP III 5S/IIIL 10S FM WW IP67
21407 Load Cell,SBM RL20001-T10 -2K 2000lb 20ft 3mv/v 350 Ohm NTEP III 5S/IIIL 10S FM WW IP67
21408 Load Cell,SBM RL20001-T10 -2.5K 2500lb 20ft 3mv/v 350 Ohm NTEP III 5S/IIIL 10S FM WW IP67
21409 Load Cell,SBM RL20001-T10 -3K 3000lb 20ft 3mv/v 350 Ohm NTEP III 5S/IIIL 10S FM WW IP67
21410 Load Cell,SBM RL20001-T10 -5K 5000lb 20ft 3mv/v 350 Ohm NTEP III 5S/IIIL 10S FM WW IP67
21411 Load Cell,SBM RL20001-T10 -10K 10,000lb 20ft 3mv/v 350 Ohm NTEP III 5S/IIIL 10S FM WW IP67
21412 Load Cell,SBM RL20001-T10 -15K 15,000lb 20ft 3mv/v 350 Ohm NTEP III 5S/IIIL 10S FM WW IP67
21413 Load Cell,SBM RL20001-T10 -20K 20,000lb 20ft 3mv/v 350 Ohm NTEP III 5S/IIIL 10S FM WW IP67
