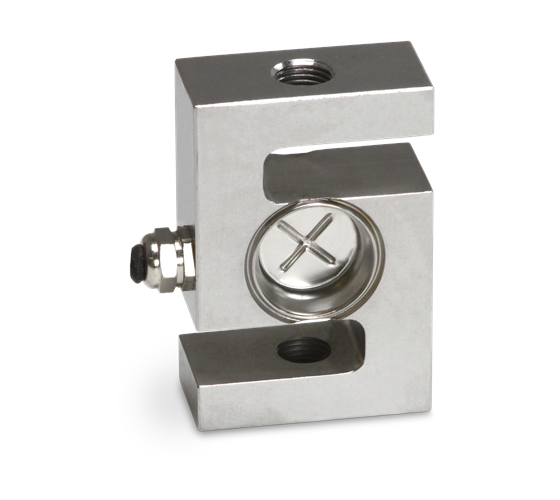

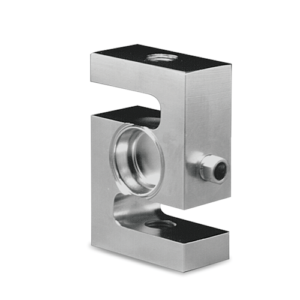

Rice Lake RL20001HE Stainless Steel, S-Beam Load Cell
$0.00
The Rice Lake RL20001HE is a full stainless, welded seal S-beam load cell available in capacities ranging from 500 to 10,000 lb (226.8 to 4535.9 kg).
Download product PDF
Specifications
Full Scale Output:
2.0 mV/V
Bridge Resistance:
350 ohm, nominal
Material/Finish:
Stainless steel
Safe Overload:
150% Full scale
Rated Excitation:
5-10 VDC (15 V maximum)
Temperature:
Compensated range
14?F to 104?F/-10?C to 40?C
Operating range
0?F to 150?F/-18?C to 65?C
Nonlinearity:
0.03% full scale
Hysteresis:
0.02% full scale
Insulation Resistance:
5,000 megohms
Seal Type:
Welded-seal, IP68
Cable Length:
20 ft (6.1m)
Cable Diameter:
0.200 polyurethane jacket
Cable Color Code:
Red………………….+ Excitation
Black………………..? Excitation
Green ………………+ Signal
White ………………..? Signal
Warranty:
Two-year limited warranty
Approvals:
cFMusus
NTEP
Models
| 46469 |
Load Cell,SBM RL20001HE- 500 500lb 20ft 2mV/V 350 Ohm WW SST WS NTEP III 5S/IIIL 10S IP68 |
|
|
| 46470 |
Load Cell,SBM RL20001HE- 750 750lb 20ft 2mV/V 350 Ohm WW SST WS NTEP III 5S/IIIL 10S IP68 |
|
|
| 46471 |
Load Cell,SBM RL20001HE- 1K 1000lb 20ft 2mV/V 350 Ohm WW SST WS NTEP III 5S/IIIL 10S IP68 |
|
|
| 46472 |
Load Cell,SBM RL20001HE- 1.5K 1500lb 20ft 2mV/V 350 Ohm WW SST WS NTEP III 5S/IIIL 10S IP68 |
|
|
| 46473 |
Load Cell,SBM RL20001HE- 2K 2000lb 20ft 2mV/V 350 Ohm WW SST WS NTEP III 5S/IIIL 10S IP68 |
|
|
| 46474 |
Load Cell,SBM RL20001HE- 2.5K 2500lb 20ft 2mV/V 350 Ohm WW SST WS NTEP III 5S/IIIL 10S IP68 |
|
|
| 46475 |
Load Cell,SBM RL20001HE- 3K 3000lb 20ft 2mV/V 350 Ohm WW SST WS NTEP III 5S/IIIL 10S IP68 |
|
|
| 46476 |
Load Cell,SMB RL20001HE- 5K 5000lb 20ft 2mV/V 350 Ohm WW SST WS NTEP III 5S/IIIL IP68 |
