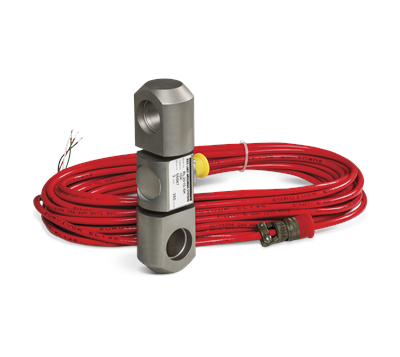

Name: Rice Lake RL2010 Stainless Steel, Tension Link Load Cell
SKU: 2115
Availability: InStock

Specifications

Full Scale Output:
3.0 (? 0.1%) mV/V

Bridge Resistance:
350 ohm, nominal

Material/Finish:
Stainless steel

Temperature:
Operating range
0? F to 150? F/-18? C to 65? C

Safe Overload:
150% full scale

Rated Excitation:
5-10 VDC (15 V maximum)

Linearity:
0.05% full scale

Repeatability:
0.03% full scale

Insulation Resistance:
5,000 megohms

Seal Type:
Environmentally sealed, IP67

Cable Length:
40 ft polyurethane jacket with connection

Cable Diameter:
0.25 in

Cable Color Code:
Green………………….+ Excitation
Black…………………..? Excitation
White ………………….+ Signal
Red …………………….? Signal

Warranty:
Two-year limited warranty

Approvals:
FM

Models

117731	Load Cell,SBM RL2010-5K 5000lb 40ft 3mv/v 350 Ohm EW IP67 SST Tension Link
117732	Load Cell,SBM RL2010-10K 10,000lb 40ft 3mv/v 350 Ohm EW IP67 SST Tension Link
117733	Load Cell,SBM RL2010-25K 25,000lb 40ft 3mv/v 350 Ohm EW IP67 SST Tension Link
117735	Load Cell,SBM RL2010-50K 50,000lb 40ft 3mv/v 350 Ohm EW IP67 SST Tension Link
117736	Load Cell,SBM RL2010-75K 75,000lb 40ft 3mv/v 350 Ohm EW IP67 SST Tension Link
117737	Load Cell,SBM RL2010-100K 100,000lb 40ft 3mv/v 350 Ohm EW IP67 SST Tension Link
117738	Load Cell,SBM RL2010-150K 150,000lb 40ft 3mv/v 350 Ohm EW IP67 SST Tension Link
117739	Load Cell,SBM RL2010-200K 200,000lb 40ft 3mv/v 350 Ohm EW IP67 SST Tension Link
117740	Load Cell,SBM RL2010-250K 250,000lb 40ft 3mv/v 350 Ohm EW IP67 SST Tension Link
117741	Load Cell,SBM RL2010-300K 300,000lb 40ft 3mv/v 350 Ohm EW IP67 SST Tension Link
117742	Load Cell,SBM RL2010-500K 500,000lb 40ft 3mv/v 350 Ohm EW IP67 SST Tension Link
