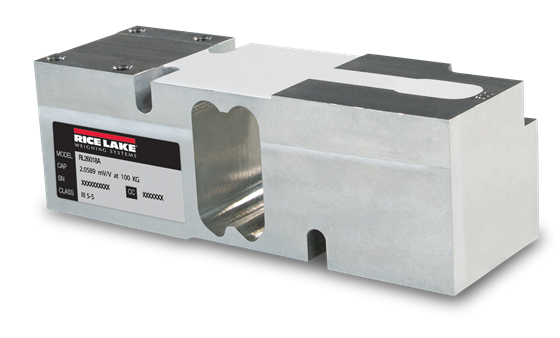

Rice Lake RL26018A Aluminum, Single Point Load Cell

$0.00

The Rice Lake RL26018A Aluminum, Single Point Load Cell is ideal for bench scales and comes in capacities from 50 to 635 kilograms. It is NTEP and FM approved and is environmentally sealed to IP66. Complete with 10 feet of cable.able.

Download product PDF
Categories: ,

Specifications

Full Scale Output:
2.0 mV/V nominal

Output Resistance:
350 (? 3) ohm

Input Resistance:
415 (? 15) ohm

Material/Finish:
Anodized aluminum

Temperature:
Compensated range
14?F to 104?F (-10?C to 40?C)
Operating range
0?F to 150?F (-18?C to 65?C)



Safe Overload:
150% of full scale

Rated Excitation:
5-10 VDC (15 VDC Max)

Insulation Resistance:
>5,000 megohms

Seal Type:
Environmentally sealed, IP67

Cable Length:
3.1 m (10 ft)



Cable Length:
3.1 m (10 ft)

Cable Color Code:
Green + Excitation
Black ? Excitation
Red + Signal
White ? Signal
Blue +Sense
Yellow -Sense

Warranty:
Two-year limited warranty

Approvals:
cFMusus
NTEP



Models

188682 Load Cell,SPT RL26018A- 50kg 10ft 2mv/v 350 Ohm NTEP III 5 S AL FM
188683 Load Cell,SPT RL26018A- 75kg 10ft 2mv/v 350 Ohm NTEP III 5 S AL FM
188684 Load Cell,SPT RL26018A- 100kg 10ft 2mv/v 350 Ohm NTEP III 5 S AL FM
188685 Load Cell,SPT RL26018A- 150kg 10ft 2mv/v 350 Ohm NTEP III 5 S AL FM
188686 Load Cell,SPT RL26018A- 200kg 10ft 2mv/v 350 Ohm NTEP III 5 S AL FM
188687 Load Cell,SPT RL26018A- 250kg 10ft 2mv/v 350 Ohm NTEP III 5 S AL FM
188688 Load Cell,SPT RL26018A- 300kg 10ft 2mv/v 350 Ohm NTEP III 5 S AL FM
188689 Load Cell,SPT RL26018A- 500kg 10ft 2mv/v 350 Ohm NTEP III 5 S AL FM
188690 Load Cell,SPT RL26018A- 635kg 10ft 2mv/v 350 Ohm NTEP III 5 S AL FM
