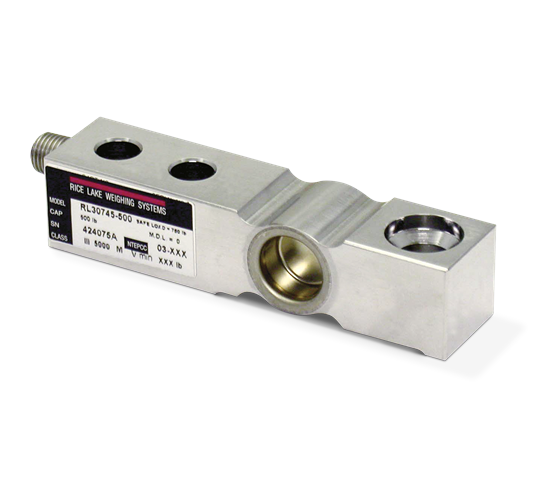

Rice Lake RL30745 Stainless Steel, Single-Ended Beam Load Cell

The Rice Lake RL30745 Stainless Steel, Single-Ended Beam Load Cell provides excellent protection against corrosive and washdown environments.

Unfortunately this product has been DISCONTINUED. For similar products click here.

Specifications

Full Scale Output:
2.0 mV/V, ?0.002 mV/V

Bridge Resistance:
350 ohm, nominal

Material/Finish:
Stainless steel

Temperature:
Compensated range
14?F to 104?F/-10?C to 40?C
Operating range
0? F to 150? F/-18? C to 65? C

Safe Overload:
150% full scale

Safe Sideload:
100% full scale

Rated Excitation:
5-10 VDC (15 V maximum)

Combined Error:
0.03%

Non-repeatability:
0.01% full scale

Insulation Resistance:
5,000 megohms

Seal Type:
Welded-seal, IP67

Cable Length:
30 ft (9.1 m) or
15 ft (4.6 m)

Cable Diameter:
0.190 polyurethane jacket

Deflection at Capacity:
500 lb-2,500 lb=0.010 in (0.254 mm)
5,000 lb-10,000 lb=0.012 in (0.3048 mm)

Cable Color Code:
Green………………….+ Excitation
Black…………………..? Excitation
White ………………….+ Signal
Red ……………………? Signal
Yellow …………………. Shield

Warranty:
Two-year limited warranty

Approvals:
NTEP Approved
FM

Models

101091 Load Cell,SEB RL30745-500 500lb 15ft 2mv/v 350 Ohm NTEP III 3S/5M FM EW IP67 SST WS
101092 Load Cell,SEB RL30745- 1.25K 1250lb 15ft 2mv/v 350 Ohm NTEP III 3S/5M FM EW IP67 SST WS
101093 Load Cell,SEB RL30745- 2.5K 2500lb 15ft 2mv/v 350 Ohm NTEP III 3S/5M FM EW IP67 SST WS
101094 Load Cell,SEB RL30745-5K 5000lb 15ft 2mv/v 350 Ohm NTEP III 3S/5M FM EW IP67 SST WS
101095 Load Cell,SEB RL30745-10K 10,000lb 15ft 2mv/v 350 Ohm NTEP III 3S/5M FM EW IP67 SST WS
