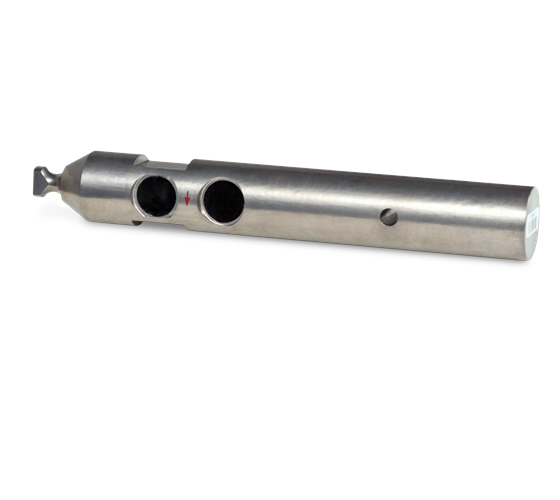

Rice Lake RL32011WB-L, Single-Ended Beam Load Cell

$0.00

The Legal for Trade, Rice Lake RL32011WB-L load cell is Rice Lake’s direct link-style replacement for the Avery Weigh-Tronix Weigh Bar, improved upon with stainless steel construction and an IP67 rating.

Download product PDF
Categories: ,

Specifications

Full Scale Output:
2.0 ? 0.1%) mV/V

Output Resistance:
350 (? 3) ohm

Input Resistance:
385 (? 10) ohm

Material/Finish:
Stainless steel

Temperature:
Compensated range
14? F to 104? F/-10? C to 40? C
Operating range
0? F to 150? F/-18? C to 65? C

Safe Overload:
150% full scale

Safe Sideload:
100% full scale

Rated Excitation:
5-10 VDC

Combined Error:
0.02% full scale

Non-Repeatability:
? 0.01% full scale

Insulation Resistance:
5,000 megaohms

Cable Color Code:
Green………………….+ Excitation
Black…………………..? Excitation
White ………………….+ Signal
Red ……………………? Signal

Seal Type:
Potted, IP67

Cable Length:
20 ft (6.1 m)

Cable Diameter:
0.190 polyurethane jacket

Warranty:
Two-year limited warranty

Approvals:
FM

Models

119788 Load Cell,SEB RL32011WB-L 1.25k 1250lb 20ft 2mv/v 350 Ohm SST EW NTEP III 5 M IP67 Link
119789 Load Cell,SEB RL32011WB-L 2.5k 2500lb 20ft 2mv/v 350 Ohm NTEP III 5M EW IP67 SST Link
119790 Load Cell,SEB RL32011WB-L 5k 5000lb 20ft 2mv/v 350 Ohm SST EW NTEP III 5 M IP67 Link
119791 Load Cell,SEB RL32011WB-L 10k 10000lb 20ft 2mv/v 350 Ohm SST EW NTEP III 5 M IP67 Link
