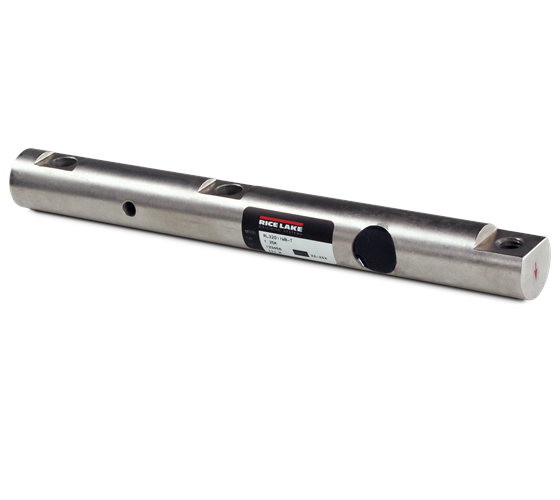

Rice Lake RL32011WB-T, Single-Ended Beam Load Cell

$0.00

Legal for Trade and FM approved, the Rice Lake RL32011WB-T single-ended beam load cell, used in many floor scale models, is a direct replacement for the threaded style Avery Weigh-Tronix Weigh Bar.

Download product PDF
Categories: ,

Specifications

Full Scale Output:
2.0 (? 0.1%) mV/V

Output Resistance:
350 (? 3) ohm

Input Resistance:
385 (? 10) ohm

Material/Finish:
Stainless steel

Temperature:
Compensated range
14?F to 104?F/-10?C to 40?C
Operating range
0? F to 150? F/-18? C to 65? C

Safe Overload:
150% full scale

Safe Sideload:
100% full scale

?Rated Excitation:
5-10 VDC

Combined Error:
0.02% full scale

Non-Repeatability:
? 0.01% full scale

Insulation Resistance:
5,000 megaohms

Cable Color Code:
Green…………………+ Excitation
Black………………….? Excitation
White ………………..+ Signal
Red ………………….? Signal

Seal Type:
Environmentally sealed, IP67

Cable Length:
20 ft (6.1 m)

Cable Diameter:
0.190 polyurethane jacket

Warranty:
Two-year limited warranty

Approvals:
NTEP

Models

119796 Load Cell,SEB RL32011WB-T 1.25k 1250lb 20ft 2mv/v 350 Ohm SST EW NTEP III 5 M IP67 Threaded
119797 Load Cell,SEB RL32011WB-T 2.5k 2500lb 20ft 2mv/v 350 Ohm SST EW NTEP III 5 M IP67 Threaded
