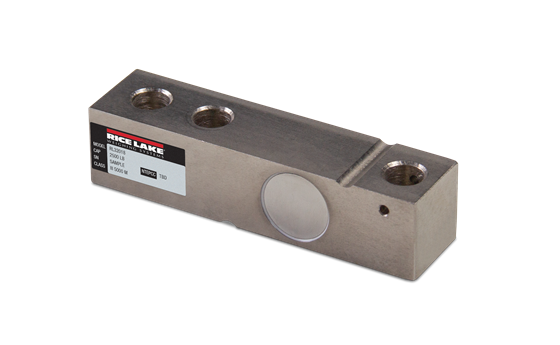

Rice Lake RL32018 Alloy Steel, Single-Ended Beam

$0.00

The Rice Lake RL32018 Alloy Steel, Single-Ended Beam is an alloy steel single ended beam cell offered from 250 to 20,000 pounds. Each load cell has 20 feet of cable and is FM approved and NTEP approved from 1,000 to 10,000 pounds.

Download product PDF
Categories: ,

Specifications

Full Scale Output:
3.0 mV/V

Output Resistance:
350 (? 3) ohm

Input Resistance:
400 (? 20) ohm

Material/Finish:
Alloy steel, nickel plated

Temperature:
Compensated range:-14? F to 104? F/-10? C to 40? C
Operating range: -22? F to 158? F/-30? C to 70? C



Seal Type:
Environmentally sealed, IP66

Safe Overload:
150% full scale

Safe Sideload:
100% full scale

Rated Excitation:
10 VDC (15 V maximum)

Combined Error:
0.017% full scale

Insulation Resistance:
>5,000 megohms



Cable Length:
20 ft (6.1 m)

Cable Color Code:
Red + Excitation
Black ? Excitation
Green + Signal
White ? Signal

Warranty:
Two-year limited warranty

Approvals:
cFMusus
NTEP

Models



189150 Load Cell,SEB RL32018- 250lb 20ft 3mv/v 350 Ohm Alloy FM WW IP66
189151 Load Cell,SEB RL32018- 500lb 20ft 3mv/v 350 Ohm Alloy FM WW IP66
189152 Load Cell,SEB RL32018- 1000lb 20ft 3mv/v 350 Ohm NTEP III 5M Alloy FM WW IP66
191732 Load Cell, SEB RL32018 1500lb 20ft 3mv/v 350 Ohm NTEP III 5M Alloy FM WW IP66
189153 Load Cell,SEB RL32018- 2000lb 20ft 3mv/v 350 Ohm NTEP III 5M Alloy FM WW IP66
189154 Load Cell,SEB RL32018- 2500lb 20ft 3mv/v 350 Ohm NTEP III 5M Alloy FM WW IP66
189156 Load Cell,SEB RL32018- 4000lb 20ft 3mv/v 350 Ohm NTEP III 5M Alloy FM WW IP66
189157 Load Cell,SEB RL32018- 5000LBSE 20ft 3mv/v 350 Ohm NTEP III 5M Alloy FM WW IP66
189158 Load Cell,SEB RL32018- 5000lbLE 20ft 3mv/v 350 Ohm NTEP III 5M Alloy FM WW IP66
189159 Load Cell,SEB RL32018- 10000lb 20ft 3mv/v 350 Ohm NTEP III 5M Alloy FM WW IP66
189160 Load Cell,SEB RL32018- 15000lb 20ft 3mv/v 350 Ohm Alloy FM WW IP66
189161 Load Cell,SEB RL32018- 20000lb 20ft 3mv/v 350 Ohm Alloy FM WW IP66
